2.3 Routing the Cables in the Housing and
Making Connections
Start with step 1 if you are using a network and a secondary cable.
If you are only using a network cable, go to step 4.
1. Prepare the secondary cable:

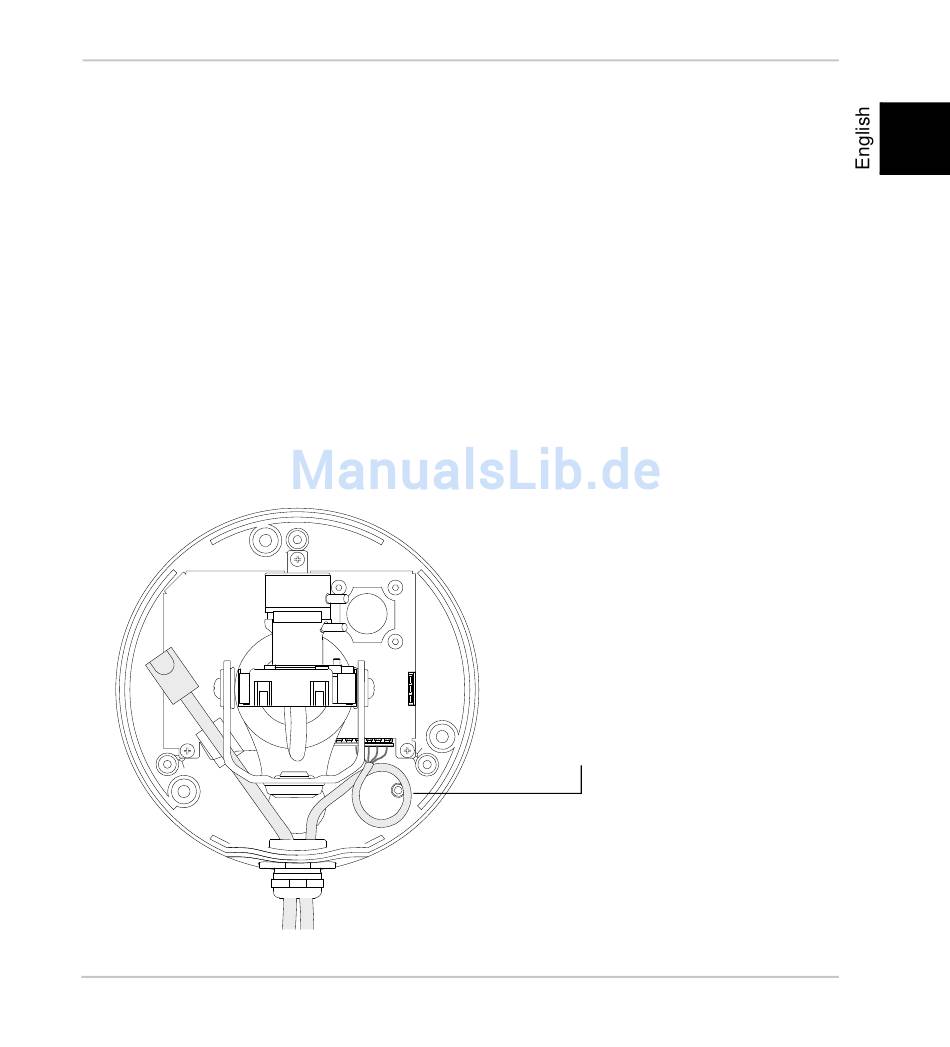

If you will only be making connections to the main terminal block, strip about
5 cm (2 inches) off of the cable's outer sheath and loop the cable as shown
below.
If you will be making connections to both the main terminal block and to the
RS-485 terminal block, strip about 13 cm off of the cable's outer sheath and
route the wires directly to the terminal blocks.
Basler IP Fixed Dome Cameras
Installation Guide
Looped
Secondary
Cable
