The assignments for the wire fixing holes in the main terminal block are as
shown below and explained in Table 1 on page 36.
Present on outdoor
dome cameras only
Release
Tabs
Wire
Fixing
Holes

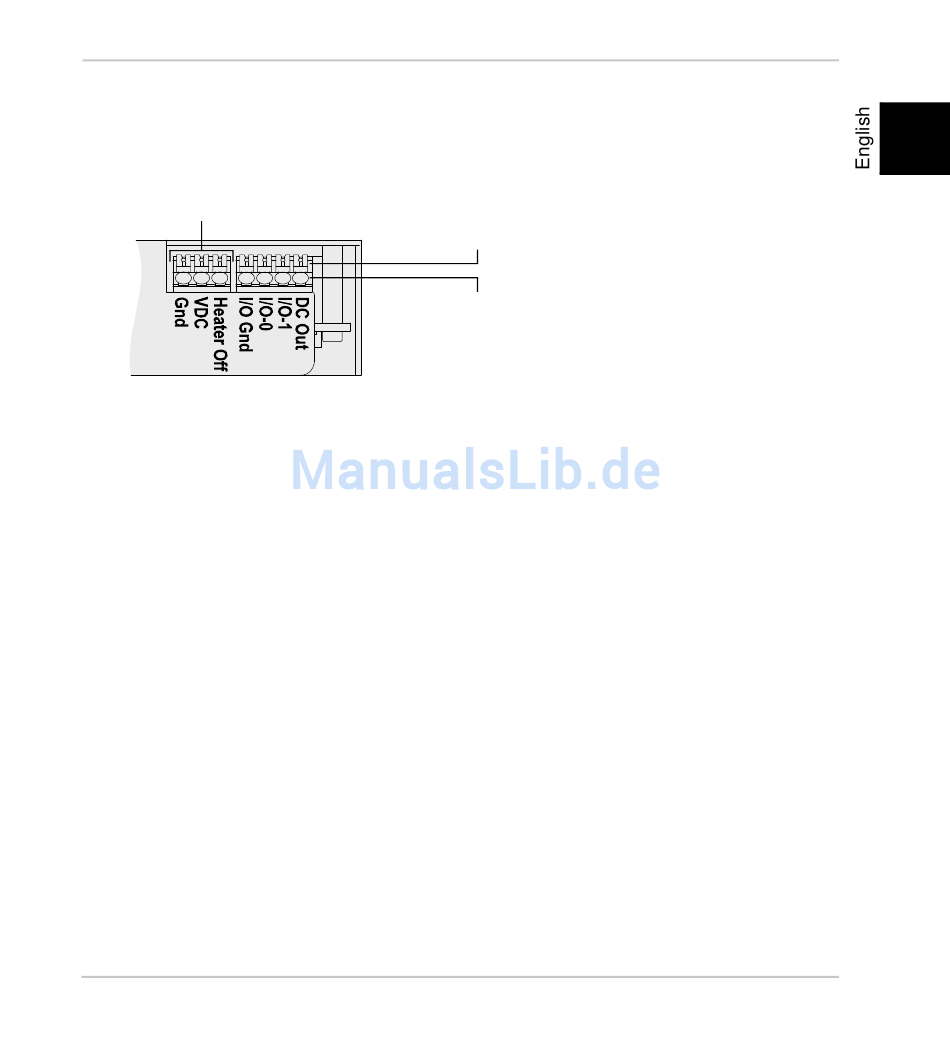

Fig. 3: Main Terminal Block
The main terminal block is a push-in type of connector. Either solid or stranded
wires can be inserted into the wire fixing holes in the terminal block. A wire can
be removed from a fixing hole by pressing the release tab above the hole and
pulling on the wire.
Wires inserted into the fixing holes must have a minimum cross section of 0.2
2 2
mm (AWG 24) and a maximum cross section of 1.5 mm (AWG 16).
8 mm (5/16") of insulation should be stripped from the end of a wire before it
is inserted into a fixing hole.
We recommend that connections to the I/O ports be made with shielded cable
and that the cable shields be connected to ground. If you are unable to connect
the cable shields to ground or if you use unshielded cable, we recommend that
you install a ferrite bead on each cable near to the camera to minimize
electromagnetic interference.
