Gripping range adjustment
5.2

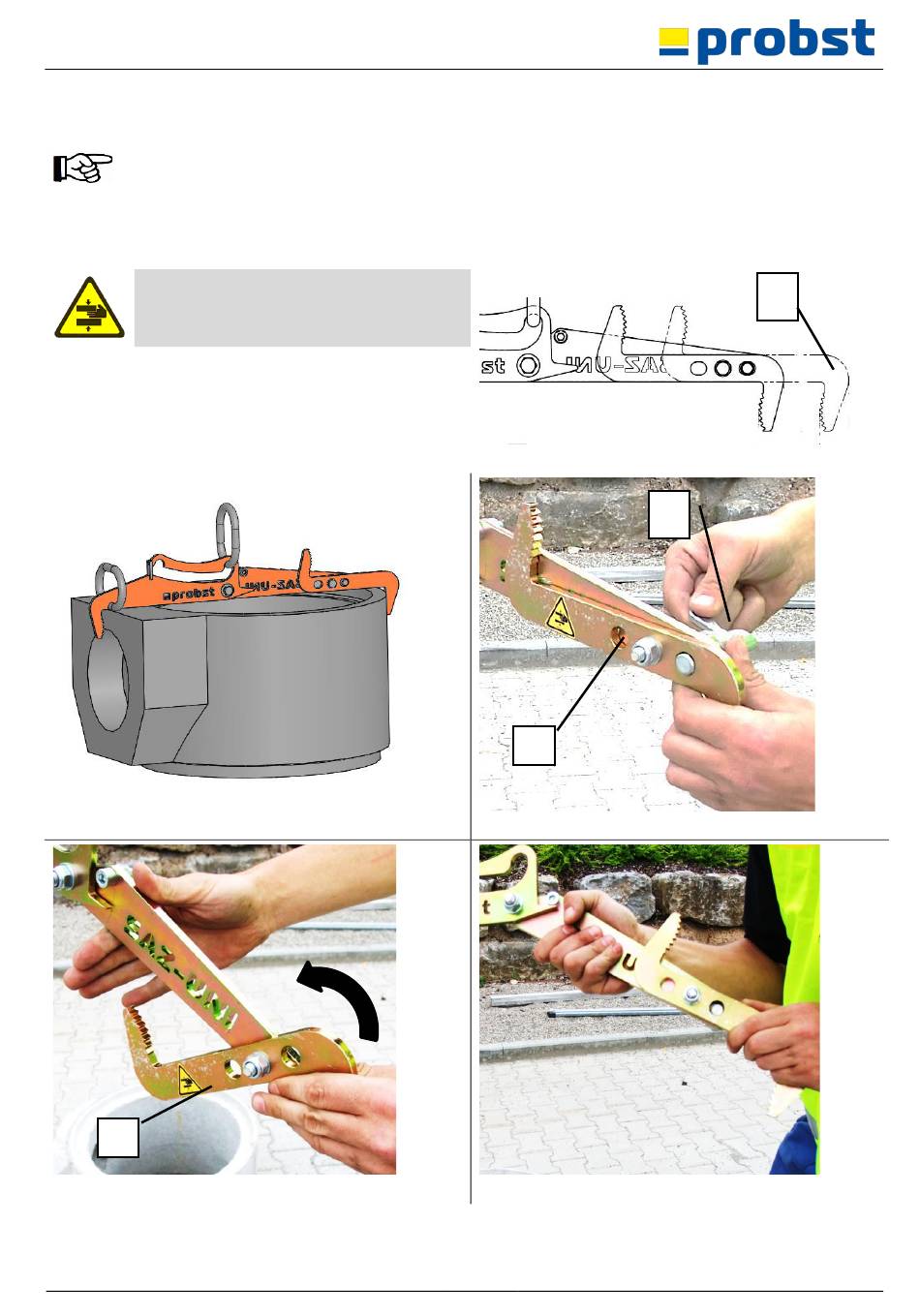

Gripping range for socket parts (NW 625)

When gripping socket parts (Fig. 6), the movable gripper arm (1) .must be rotated by 180°.
Increase the gripping range from 550 mm to 625 mm (gripping range (B) see Fig. 5).
To do this, pull out the spring latch (2) a little and turn it at the same time until the gripper arm can be
moved. The gripper arm (1) must then be locked by engaging the spring latch (2) again.
Be careful when adjusting the gripping
range. Risk of injury to the hands!
Fig. 6
1
Fig. 8
54000035
Fig. 5
1
Fig. 7
Fig. 9
