Adjustments
5.2

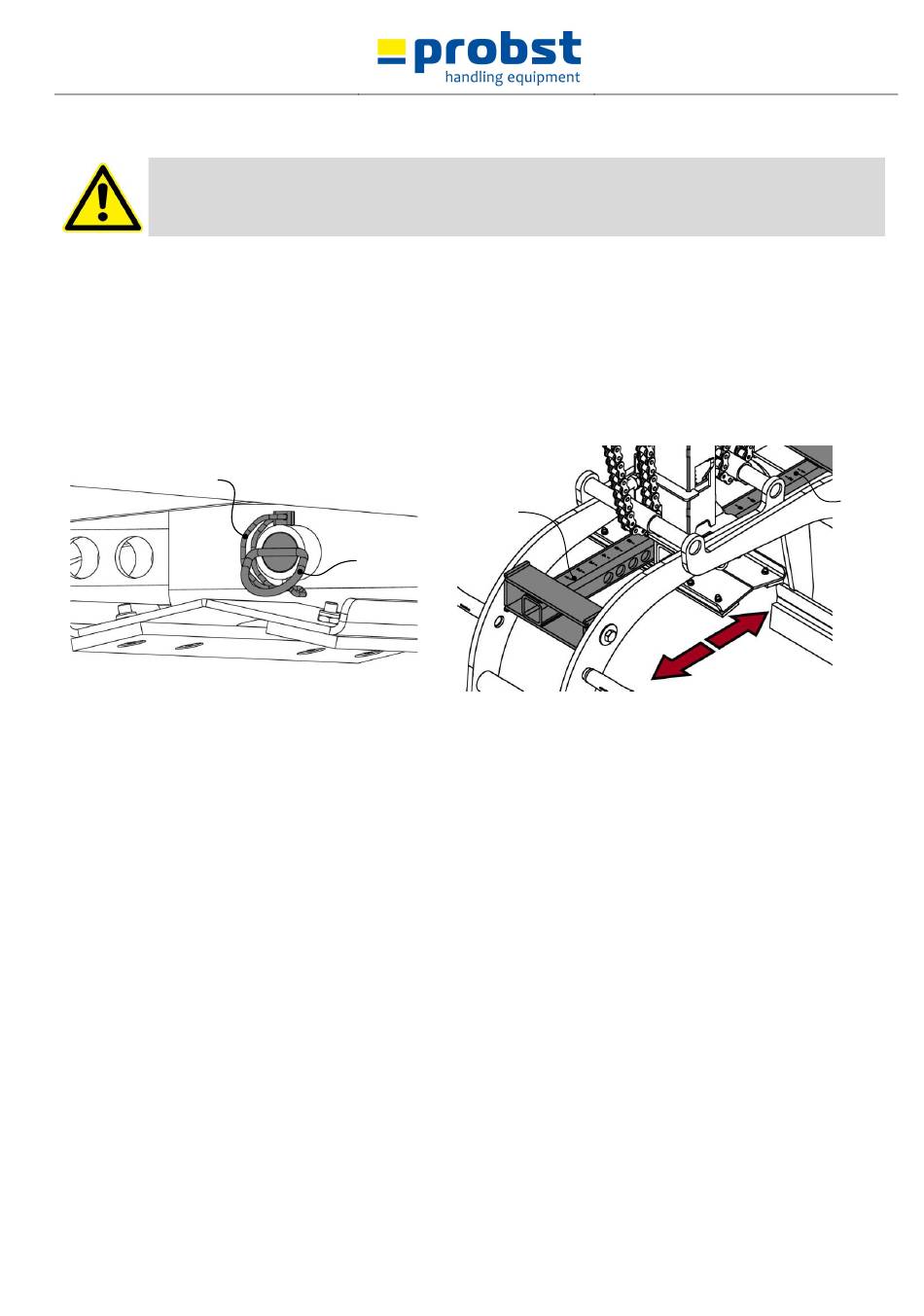

Adjusting the gripping range

The gripping range adjustment must be set equally on both sides of the device. Otherwise there is a danger
of the gripping material slipping off. Risk of accident!
The adjustment of the gripping range to the corresponding pipe outside diameter is done as follows:
1. Measuring the outer diameter of the pipe
2. Remove the cotter pin (A) (see Fig. 2) from the lower part
3. Pull out the socket pin (B)
4. Move the side parts (C) (see Fig. 3) on both sides until the grab range for the material to be grabbed (concrete
pipe) is set. (Fig. 3)
5. Replace the socket pin (B)
6. Reassemble the pipe-folding pin (A)
A
Fig. 2
5450.0006
C
B
V1
Fig. 3
14 / 22
