Operation

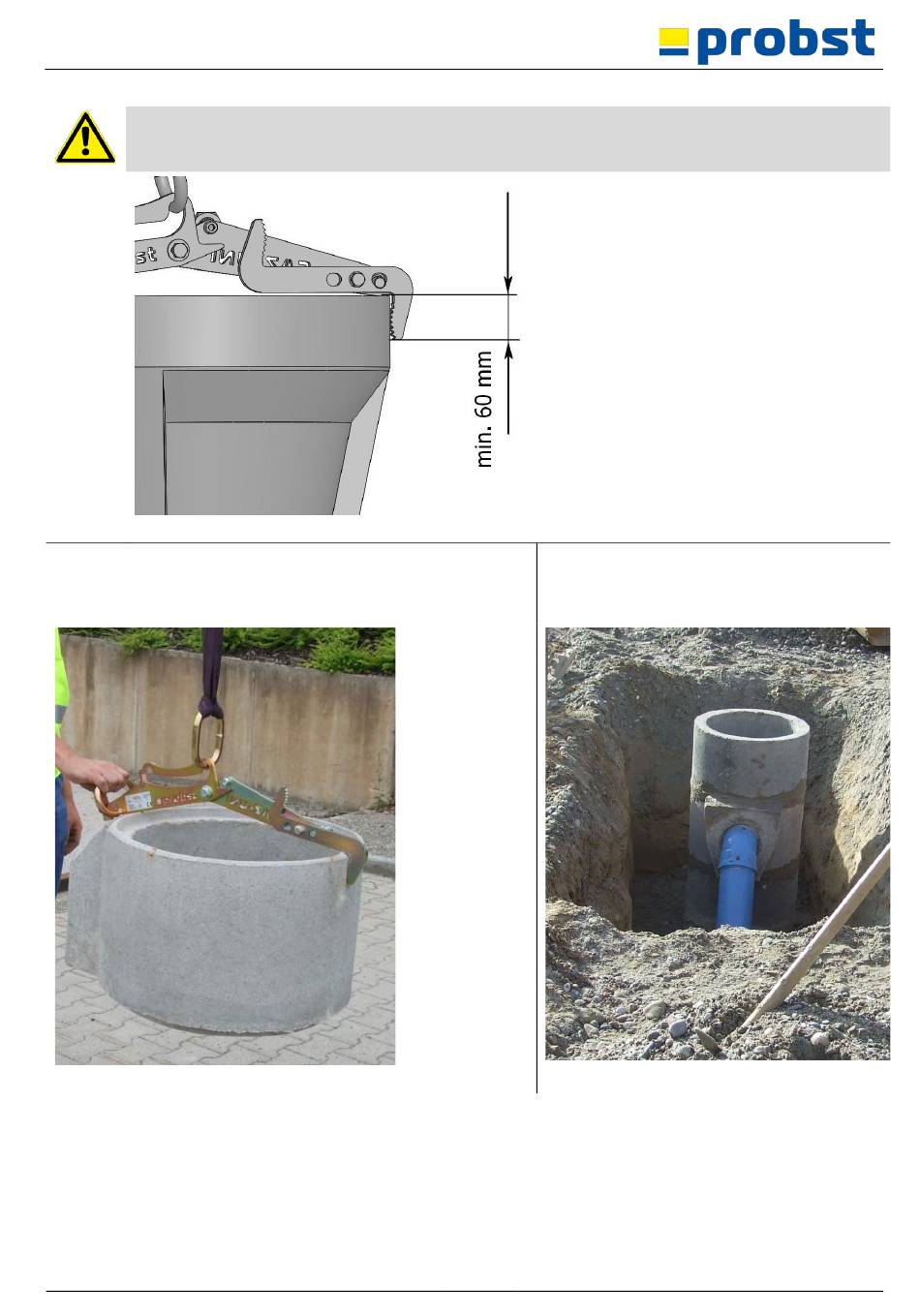

When gripping base parts according to DIN 4052, it is essential to note that the cylindrical gripping area
on the gripped item is at least 60 mm. Since the gripping claws have an immersion depth of 60 mm (see
Fig. 8). Otherwise there is a danger of slipping of the gripped material!
Fig. 8
Now carefully lift the device together with the load (gripping
material) and bring it to the desired destination (deposit location)
(see Figs. 9 and 10).
Fig. 9
54000035
Fig. 10
