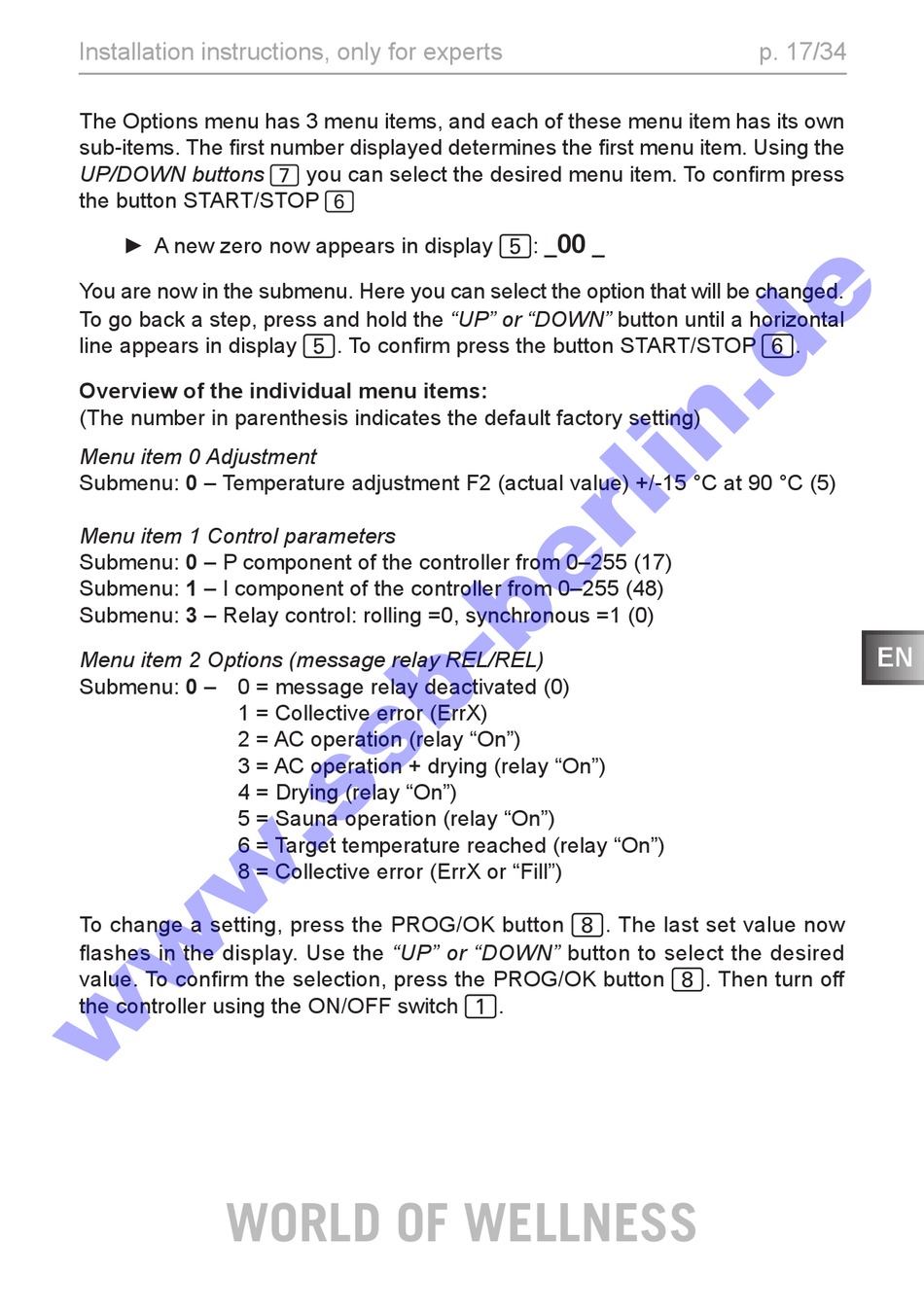

Sentiotec CV 31 Montage- Und Gebrauchsanweisung Seite 51

Installation instructions, only for experts
The Options menu has 3 menu items, and each of these menu item has its own
sub-items. The first number displayed determines the first menu item. Using the
UP/DOWN buttons 7 you can select the desired menu item. To confirm press
the button START/STOP 6
► A new zero now appears in display
You are now in the submenu. Here you can select the option that will be changed.
To go back a step, press and hold the "UP" or "DOWN" button until a horizontal
line appears in display
Overview of the individual menu items:
(The number in parenthesis indicates the default factory setting)
Menu item 0 Adjustment
Submenu: 0 – Temperature adjustment F2 (actual value) +/-15 °C at 90 °C (5)
Menu item 1 Control parameters
Submenu: 0 – P component of the controller from 0–255 (17)
Submenu: 1 – I component of the controller from 0–255 (48)
Submenu: 3 – Relay control: rolling =0, synchronous =1 (0)
Menu item 2 Options (message relay REL/REL)
Submenu: 0 – 0 = message relay deactivated (0)
1 = Collective error (ErrX)
2 = AC operation (relay "On")
3 = AC operation + drying (relay "On")
4 = Drying (relay "On")
5 = Sauna operation (relay "On")
6 = Target temperature reached (relay "On")
8 = Collective error (ErrX or "Fill")
To change a setting, press the PROG/OK button
flashes in the display. Use the "UP" or "DOWN" button to select the desired
value. To confirm the selection, press the PROG/OK button
the controller using the ON/OFF switch
WORLD OF WELLNESS
. To confirm press the button START/STOP
5
1
00
: _ _
5
. The last set value now
8
8
.
p. 17/34
.
6
EN
. Then turn off
