If the saddle can still move, the quick release
4
8. Carefully step onto the e-bike and sit on the saddle u.
9. Turn the pedal rd to the lowest position and place your heel on the pedal.
If you must fully extend your leg to reach the pedal in the lowest position, your saddle is too
4
high.
If you can stand with both feet flat on the ground, your saddle is too low.
4
CAUTION
6
Ҍ A loose saddle can move at unexpected moments and lead to hazardous situations or
accidents. Always make sure you have sufficiently tightened the saddle clamp and that the
saddle cannot make any unexpected movements.
4.8.1.2. Angle and horizontal position
1. Adjust the angle of the saddle u using the two adjusting screws under the saddle.
2. Tilt the saddle
u
Optional: Loosen both adjusting screws slightly and slide the saddle forwards or backwards to
4
adjust the horizontal position of the saddle.
3. Lock the saddle position by tightening the adjusting screws with the tightening torque
indicated on the underside of the saddle clamp. Use a torque wrench for this.
WARNING
6
The clamp should be fixed within the marking on the saddle rails. Attach the saddle within the
marking.

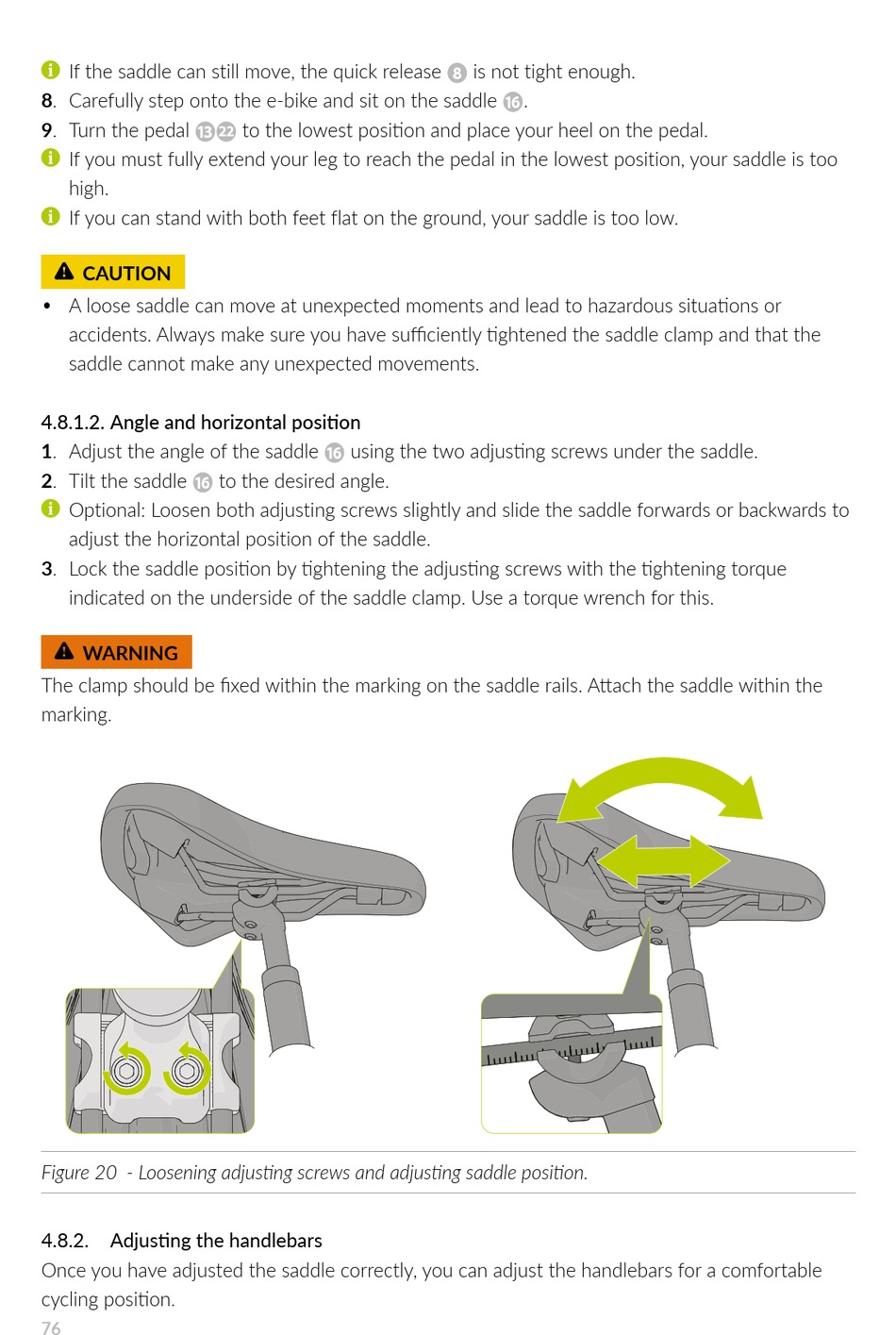

Figure 20 - Loosening adjusting screws and adjusting saddle position.
4.8.2. Adjusting the handlebars
Once you have adjusted the saddle correctly, you can adjust the handlebars for a comfortable
cycling position.
76
to the desired angle.
is not tight enough.
