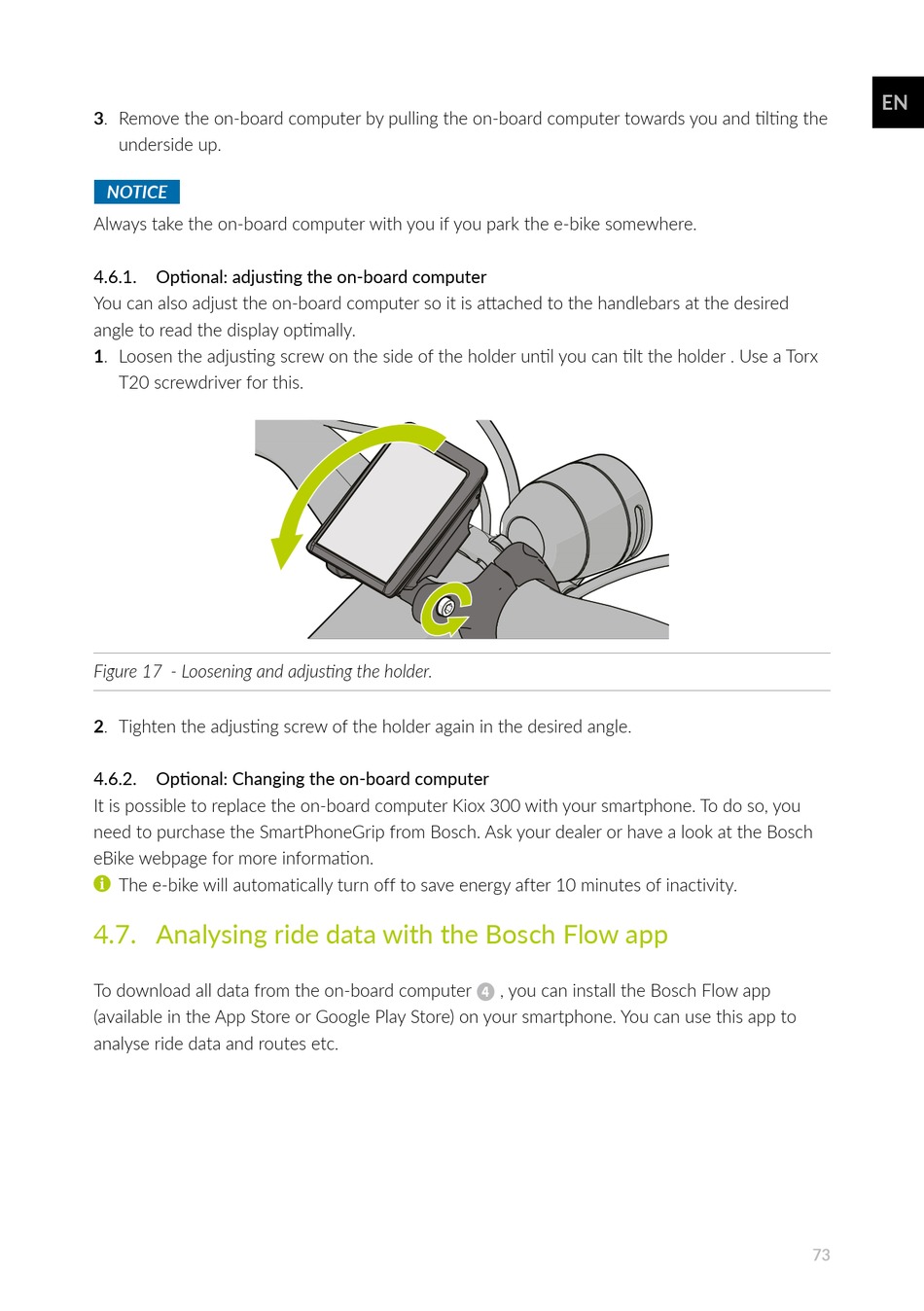

Optional: Adjusting The On-Board Computer; Optional: Changing The On-Board Computer; Analysing Ride Data With The Bosch Flow App - dutch id PHANTOM Bedienungsanleitung

3. Remove the on-board computer by pulling the on-board computer towards you and tilting the
underside up.
NOTICE
Always take the on-board computer with you if you park the e-bike somewhere.
4.6.1. Optional: adjusting the on-board computer
You can also adjust the on-board computer so it is attached to the handlebars at the desired
angle to read the display optimally.
1. Loosen the adjusting screw on the side of the holder until you can tilt the holder . Use a Torx
T20 screwdriver for this.
Figure 17 - Loosening and adjusting the holder.
2. Tighten the adjusting screw of the holder again in the desired angle.
4.6.2. Optional: Changing the on-board computer
It is possible to replace the on-board computer Kiox 300 with your smartphone. To do so, you
need to purchase the SmartPhoneGrip from Bosch. Ask your dealer or have a look at the Bosch
eBike webpage for more information.
The e-bike will automatically turn off to save energy after 10 minutes of inactivity.
4

4.7. Analysing ride data with the Bosch Flow app

To download all data from the on-board computer
(available in the App Store or Google Play Store) on your smartphone. You can use this app to
analyse ride data and routes etc.
, you can install the Bosch Flow app
