2.3. Battery and charger
The Dutch ID Phantom is supplied with a single battery and charger. A summary of the main
parts of the battery and charger is shown below.
f g

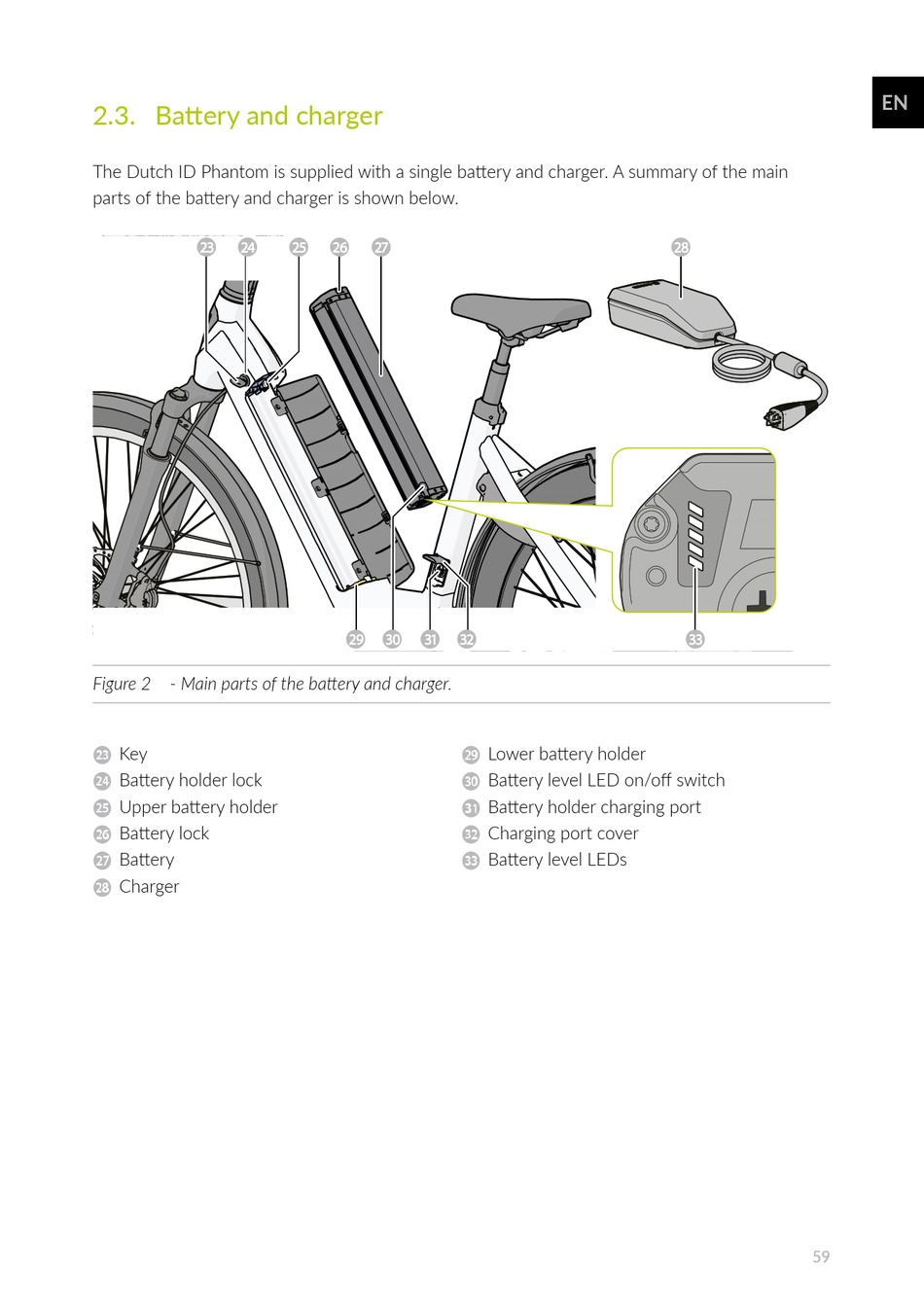

Figure 2 - Main parts of the battery and charger.
Key
f
g Battery holder lock
h Upper battery holder
j Battery lock
k Battery
Charger
l
h j k
z x c v
z Lower battery holder
x Battery level LED on/off switch
c Battery holder charging port
v
b Battery level LEDs
Charging port cover
l
b
