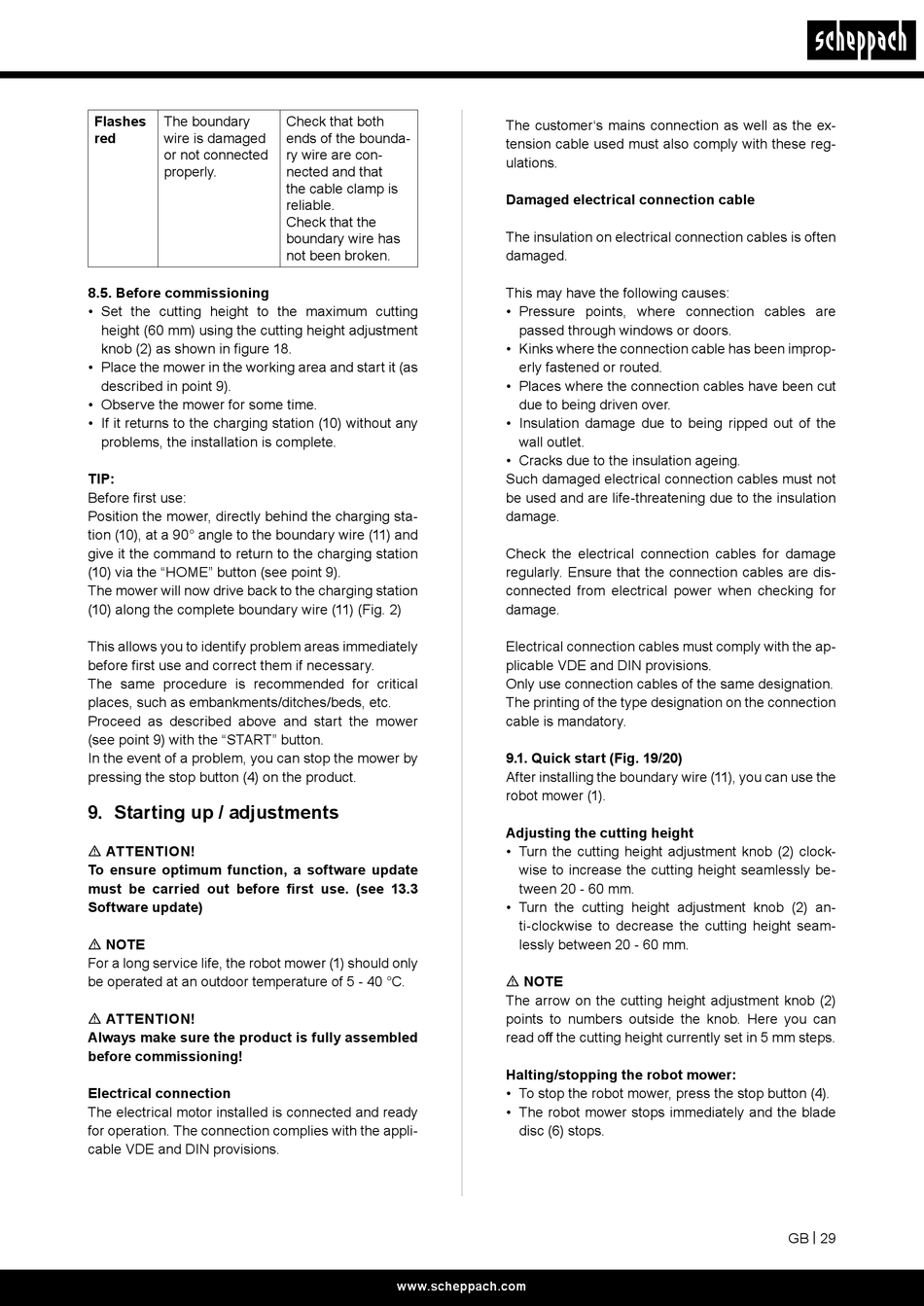

Flashes
The boundary
red wire is damaged
or not connected
properly.

8.5. Before commissioning

• Set the cutting height to the maximum cutting
height (60 mm) using the cutting height adjustment
knob (2) as shown in figure 18.
• Place the mower in the working area and start it (as
described in point 9).
• Observe the mower for some time.
• If it returns to the charging station (10) without any
problems, the installation is complete.
TIP:
Before first use:
Position the mower, directly behind the charging sta-
tion (10), at a 90° angle to the boundary wire (11) and
give it the command to return to the charging station
(10) via the "HOME" button (see point 9).
The mower will now drive back to the charging station
(10) along the complete boundary wire (11) (Fig. 2)
This allows you to identify problem areas immediately
before first use and correct them if necessary.
The same procedure is recommended for critical
places, such as embankments/ditches/beds, etc.
Proceed as described above and start the mower
(see point 9) with the "START" button.
In the event of a problem, you can stop the mower by
pressing the stop button (4) on the product.

9. Starting up / adjustments

m ATTENTION!
To ensure optimum function, a software update
must be carried out before first use. (see 13.3
Software update)
m NOTE
For a long service life, the robot mower (1) should only
be operated at an outdoor temperature of 5 - 40 °C.
m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
Electrical connection
The electrical motor installed is connected and ready
for operation. The connection complies with the appli-
cable VDE and DIN provisions.
Check that both
ends of the bounda-
ry wire are con-
nected and that
the cable clamp is
reliable.
Check that the
boundary wire has
not been broken.
www.scheppach.com
The customer's mains connection as well as the ex-
tension cable used must also comply with these reg-
ulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions.
Only use connection cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
9.1. Quick start (Fig. 19/20)
After installing the boundary wire (11), you can use the
robot mower (1).
Adjusting the cutting height
• Turn the cutting height adjustment knob (2) clock-
wise to increase the cutting height seamlessly be-
tween 20 - 60 mm.
• Turn the cutting height adjustment knob (2) an-
ti-clockwise to decrease the cutting height seam-
lessly between 20 - 60 mm.
m NOTE
The arrow on the cutting height adjustment knob (2)
points to numbers outside the knob. Here you can
read off the cutting height currently set in 5 mm steps.
Halting/stopping the robot mower:
• To stop the robot mower, press the stop button (4).
• The robot mower stops immediately and the blade
disc (6) stops.
