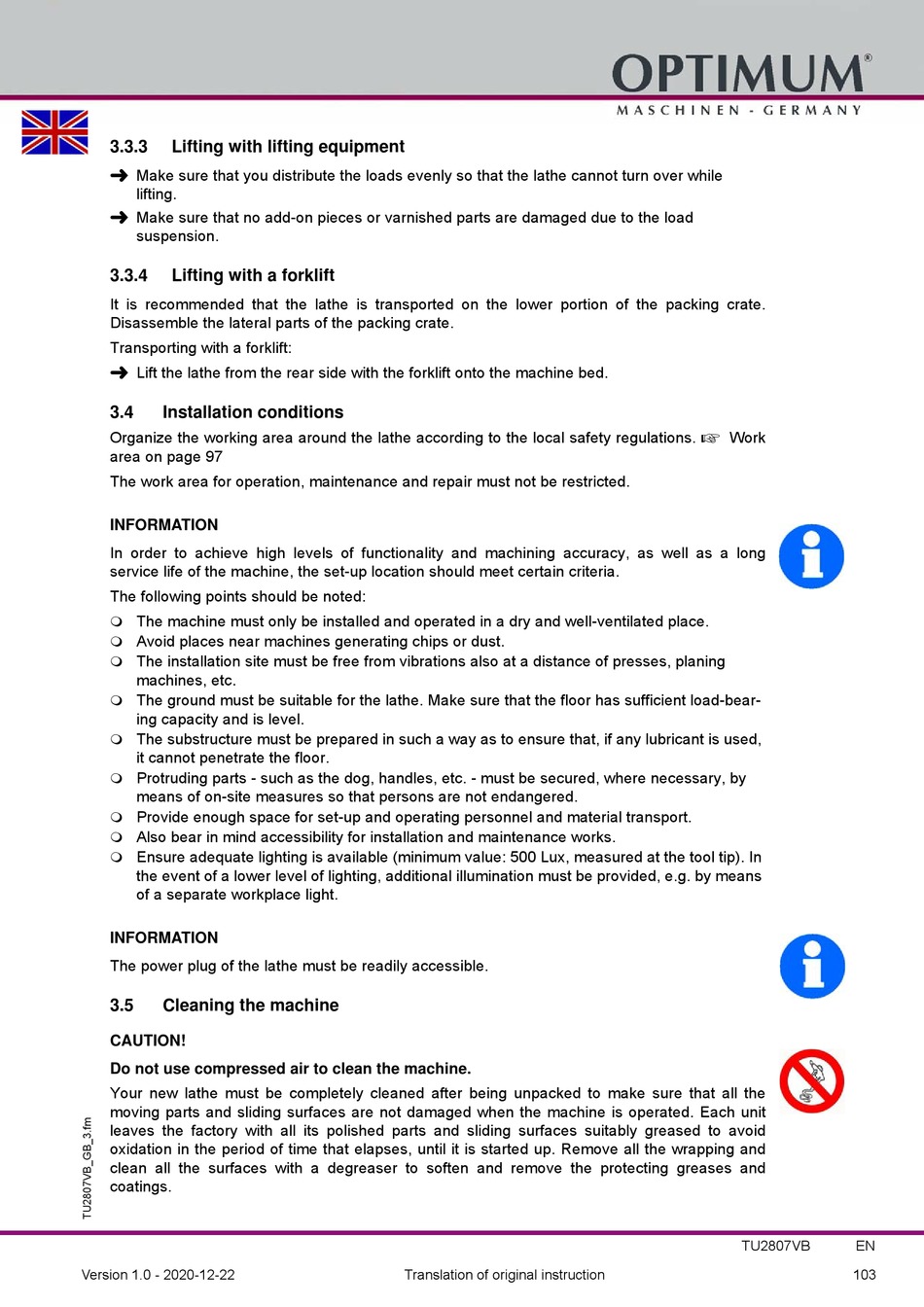

3.3.3
Lifting with lifting equipment
Make sure that you distribute the loads evenly so that the lathe cannot turn over while
lifting.
Make sure that no add-on pieces or varnished parts are damaged due to the load
suspension.
3.3.4
Lifting with a forklift
It is recommended that the lathe is transported on the lower portion of the packing crate.
Disassemble the lateral parts of the packing crate.
Transporting with a forklift:
Lift the lathe from the rear side with the forklift onto the machine bed.
3.4
Installation conditions
Organize the working area around the lathe according to the local safety regulations.
area on page 97
The work area for operation, maintenance and repair must not be restricted.
INFORMATION
In order to achieve high levels of functionality and machining accuracy, as well as a long
service life of the machine, the set-up location should meet certain criteria.
The following points should be noted:
The machine must only be installed and operated in a dry and well-ventilated place.
Avoid places near machines generating chips or dust.
The installation site must be free from vibrations also at a distance of presses, planing
machines, etc.
The ground must be suitable for the lathe. Make sure that the floor has sufficient load-bear-
ing capacity and is level.
The substructure must be prepared in such a way as to ensure that, if any lubricant is used,
it cannot penetrate the floor.
Protruding parts - such as the dog, handles, etc. - must be secured, where necessary, by
means of on-site measures so that persons are not endangered.
Provide enough space for set-up and operating personnel and material transport.
Also bear in mind accessibility for installation and maintenance works.
Ensure adequate lighting is available (minimum value: 500 Lux, measured at the tool tip). In
the event of a lower level of lighting, additional illumination must be provided, e.g. by means
of a separate workplace light.
INFORMATION
The power plug of the lathe must be readily accessible.
3.5
Cleaning the machine
CAUTION!
Do not use compressed air to clean the machine.
Your new lathe must be completely cleaned after being unpacked to make sure that all the
moving parts and sliding surfaces are not damaged when the machine is operated. Each unit
leaves the factory with all its polished parts and sliding surfaces suitably greased to avoid
oxidation in the period of time that elapses, until it is started up. Remove all the wrapping and
clean all the surfaces with a degreaser to soften and remove the protecting greases and
coatings.
Version 1.0 - 2020-12-22
Translation of original instruction
Work
TU2807VB
EN
103
