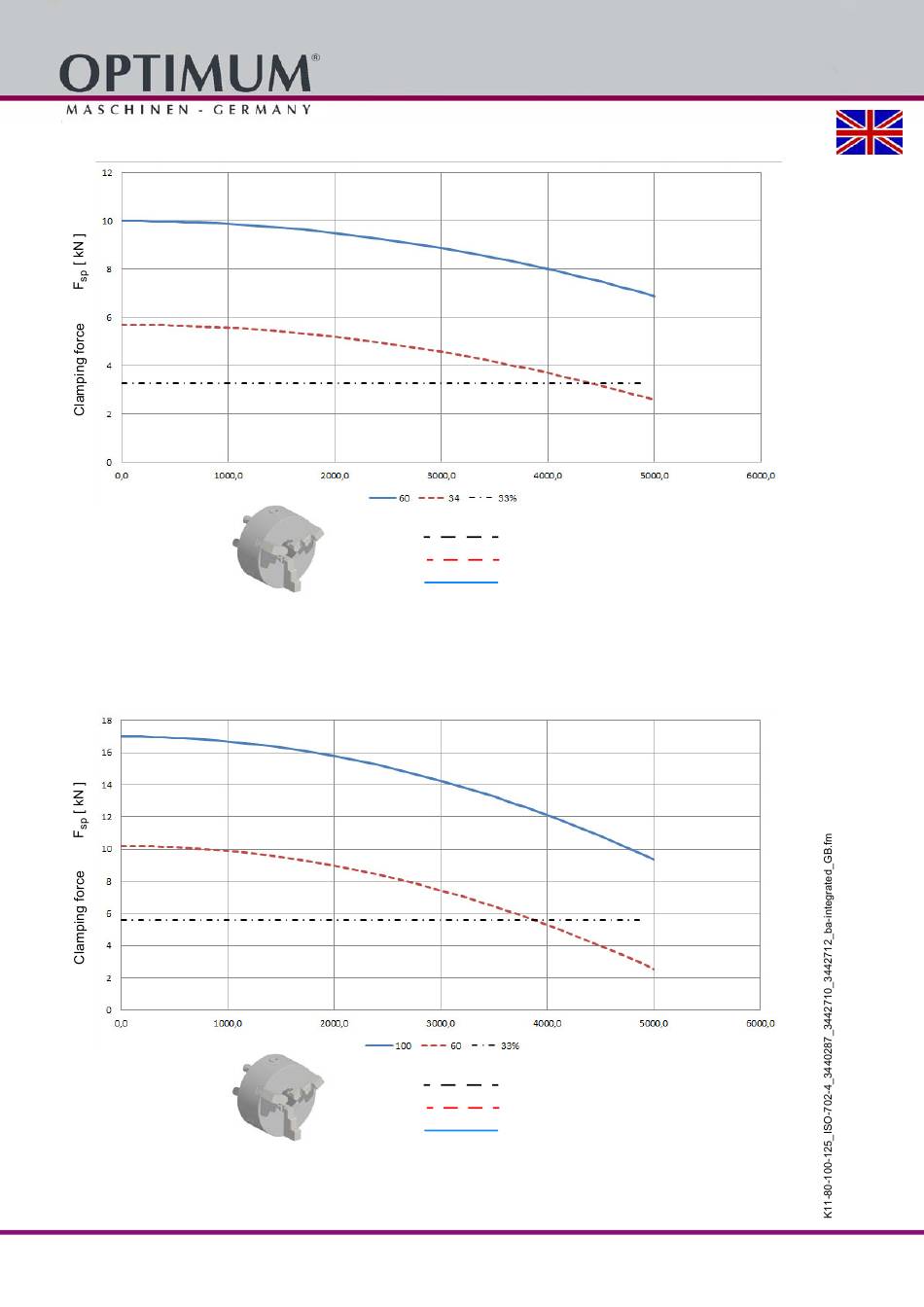

4.23.6 Clamping force-speed diagram - Lathe chuck K11-100
Speed n [rpm]
The clamping force to speed diagram shows the calculated centrifugal force with the matching
jaw design as a function for the speed if the chuck jaws do not protrude beyond the outer diam-
eter of the chuck.
4.23.7 Clamping force-speed diagram - Lathe chuck K11-125
Speed n [rpm]
The clamping force to speed diagram shows the calculated centrifugal force with the matching
jaw design as a function for the speed if the chuck jaws do not protrude beyond the outer diam-
eter of the chuck.
GB
3440287│3442710│3442712
144
Translation of original instruction
Required minimum clamping force 33 %
Tightening torque with key 34 Nm
Tightening torque with key max. 60 Nm
Required minimum clamping force 33 %
Tightening torque with key 60 Nm
Tightening torque with key max. 100 Nm
