3.9

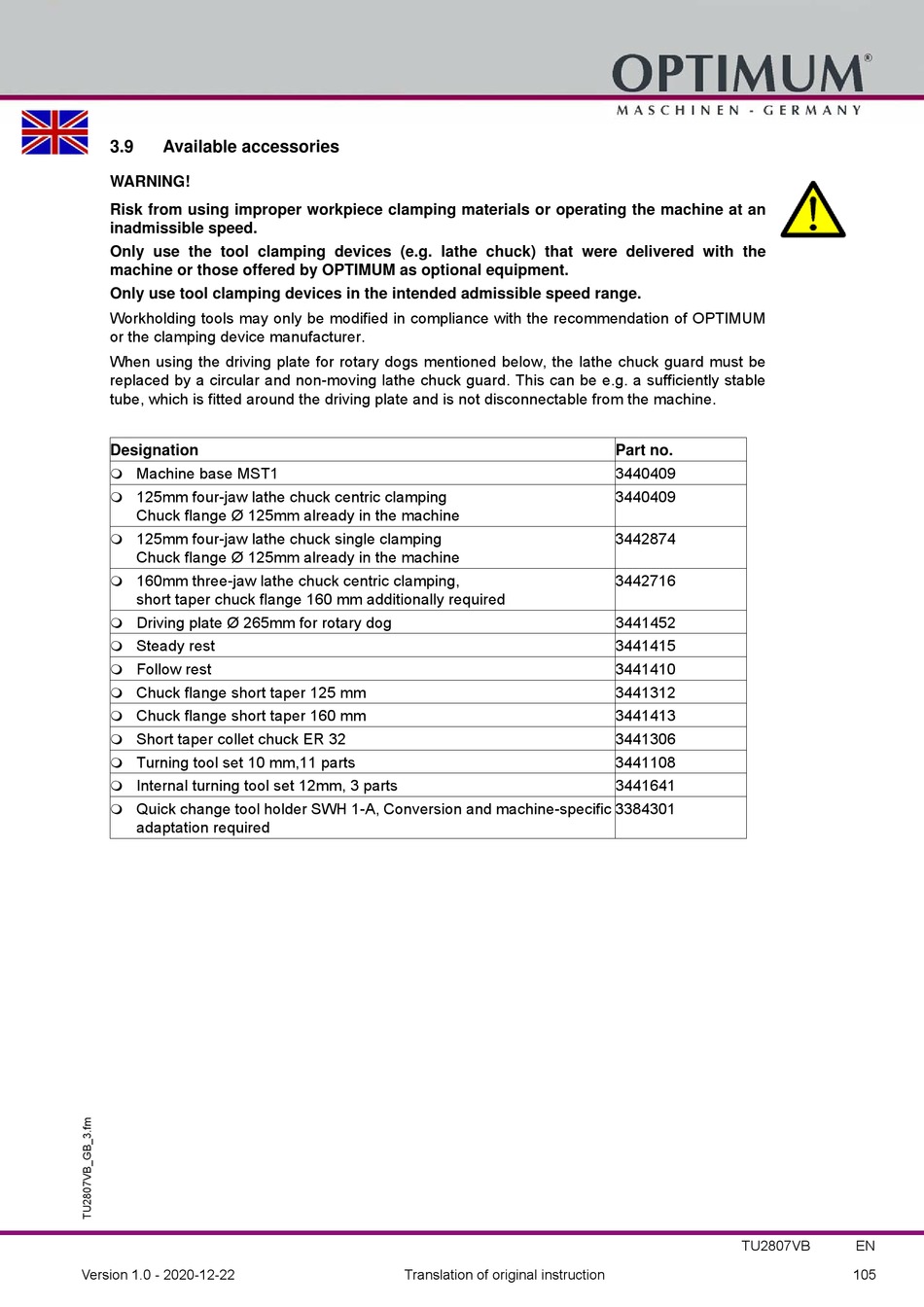

Available accessories

WARNING!
Risk from using improper workpiece clamping materials or operating the machine at an
inadmissible speed.
Only use the tool clamping devices (e.g. lathe chuck) that were delivered with the
machine or those offered by OPTIMUM as optional equipment.
Only use tool clamping devices in the intended admissible speed range.
Workholding tools may only be modified in compliance with the recommendation of OPTIMUM
or the clamping device manufacturer.
When using the driving plate for rotary dogs mentioned below, the lathe chuck guard must be
replaced by a circular and non-moving lathe chuck guard. This can be e.g. a sufficiently stable
tube, which is fitted around the driving plate and is not disconnectable from the machine.
Designation
Machine base MST1

125mm four-jaw lathe chuck centric clamping

Chuck flange Ø 125mm already in the machine
125mm four-jaw lathe chuck single clamping

Chuck flange Ø 125mm already in the machine
160mm three-jaw lathe chuck centric clamping,

short taper chuck flange 160 mm additionally required
Driving plate Ø 265mm for rotary dog

Steady rest

Follow rest

Chuck flange short taper 125 mm

Chuck flange short taper 160 mm

Short taper collet chuck ER 32

Turning tool set 10 mm,11 parts

Internal turning tool set 12mm, 3 parts

Quick change tool holder SWH 1-A, Conversion and machine-specific

adaptation required
Version 1.0 - 2020-12-22 Translation of original instruction
Part no.
3440409
3440409
3442874
3442716
3441452
3441415
3441410
3441312
3441413
3441306
3441108
3441641
3384301
