Attach the Arms

Attach the Arms
Required Parts:
• Kit 3
• Upper Yoke Arm
• Lower Yoke Arm
• Grease Gun (included)
C
ATTACH THE ARMS
1. Attach the lower yoke arm (10) to the pole (1).
2. Secure with the hinge pin (34), washer (37), lockwasher (32), and bolt (35) on each side.

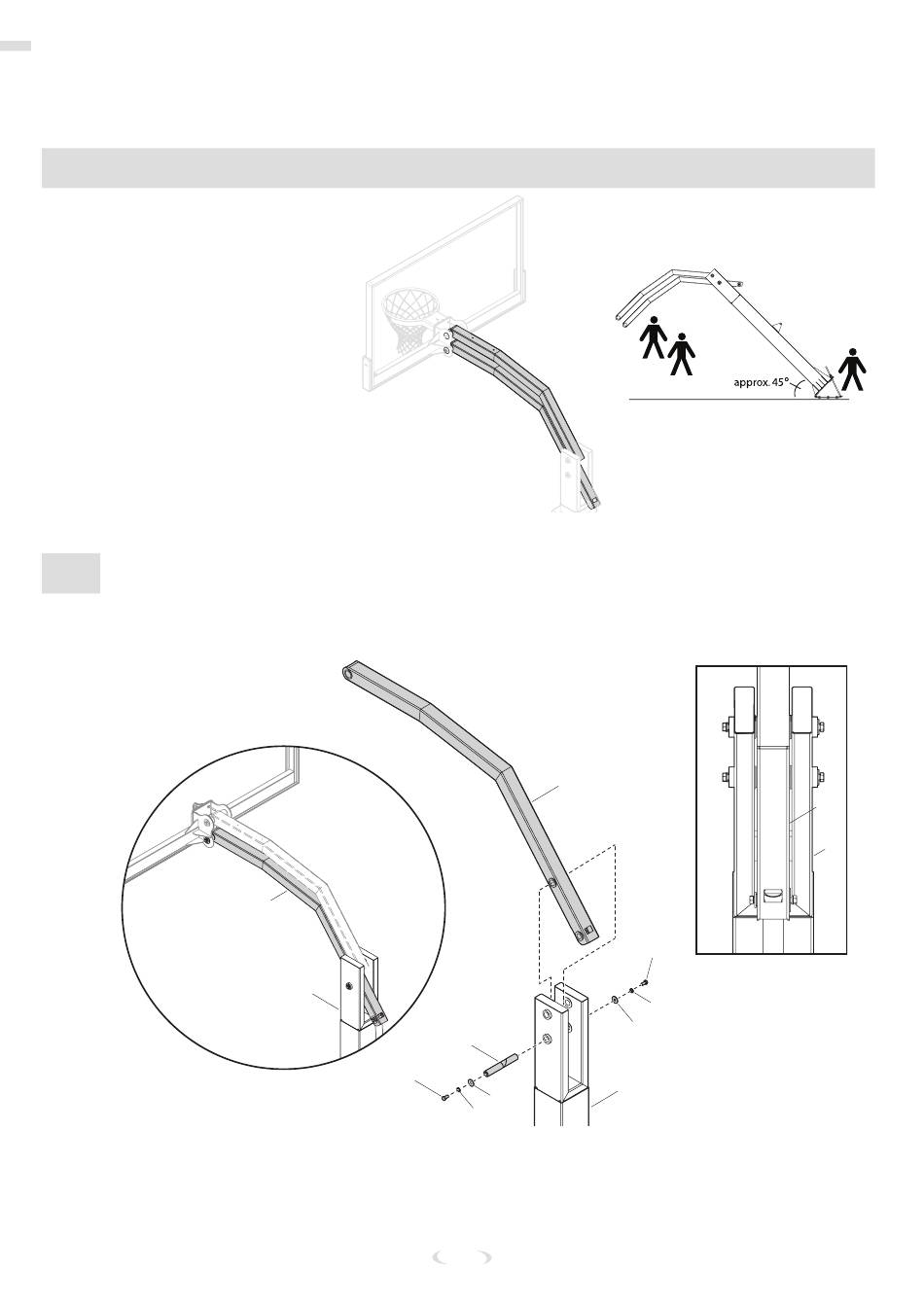

Completed Arms Assembly:
#10
#1
#35
#10
#34
#1
#37
#32
16
#35
#32
#37
#10
#1
