Attach the Backboard

Attach the Backboard
Required Parts:
• Kit 5
• Backboard assembly
• Grease Gun (included)
E

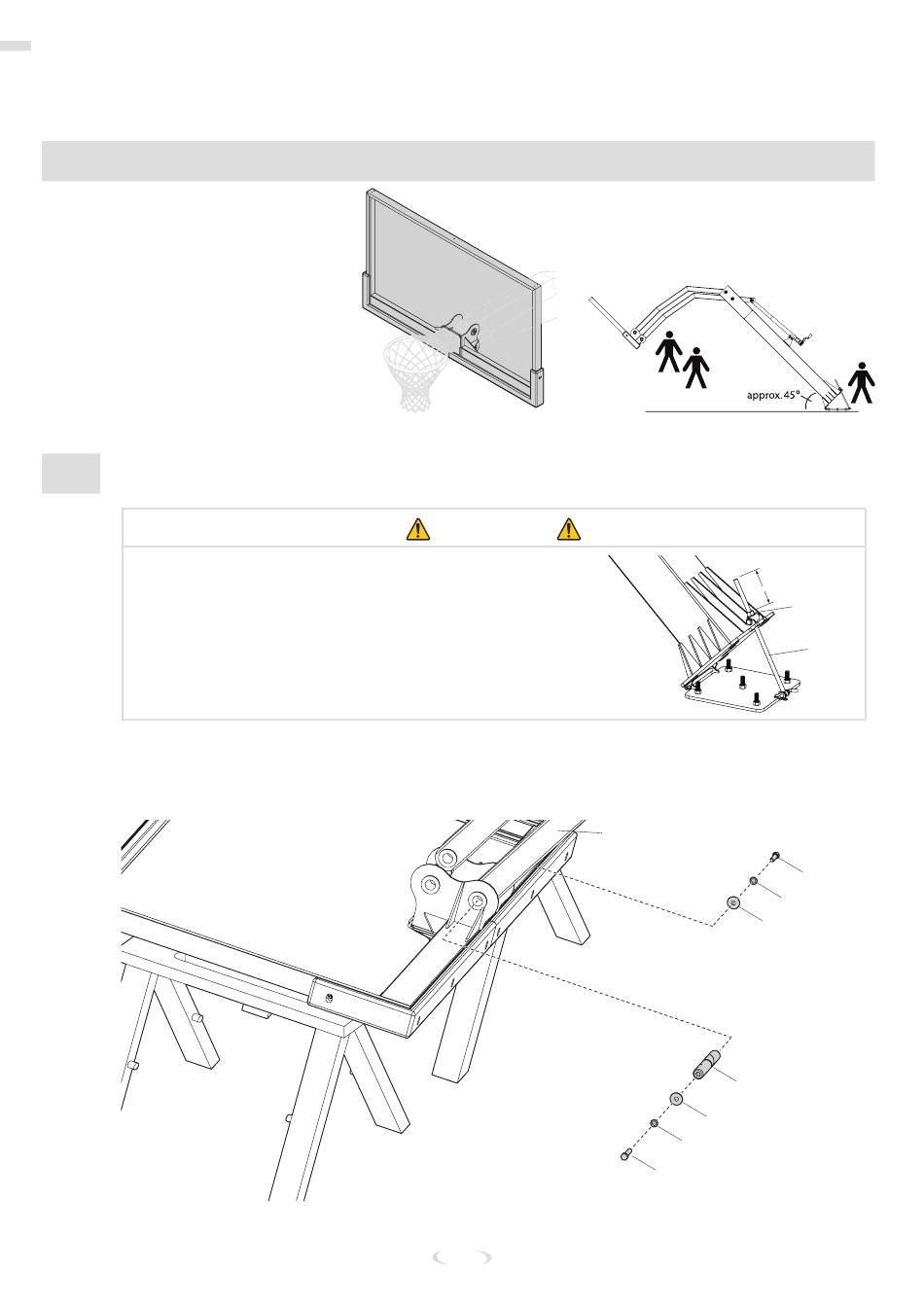

ATTACH THE BACKBOARD
Before starting backboard assembly, tighten nut (17) until
it is positioned 7-1/2" from the end of the rod as shown.
1. Rest the backboard on two sawhorses.
2. Attach the backboard to the lower yoke arm (10) using the hinge pin (36), washers (37),
lockwashers (32), and bolt (35).
Completed Backboard Assembly:
IMPORTANT
20
7-1/2"
#10
#37
#36
#37
#32
#35
#17
#20
#35
#32
