• When disposing of the worn out battery, take it to a service point
where you can utilize such dangerous wastes.
SAFETY REGULATIONS FOR THE CHARGER
• Do not expose the charger to humidity or water. Ingress of water
into the charger increases risk of electric shock. Use the charger only in
dry rooms.
• Disconnect the charger from power supply before starting any
maintenance or cleaning.
• Do not use the charger when placed on flammable surface (e.g.
paper, textiles) or in proximity of flammable substance. Greater
charger temperature when charging increases risk of fire.
• Check condition of the charger, cable and plug before each use. Do
not use the charger if any damage is found. Do not try to disassemble
the charger. All repairs should be made at an authorized service workshop.
Improper charger assembly may cause electric shock or fire.
• Children or persons who are physically, emotionally or mentally disabled
and other persons, whose experience or knowledge is insufficient to use
the charger while following all safety rules should not use the charger
without supervision of person responsible for their safety. Otherwise
there is a risk of improper use and injuries in consequence.
• When the charger is not in use, it should be disconnected from
the mains network.
• Observe all charging instructions. Do not charge the battery in
temperature outside of range defined in the rating data table
from the instruction manual. Incorrect charging or charging in
temperature outside of defined range may damage the battery and
increase the risk of fire.
CHARGER REPAIRS
• Do not repair damaged charger. The charger can be repaired only by
the manufacturer or in an authorised workshop.
• When disposing of the worn out charger, take it to a service point
where you can utilize such wastes.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries at work.
Li-Ion batteries may leak, set on fire or explode when heated to
high temperature or short-circuited. Do not store the batteries in a
car in hot and sunny days. Do not open the battery. Li-Ion batteries
contain electronic protection devices that, if damaged, may cause
fire or explosion of the battery.

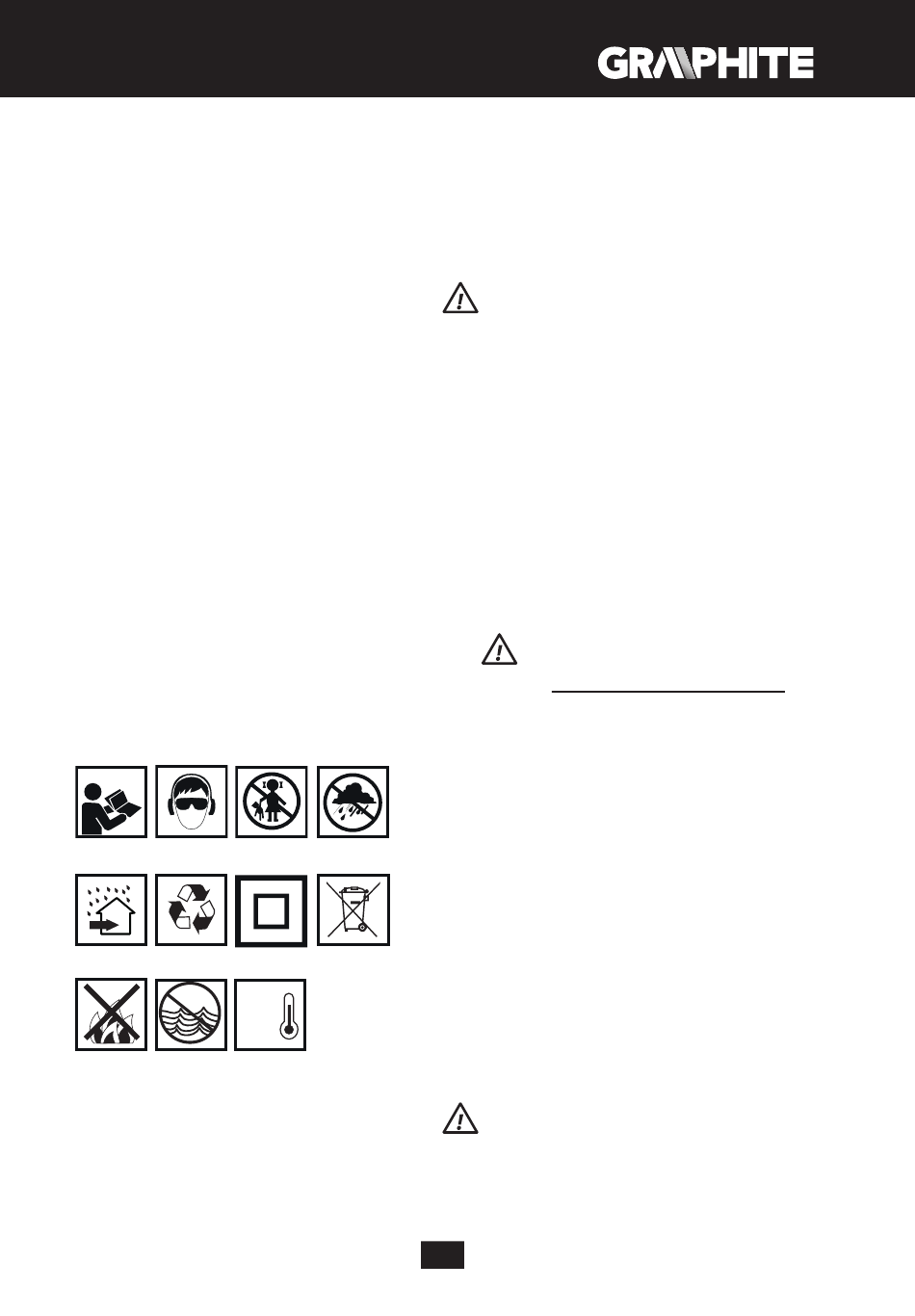

Explanation of used symbols
1 2
5 6
9 10
Read instruction manual, observe warnings and safety conditions
1.
therein.
Use protective goggles and hearing protectors.
2.
Keep the tool away from children.
3.
Protect against rain.
4.
Use indoors, protect from water and moisture.
5.
Recycling.
6.
Protection class 2.
7.
Segregated waste collection.
8.
Do not throw cells into fire.
9.
3 4
7 8
Max.
50°C
11
Hazardous to water environment.
10.
Do not allow to heat above 50°C.
11.
CONSTRUCTION AND USE
The impact driver is a battery-powered tool. Drive consists of a brushless
DC motor with planetary gear. The impact driver is used for tightening
and undoing screws and bolts in wood, metal or plastics. High speed
allows to use the device widely for self drilling screws, and high torque
allows to use the device for long screws in wood. The device can be well
used at heights and in hard to reach areas. High torque mechanism
creates the torque as short, high peaks of circumferential impact, and
tool reaction towards the operator's hands during tightening is low.
Use the power tool in accordance with the manufacturer's
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
Tool holder
1.
Fixing sleeve of the tool chuck
2.
Casing
3.
Direction selector switch
4.
Handle
5.
Holder
6.
Illumination
7.
Gear switch button
8.
Gear display
9.
Switch
10.
Battery lock button
11.
Battery
12.
Charger
13.
LED diodes
14.
Button for battery level indication
15.
Battery level indicator (LED)
16.
* Differences may appear between the product and
MEANING OF SYMBOLS
WARNING

PREPARATION FOR OPERATION

REMOVING AND INSERTING THE BATTERY
• Set the direction selector switch (4) in the middle position.
• Press the battery lock button (11) and slide out the battery (12) (fig. A).
• Insert charged battery (12) into the handle holder, you should hear
when the battery lock button (11) snaps.
BATTERY CHARGING
The device is supplied with partially charged battery. Charge the battery
when ambient temperature is within range 4°C–40°C. New battery, or
one that has not been used for a long time, will reach full efficiency after
approximately 3 to 5 charge/discharge cycles.
• Remove the battery (12) from the device (fig. A).
• Connect the charger to mains socket (230 V AC.)
• Slide the battery (12) into the charger (13) (fig. B). Make sure the
battery is properly fitted (pushed to the end).
When the charger is connected to a mains socket (230 V AC), the green
diode (14) on the charger turns on to indicate connected supply.
When the battery (12) is placed in the charger (13), the red diode (14) on
the charger turns on to indicate that the charging is in progress.
At the same time green diodes (16) of the battery level indication are
flashing in different configurations, see description below.
• All diodes are flashing – the battery is empty and requires charging.
• 2 diodes are flashing – the battery is partially discharged.
• 1 diode is flashing – the battery level is high.
Once the battery has been charged, the diode (14) on the charger lights
green, and all battery level diodes (16) light continuously. After some
time (approx. 15 s) the battery level indication diodes (16) turn off.
Do not charge the battery for more than 8 hours. Exceeding this
time limit may cause damage to battery cells. The charger does not
turn off automatically when the battery is full. Green diode on the
charger will remain on. Battery level indication diodes turn off after
some time. Disconnect power supply before removing the battery
from the charger socket. Avoid consecutive short chargings. Do not
charge the battery after short use of the tool. Significant decrease
of the period between necessary chargings indicates that the
battery is worn out and should be replaced.
9
