Control Connection - KEB COMBIVERT Betriebsanleitung

Installation
4.1.2
EMC
max. 50 mA DC
for both outputs
GB - 38

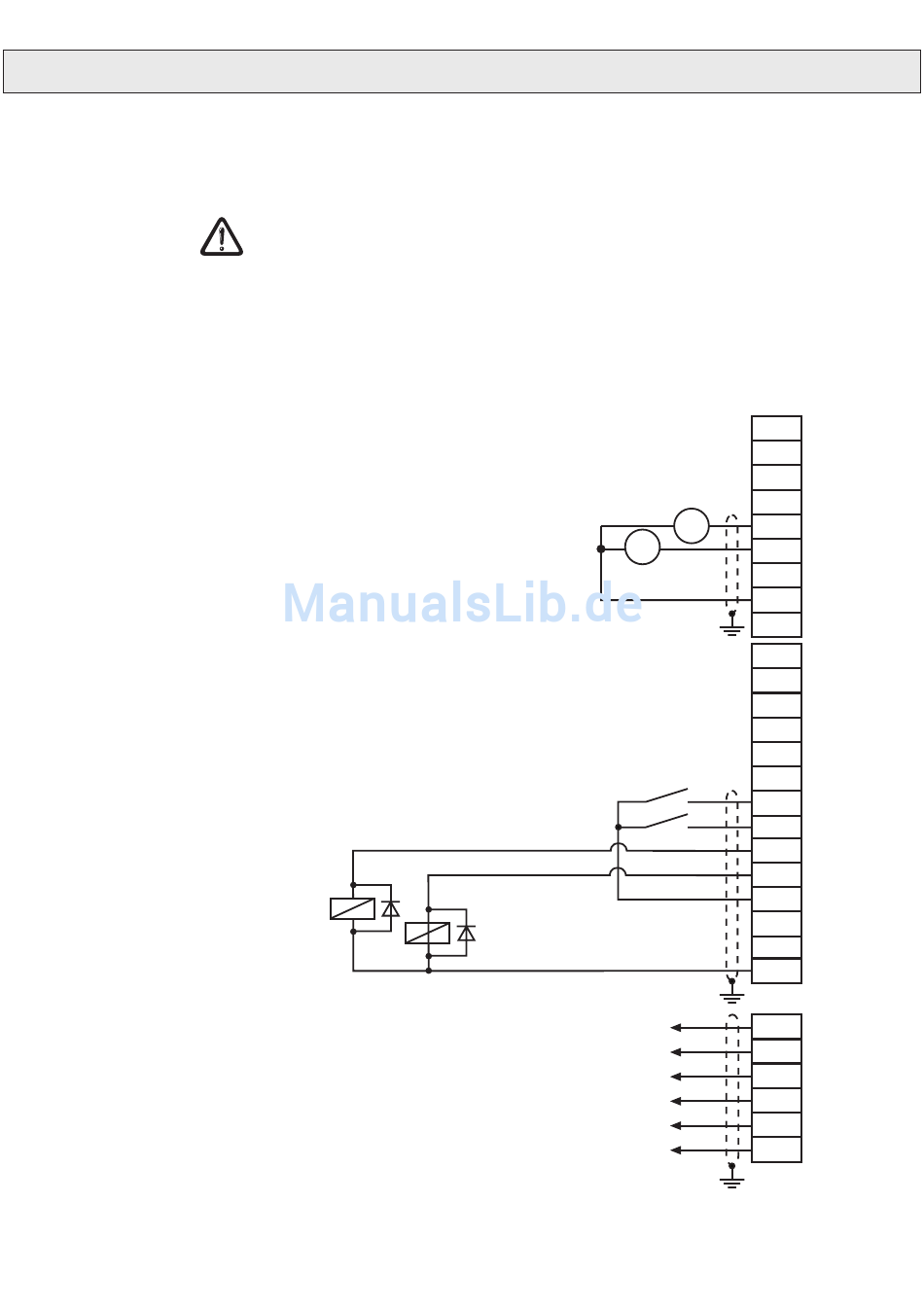

Control Connection

In order to avoid malfunctions caused by interference voltage supply at the control
inputs, the following instructions must be observed:
• Use shielded/drilled cables
• Lay shield on one side of the inverter onto earth potential
• Lay power and control cable separately (about 10...20 cm distance); lay cables
in a right angle
Analog output
0...10 VDC / 5 mA
max. 30 VDC
0,01...1 A
max. 30 VDC
0,01...1 A
X2A
1
2
3
4
5
U
U
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
