Operation
6.6
3

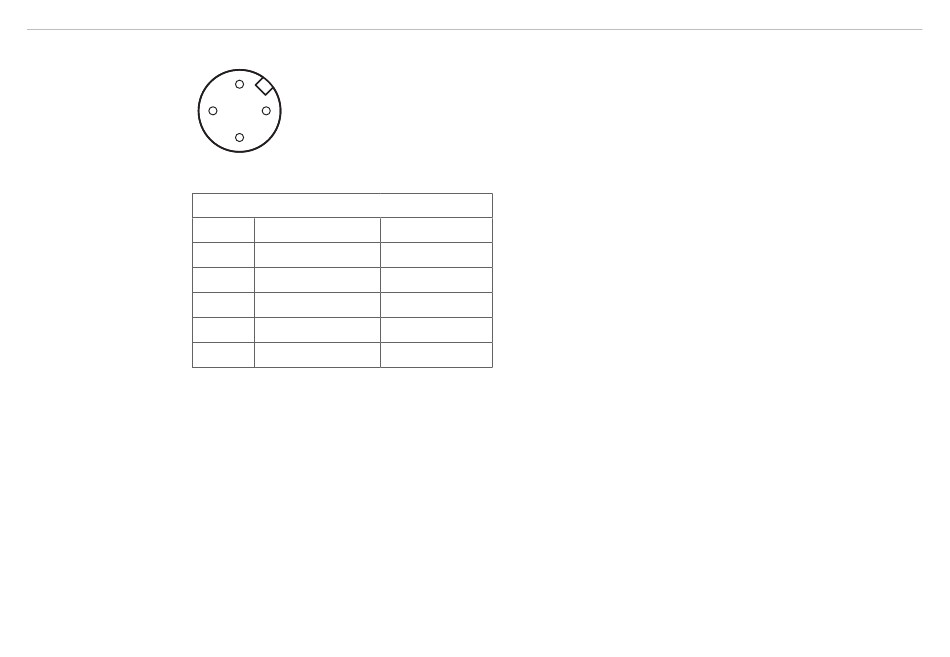

Fig. 10 4-pin. female cable connector, view on solder pin side
Light source
Pin
1
2
3
4
Screen Housing
i
optoCONTROL 1200/1201
Inputs and Outputs
2
1
4
Signal
Color PC120x
+12 ... +32 VDC Brown
Laser control
White
GND (0 V)
Blue
GND (0 V)
Black
- - -
MICRO-EPSILON Eltrotec GmbH recommends the use of the PC1200 power supply and output cable.
This cable is an optional
accessory, see A
Laser power:
The laser power in the light source can be controlled.
Pin 2 open: 66 % of the maximum laser power
Pin 2 connected with GND: Full laser power
Pin 2 connected with 0 ... 5 VDC: Controls the laser power
Pin 2 connected with 5 ... 24 VDC: Laser off
1.
