VIEWEG
12.3 USB-Port, female
Standard USB connection socket for using a prepared USB stick for data storage or
update .
12.4 Ethernet (RJ45, LAN)
EN
A JSON file with the measurement data and results is provided on port 8080 . It can be
accessed in common browsers: Enter <IP>:8080 in the URL field .

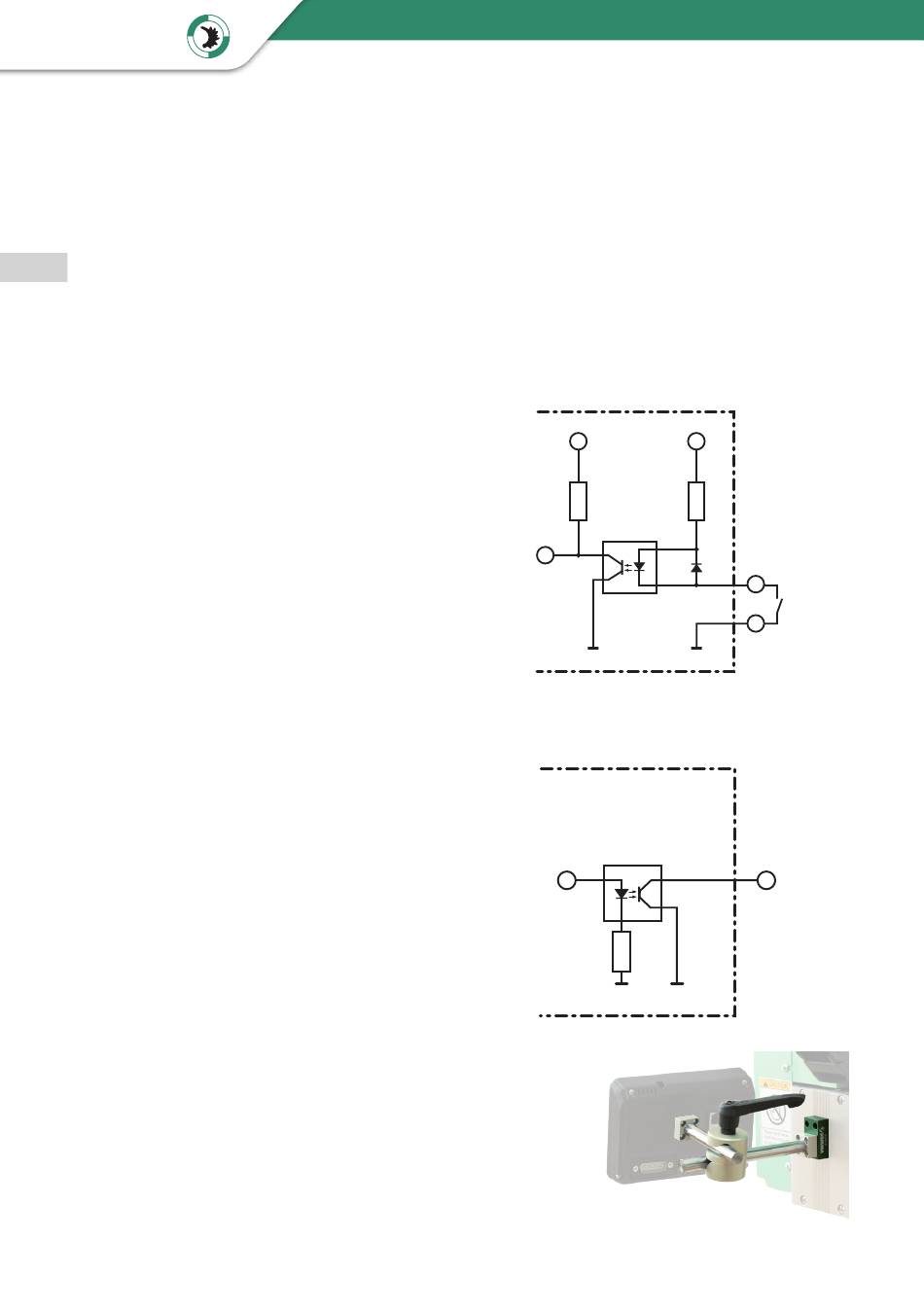

12.5 Circuit diagrams
Digital inputs:
The input signal is active when the
optocoupler is switched on .
The inputs are activated when the
input pin is short-circuited to the GND
pin .
Digital outputs:
If the digital output is busy, the
Optocoupler is switching signal to
ground GND
12.6 Mounting
On the back of the QC-100 there are four threads (M3
- 4mm deep in a square arrangement with 13x13mm
spacing) .
There, the QC-100 can be attached, for example, to the
matching QC-100 mount for robots (part no . 505250) .
Operating Manual QC-100 quality control
QC-100
VCC
Input
Microcontroller
GND
QC-100
Output
Microcontroller
48
VCC
Opto-
coupler
D2
GND
Opto-
coupler
GND
GND
I/O-Port
Input
I/O-Port
Output
