Operating Manual QC-100 quality control
By tapping the Home button
you will return to the main
menu .
Tapping the Log File button
will take you to the log file
view .
A new start condition does not require a restart;
this is only possible after the specified time has
elapsed .
After the time range has expired, the measure-
ment data is evaluated .
If the switching threshold is still exceeded after
the time has elapsed, the recording of a further
measurement curve is started immediately .

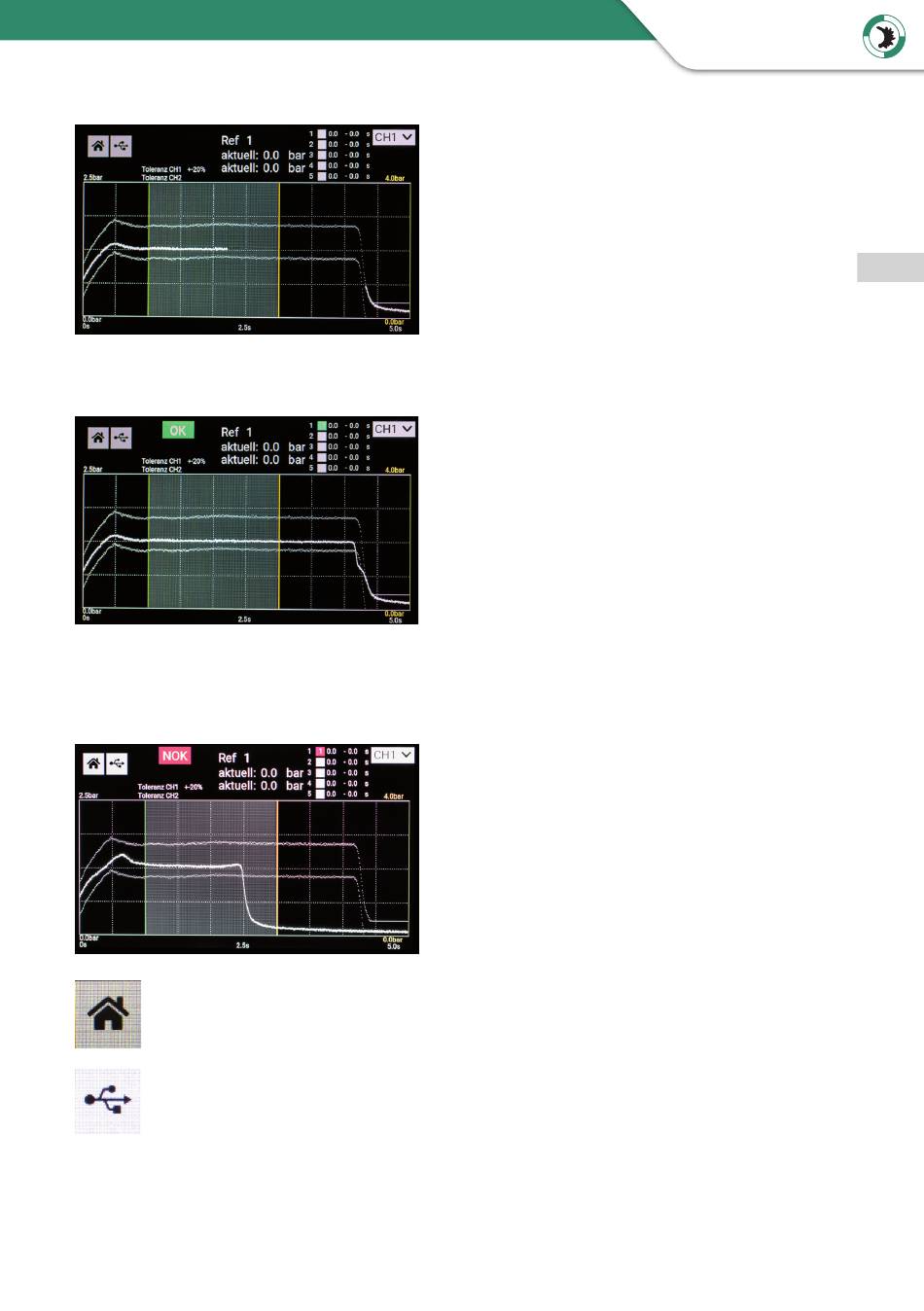

In case of a measurement within the limits over
all defined block times, OK is displayed as ove-
rall result and additionally for each individual
block . For a quick overview, display traffic lights
with green/red are also shown .
If the measured value reaches 75% of the limit
value, the optocoupler is switched at the inter-
face on pin 12, the signal is pulled to GND and
is available as a WARNING . The display does not
show this .
If the measured value within a defined block
exceeds or falls below the limit values, this
block is displayed in the traffic light with red
and the overall result is thus NOK and also
marked red .
The number in the block corresponds to the
respective channel: 1 = channel 1; 2 = channel
2; X = channel 1 & 2 .
If a USB stick is present at the corresponding
interface, each individual measurement, OK
and NOK, is also saved as a * . c sv file in a LOG
directory .
More about this in the section Menu Log-File .
