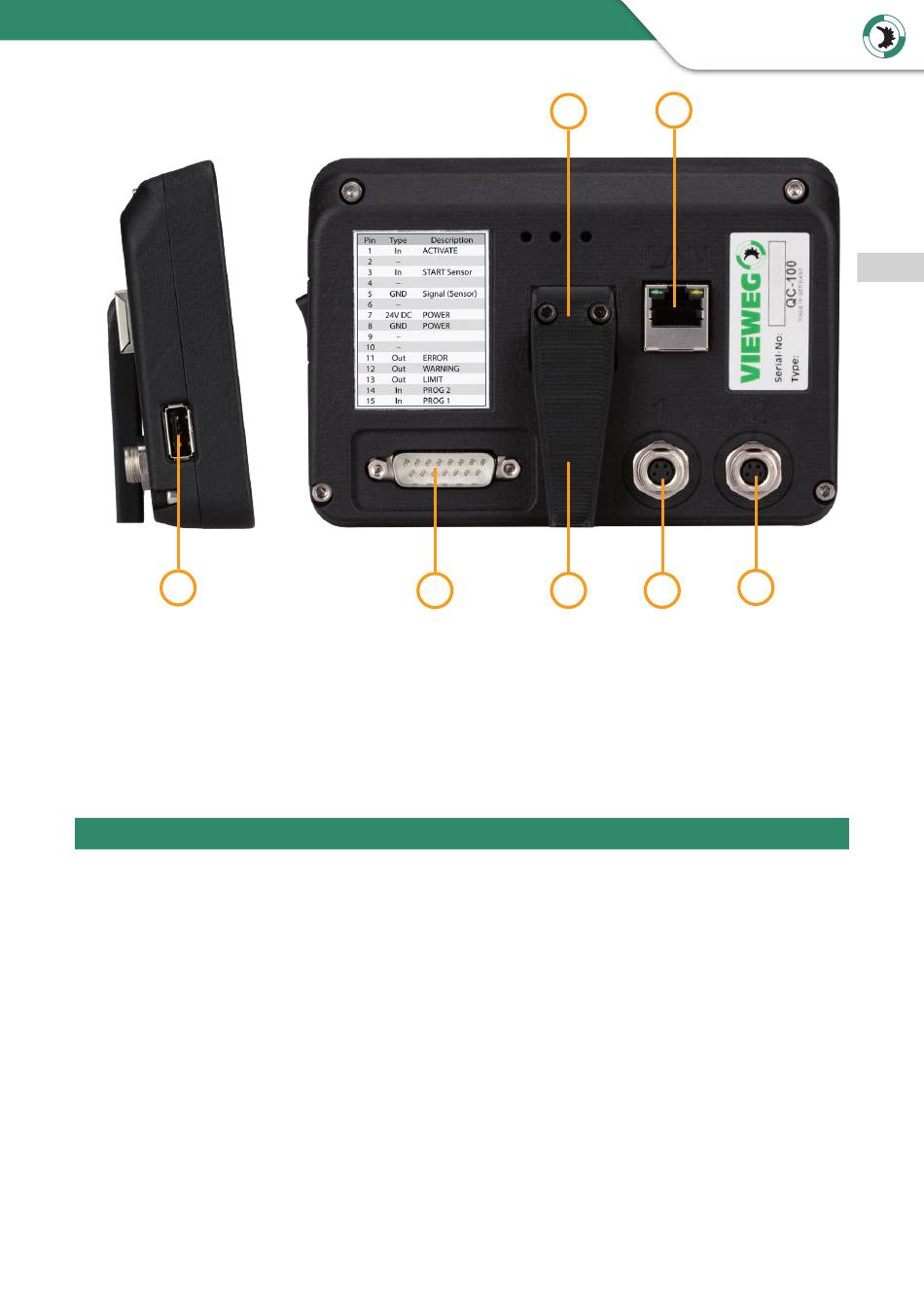

Operating Manual QC-100 quality control
10
5 Ethernet socket (LAN)
6 Socket pressure sensor cable
channel 2 (M8)
7 Socket pressure sensor cable
channel 1 (M8)
4 Installation
4.1 Installation or mounting of the hardware
The compact device is equipped with a 5-inch touch screen that offers all functions with
direct access . Attach the mounting foot to the central mounting square on the back of
the device and place QC-100 in an ergonomic favorable position so that the interfaces
remain easily accessible as required:
- M8 socket for connecting the pressure sensor cable
- 15-pin Sub-D socket for I/O signals and power supply (24 V DC)
- Ethernet socket LAN (RJ45) for network connection
- USB socket for data storage and software update
4
9
8
8 Mounting leg
9 I/O port (Sub-D 15 pin)
10 USB-Port
31
VIEWEG
5
6
7
EN
