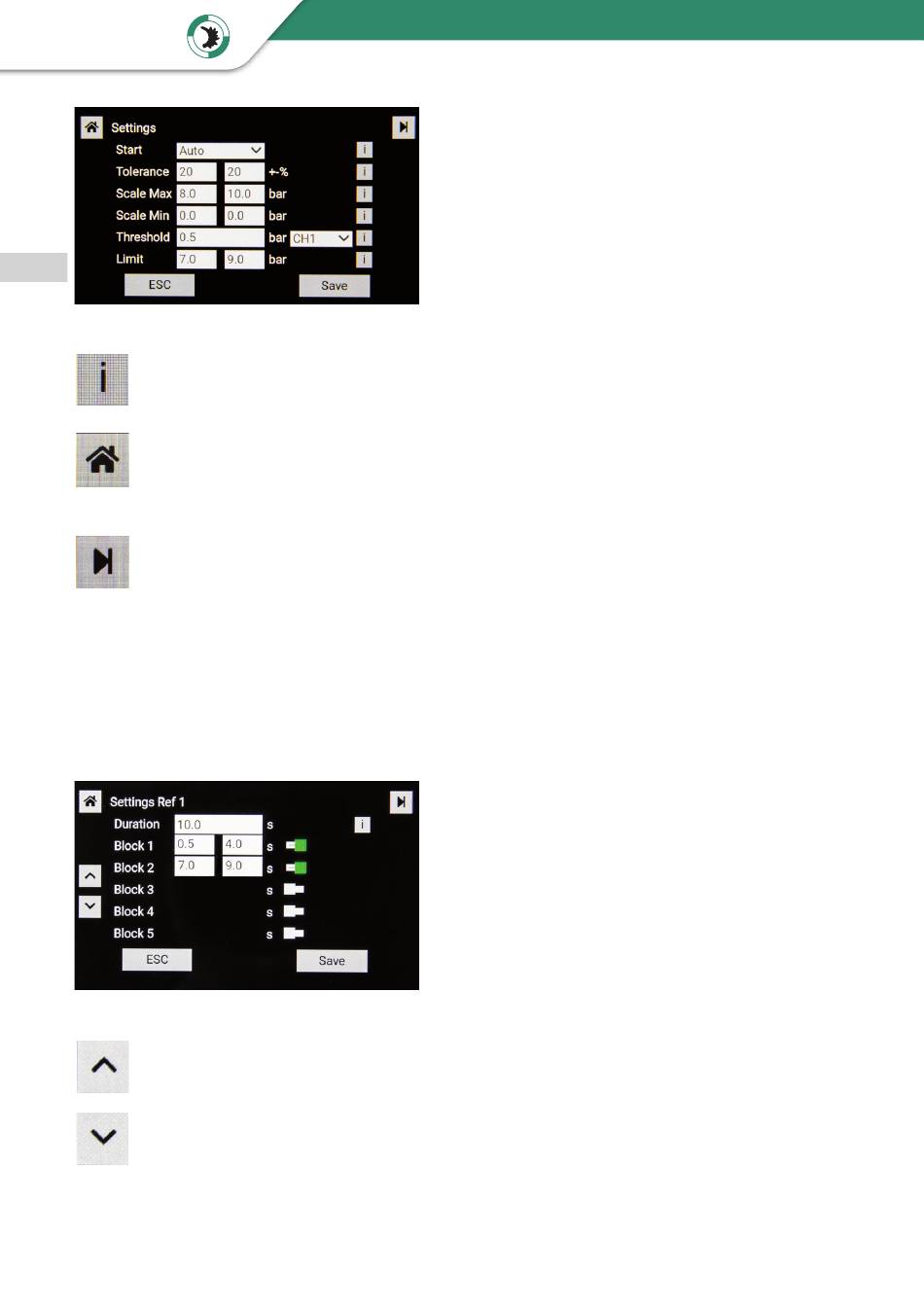

Settings page 1/5
The i-button shows the
explanation .
Tap the Home button to
return to the main menu .
Tap the Next button to go to
the next menu page .
Settings page 2/5
The UP and DOWN keys are
used to switch between the
reference curves .
The heading (here: Set-
tings Ref 1) indicates which
reference curve is currently
being processed .
Operating Manual QC-100 quality control
Start - selection of the activation type
- Auto: by threshold [bar]
- External: by an external control
- Easy: continuous measurement
Tolerance - adjustment of tolerance ranges
Tolerance for channel 1 - left column
Tolerance for channel 2 - right column
(from 0 to +/-100%)
Scale Max and Scale Min
Scaling of the display range of the axes .
Adjustable for each channel . min/max in bar
in the range of values from 0 . 0 to 40 bar .
Threshold - switching threshold for
measurement recording
When the threshold value is reached, recor-
ding starts (only when "Auto" is selected as
activation type . (Channel selectable)
Limit - max. values for overpressure
If exceeded, an error message is immediately
error message is output on the display and
at the interface .
Dras position in the measurement curve
screen:
Channel 1 - white-red line
Channel 2 - yellow-red line
In the second display window you can set the
parameters for up to 4 reference curves .
Select between the reference curves by pres-
sing the UP and DOWN keys .
Duration - duration of the acquisition period
The value range from 0 . 0 to 999 . 9 sec .
indicates the duration of the measurement
acquisition .
Block 1 bis 5
- Value range from 0 . 0 to 999 . 9 sec .
- Up to five evaluation blocks with their
time limits can be defined .
- The evaluation blocks can be individually
activated (green) or deactivated (gray) using
the slide switches to the right of the input
fields .
