If a USB flash drive is available at the corresponding
interface, each individual measurement is also saved
as a * . c sv file in a LOG directory . At each restart, a new
subdirectory with 00000n is created in the LOG direc-
tory, whereby the variable n is increased by the value
1 each time . In this directory 00000n the files 000x . c sv
are stored, whereby each stored file also leads to an
increase of the variable x by the value 1 .
The exported data has the following scope:
Measured values, upper limit of the reference curve with tolerance value, lower limit of
the reference curve with tolerance value, scaling of the time axis for dividing the measu-
rement points over this range, result .

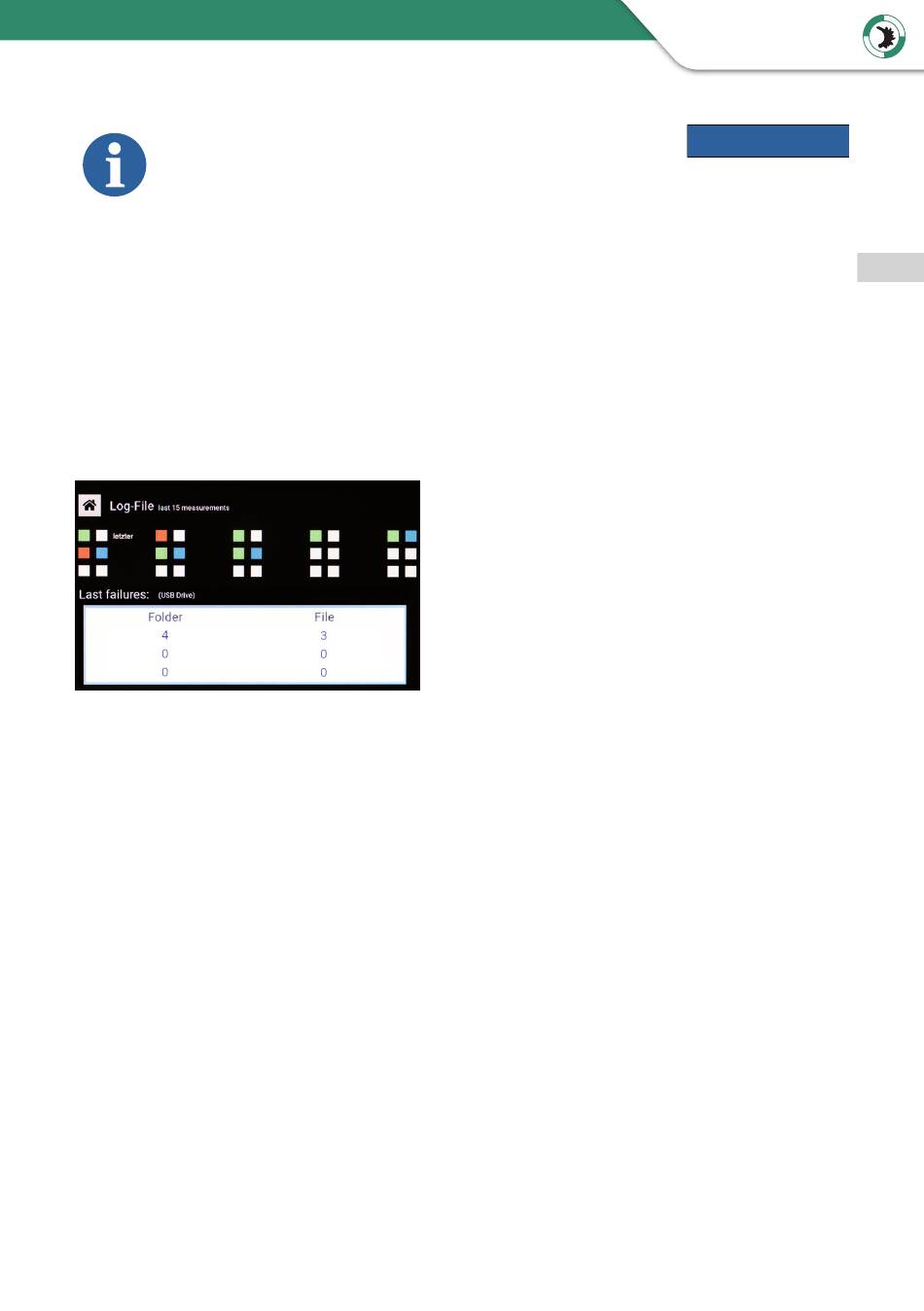

Each new measurement shifts the symbol field
pairs one block to the right . Of the two squares
of a symbol field pair, the first, left square
stands for the evaluation result (OK = green,
NOK = red) and the second, right square as an
indicator for the successful backup to USB (grey
= not saved, blue = saved) .
In the display area "last errors" folders and the
corresponding file of the last "NOK measure-
ment" are listed and named for identification .
The indication Folder 4, File 3 means the file
with the data of the faulty measurement is
located in LOG/000004/0003 . c sv
When the maximum memory values are
reached, the oldest data is overwritten .
