Selection of the reference curve by means of a Bit word
Bit word table:
Pin 14 Pin 15
0 0
EN
0 1
1 0
1 1

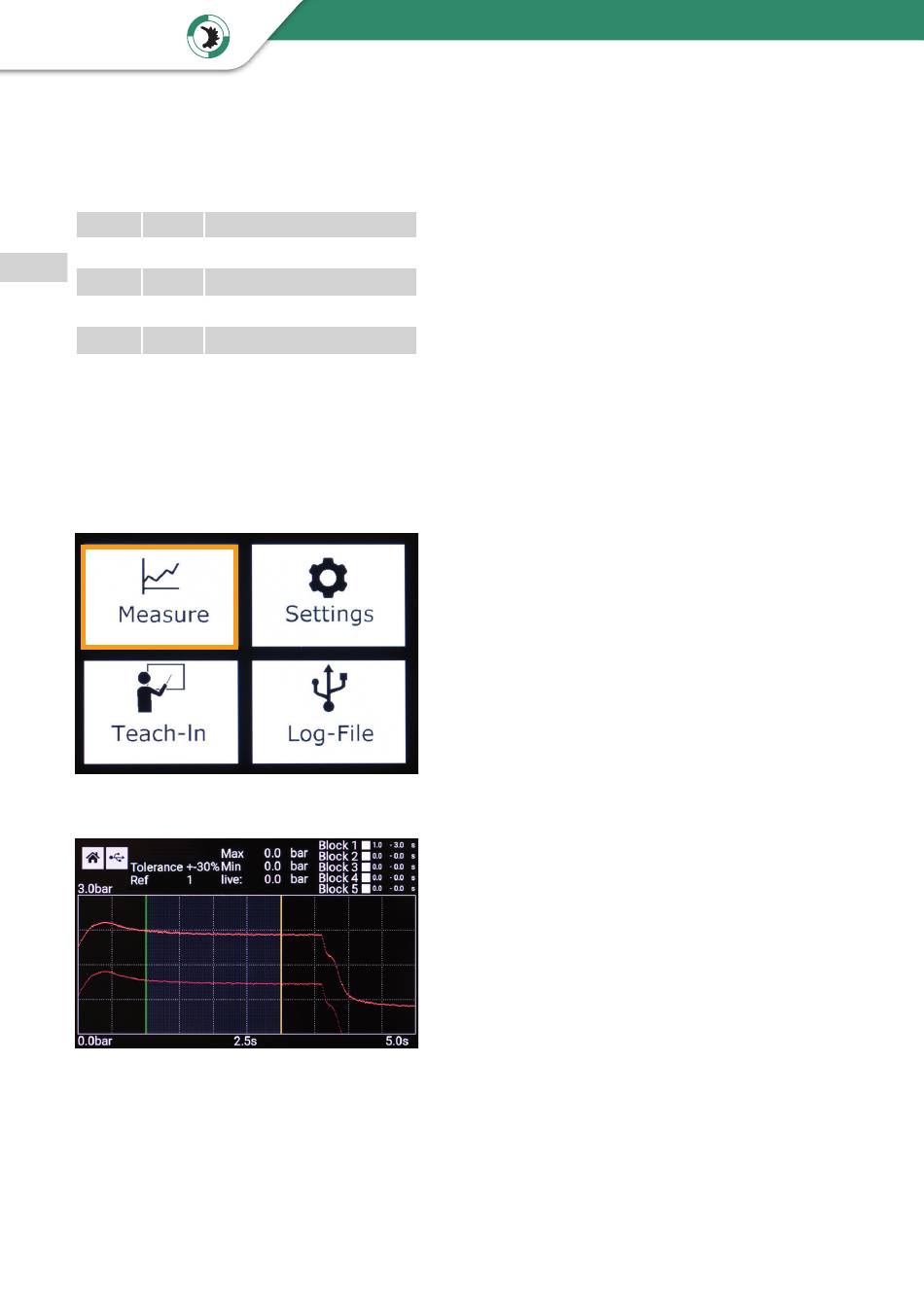

5.3 Measurement curve menu

Result at transfer
Ref 1
Ref 2
Ref 3
Ref 4
Operating Manual QC-100 quality control
To select the reference curves by means of a
bit-word the pins 14 (PROG2) and 15 (PROG1)
are to be used .
Acceptance/activation is done with pin 1
(ACTIVATE) before the start of the Recording of
measured values!
In the Curve menu, the current Measurement
data displayed and evaluated .
The current reference curve with permissible
percentage tolerances is displayed,
- if one of the 4 references was previously
stored and selected in the Teach-In menu, or
- was created with the help of a bit-word .
The selected reference curve is displayed as Ref
1, 2, 3 or 4 - here Ref 4 .
If the start condition (switching threshold or
external signal) is fulfilled, the trace is displayed
over the selected time range .
