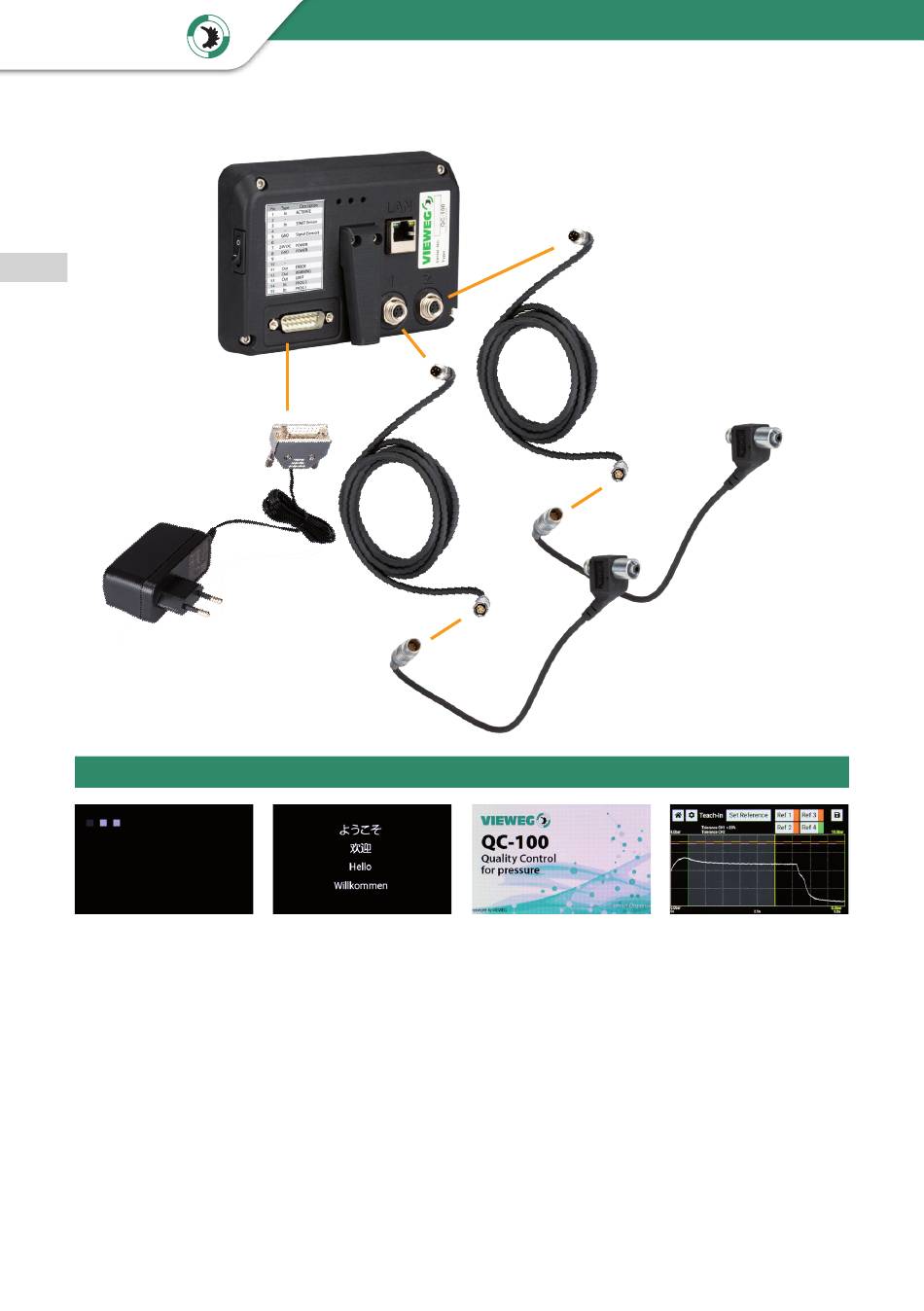

4.2 Connection diagram
EN
5 Menu structure
Bootup screen
About one second after switching on, the display first shows the boot screen with 3
squares in the upper left corner .
These provide information about the status during the boot or update process .
The squares are coded as follows:
Blue:
Red:
Green (static):
Green (flickering):
Welcome screen
USB connected
Error / no new software
CRC comparison successful
Software is saved
Operating Manual QC-100 quality control
flowplus 16
Sensor 1
Start screen
32
flowplus 16
Sensor 2
Measurement
screen
