Operating Manual QC-100 quality control

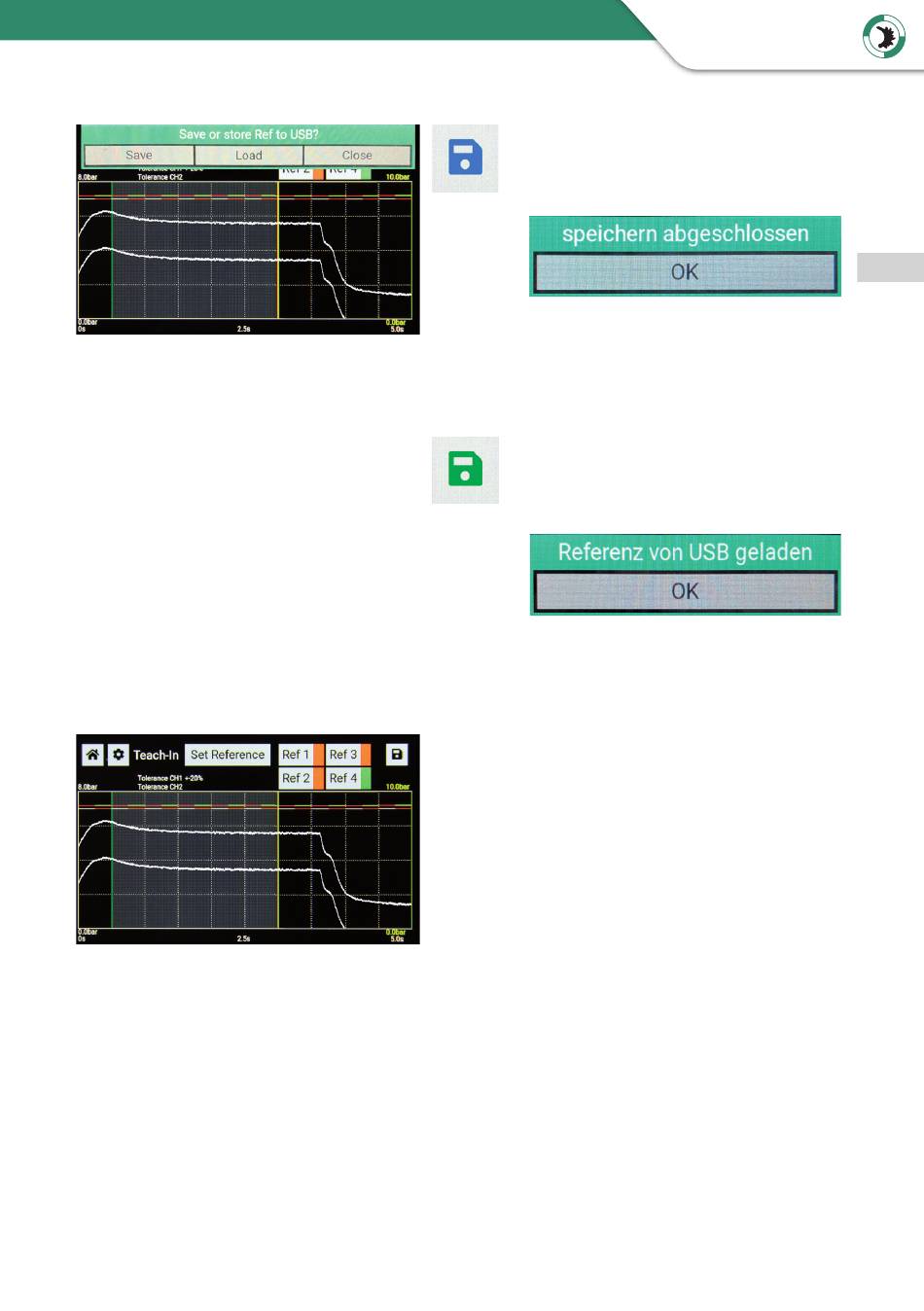

During saving to a USB stick, the
diskette symbol is displayed in blue .
At the end of saving, a message
appears whether the operation was
successful or not .
Tap OK
When loading a reference curve
from the USB flash drive, the
diskette symbol lights up green .
The message after successful
import of the reference curve has
to be confirmed .
Acknowledge the query and overwrite the
possibly already stored reference with the new
one .
The measurement curve is now stored and
selected at memory location Ref 4 .
Tolerances are displayed in white as a parallel
shift .
The reference curve to be used for the menu
item Measuring curve must be activated here,
green display, or can be selected via the inter-
face by a bit word and acceptance .
