Operating Manual QC-100 quality control

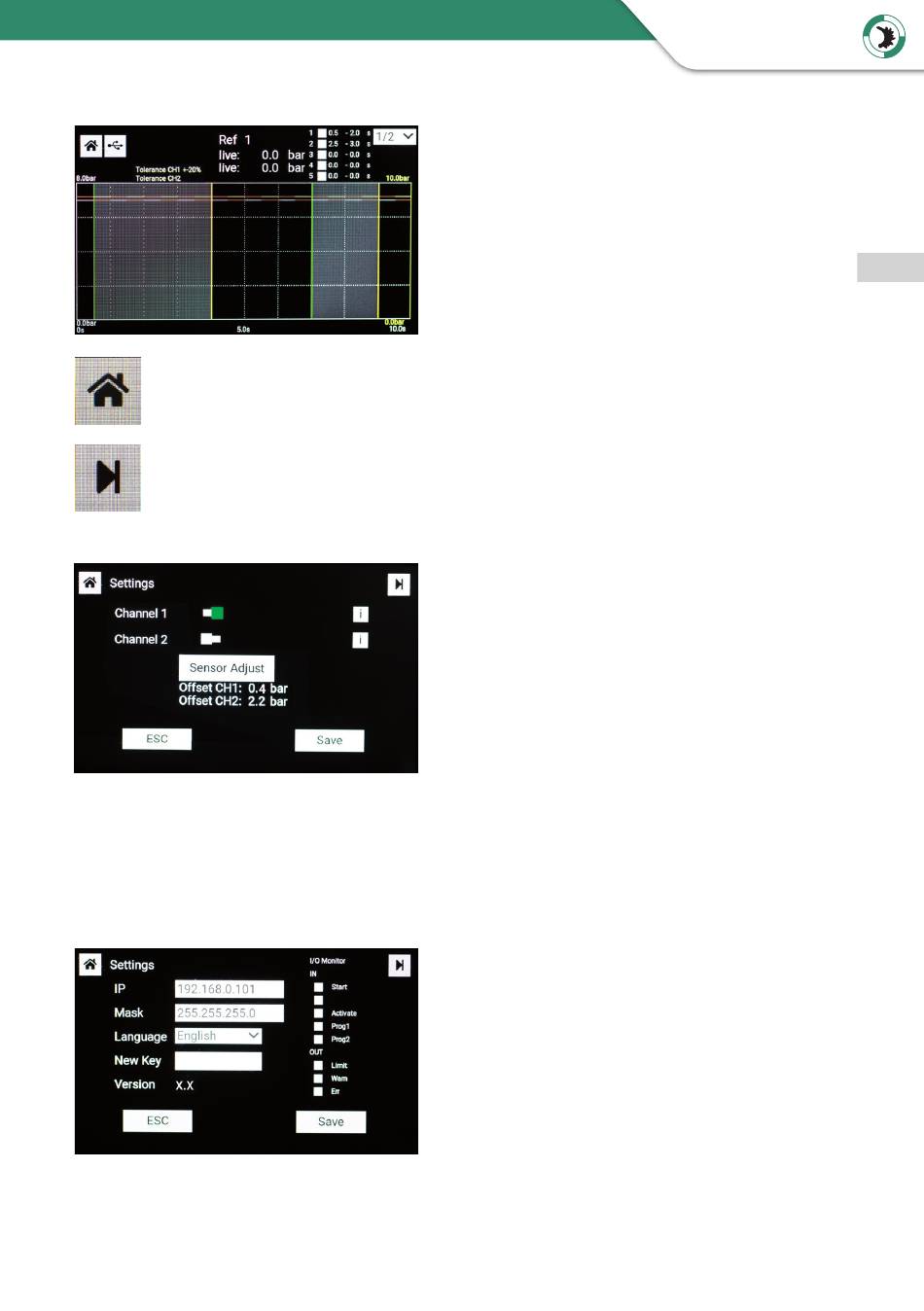

Tap the Home button to
return to the main menu .
By tapping the Next button
you will get to the next menu
page .
Settings page 3/5
Settings page 4/5
The smaller time limit is later shown in the gra-
phic as a green vertical line and the larger time
limit as a yellow vertical line . The evaluation
areas in between are highlighted to make them
easier to identify . The time limits of the blocks
may overlap .
The Y-axis for channel 1 is shown in white on
the left side and channel 2 in yellow on the
right side with the selected axis scaling .
In the third display window, you can activate or
deactivate the evaluations for the two channels
individually using the slide switchtches . .
Furthermore, at this point, the zero adjustment
for the pressure sensor is carried out . This is
useful e . g . when changing the sensor or sus-
pecting signal drift .
The current offset is displayed after the zero
adjustment, here 0 . 4 bar for channel 1 and 2 . 2
bar for channel 2 . This is useful if the sensor is
changed or the signal drift is suspected .
In the fourth menu window you will find the
network settings of the LAN interface (for rea-
ding out data), the language selection (German
/ English) and the I/O monitor .
The I/O monitor shows input signals (IN) and
output signals (OUT) by changing colors .
(gray = inactive, blue = active)
