INTRODUCTION

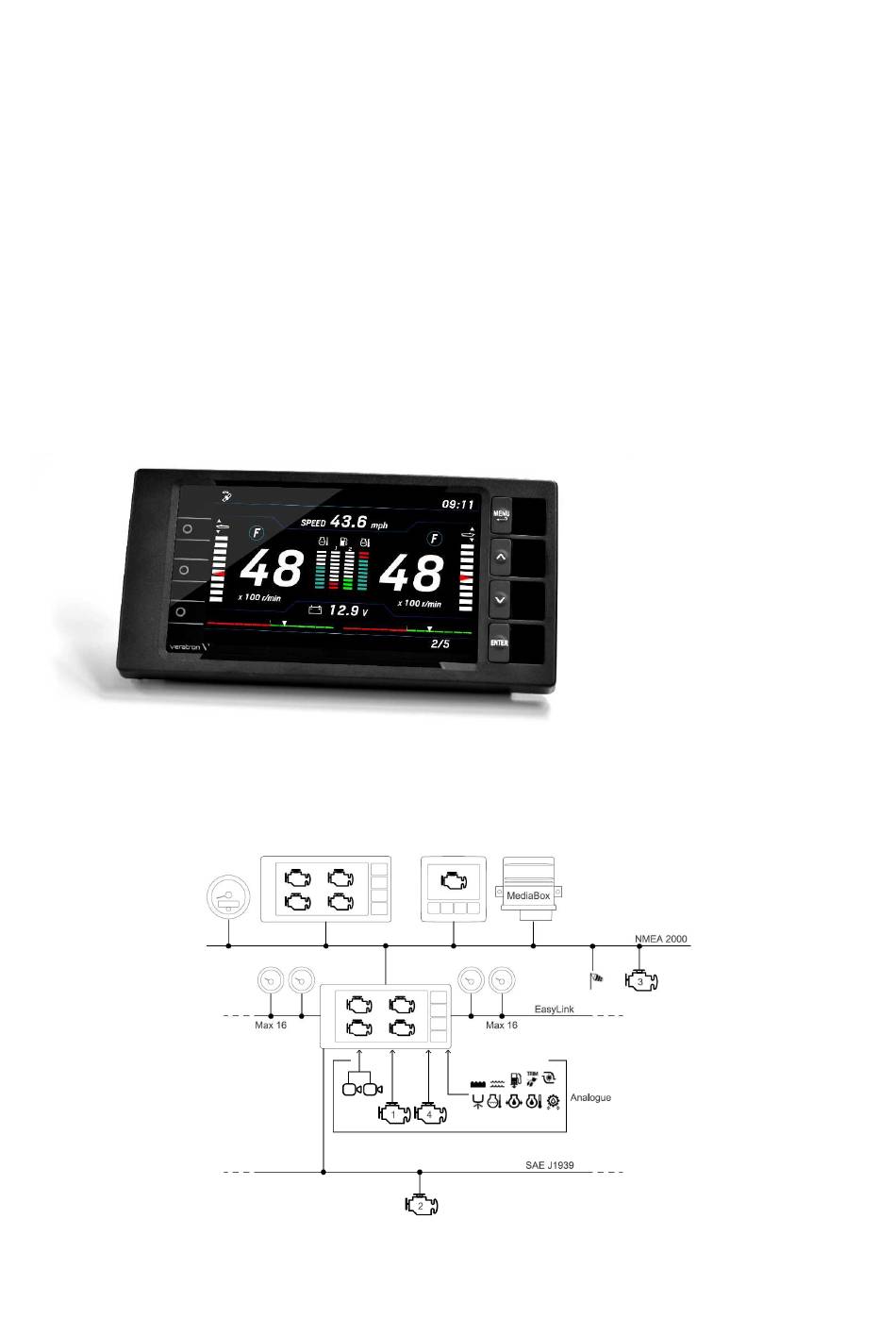

OceanLink Master 7" is a multifunction display that
lets you monitor engines and related sensor
parameters. Up to four engines can be connected
to the display.
The integrated NMEA 2000 gateway let you
acquire engine data also via analog sensors or SAE
J1939, to then convert and distribute them on
NMEA 2000 network.
ARCHITECTURE
Following is an example of an application with two displays, one used as a gateway and the other as a NMEA
2000 monitor.
The display manages up to six resistive sensors,
three voltage sensors and one digital alarm.
All data are also distributed on two EasyLink
channels to a maximum of 16 52mm OceanLink
gauges per channel.
NMEA 2000 connectivity lets you view navigation
data from other devices on the network, such as
wind, compass, GPS, speed, and depth data.
INTRODUCTION
A3C0090070000
