SENSORS'
CONFIGURATIONS
To access the sensors' settings, enter the HOME screen by pressing the MENU
button and select SENSOR CONFIG to access it.

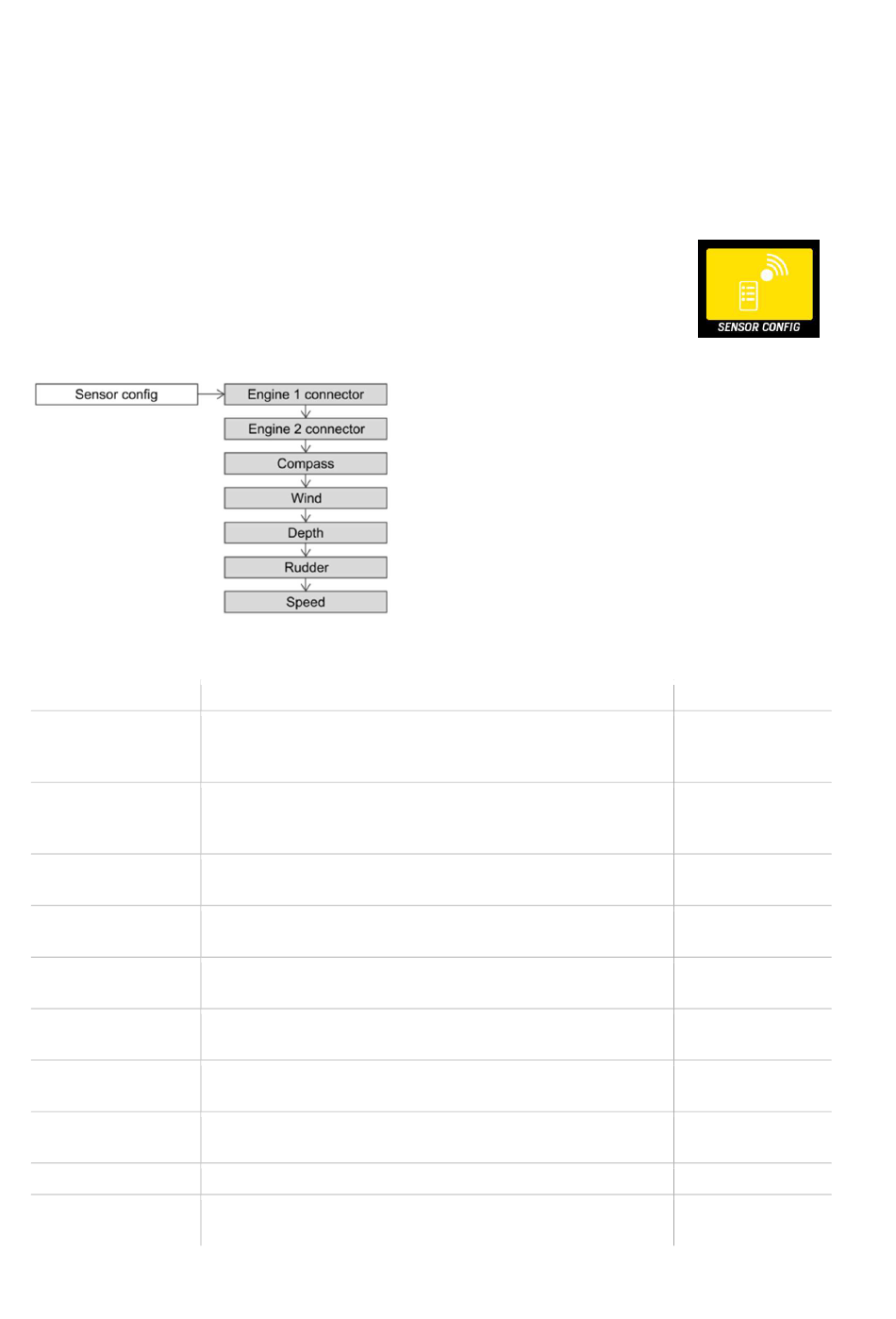

SYSTEM CONFIG STRUCTURE
Setting
Engine 1 connector
Engine 2 connector
Compass > Heading
offset
Compass > Variation Magnetic variation offset (polar difference between
Compass > Send
True Heading
Wind > Wind
direction offset
Wind > Send True
Wind
Depth
Rudder
Speed > Speed
correction factor
Configure the sensors connected to the display through the
analogue inputs of the Engine 1 connector (see
"Connections").
Configure the sensors connected to the display through the
analogue inputs of the Engine 2 connector (see
"Connections").
Angular offset between True North and the bow of the boat.
Magnetic North and True North)
Activate to let the display transmit the calculated True
Heading over NMEA 2000.
Angular offset between the wind sensor 0° position and the
longitudinal boat axis.
Activate to let the display transmit the internally calculated
True Wind data (TWA and TWS) over NMEA 2000.
Depth offset setup. Positive for depth below waterline,
negative for depth below keel.
Rudder offset setup.
Correction for the boat speed data received via NMEA 2000.
See "Calculate the speed offset".
Description
SENSORS CONFIGURATION
Possible values
-
-
± 0 - 180° (0°)
± 0 - 180° (0°)
Yes / No (No)
± 0 - 180° (0°)
Yes / No (No)
± 0 – 9.9m (2m)
± 0 - 120° (0°)
0 – 199.99 (1.00)
A3C0090070000
