11. Setting up the model helicopter

The helicopter battery can be charged using the included USB charging cable.
For photographic reasons, the charging cable is shown in wound condition at the top of Figure 5. Before
first use, remove the cable tie and fully unwind the charging cable.
a) Charging the helicopter battery
Connect the USB plug (1) of the charging cable to a USB
port that can supply a minimum current of 2 A (e.g. USB
power supply).
You can also use a suitable power bank instead.
Important!
The output current of the USB port must be at
least 2 A. Conventional USB ports of a PC or
laptop are usually not suitable.
Do not connect the USB cable to a USB hub
without its power supply as its charging power
is not sufficient.
The charging LED (2) on the USB plug starts to flash
slowly. Insert the reverse polarity protected plug of the
charging cable (3) into the three-pin balance connector (4)
of the helicopter battery (5).
When the charging LED (2) glows steadily, it means that the battery is charging.
When charging is complete and the helicopter battery is fully charged, the red LED of the USB plug goes out.
Once the helicopter battery is charged, disconnect the charging cable. Then disconnect the USB plug of the charging
cable from the USB power supply.
The two-pin cable with the BEC connector (see Figure 5, no. 6) is not required for charging. This connector
serves to connect the charged battery with the model helicopter.
Important!
Only use the included charging cable to charge the helicopter battery. Never attempt to charge the re-
chargeable battery with a different/incompatible charger! Only charge the helicopter battery when you can
monitor the charging process.

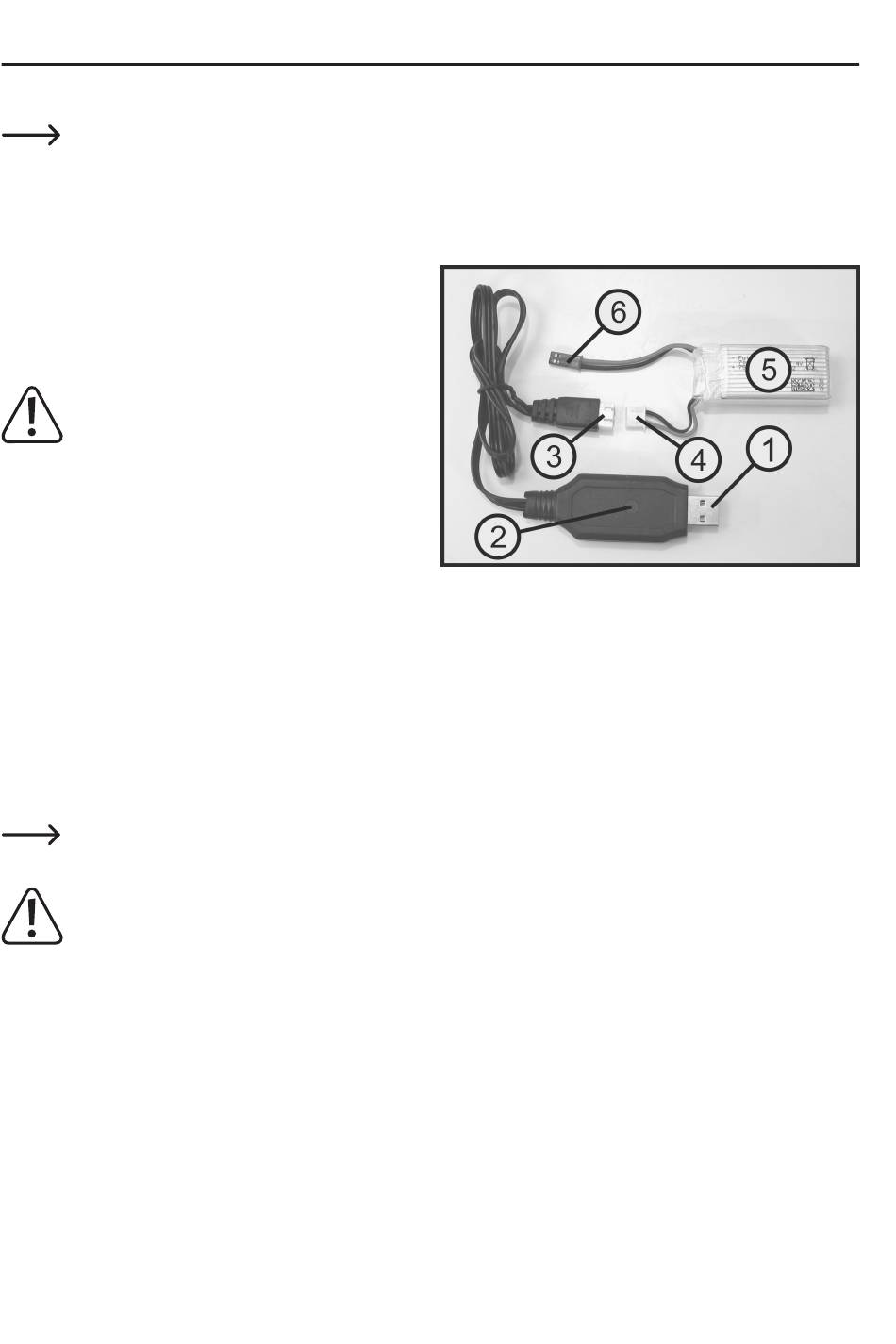

Figure 5
