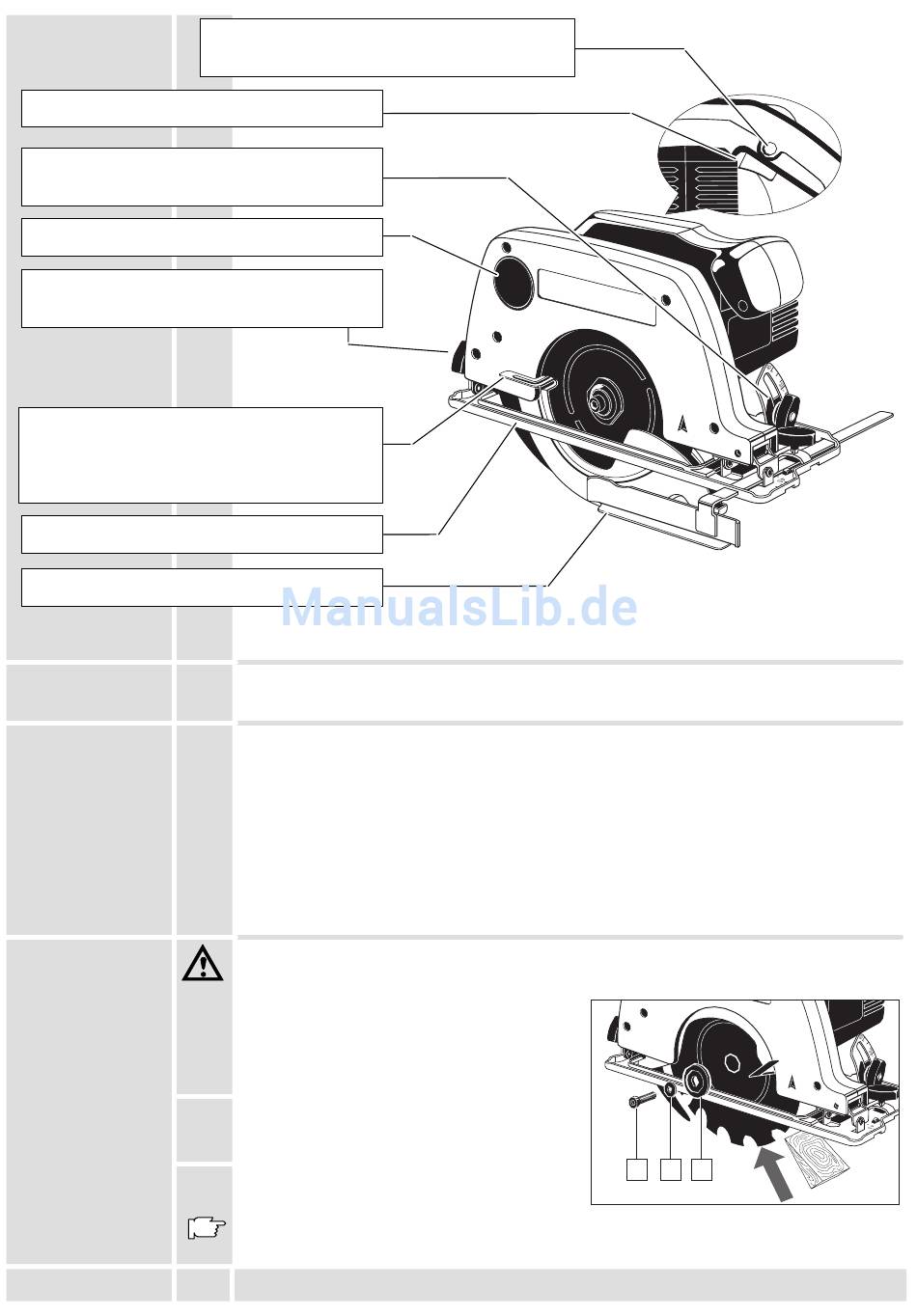

Brief description
On-/off switch
Cutting angle adjustment with cutting
angle scale.
Sawdust outlet
Cutting depth adjustment with millimeter
scale.
Protective swing cover to protect the user
against injuries. When the machine is
applied to the working material the cover
swings back automatically.
Guide plate
Parallel guide with millimeter scale.
Use
Mains
connection
Changing the
saw blade
ENGLISH
Switch lock – prevents the machine from
being switched on accidentally.
This electronic circular saw can cut lengthways and mitre accurately in wood,
plastic, and aluminium.
Connect only to a single-phase AC current supply and only to the mains voltage
specified on the rating plate. Connection to sockets without earth protection is
possible as the appliance features protective insulation to DIN 57 740/ VDE 0740
and CEE 20. Radio suppression complies with the European standard EN 55014.
When fitting the plug, make sure that the brown (live) wire of this appliance is
connected to the plug terminal marked L or coloured red, and the blue (neutral) wire
of this appliance is connected to the plug terminal marked N or coloured black.
Under no circumstances must the wires of this appliance be connected to the earth
terminal of the plug marked either E, with the earth symbol or coloured green or
green/yellow.
Always disconnect the plug from the socket before carrying out any work on the
machine.
1.
Swing the movable protective cover back
and hold it steady. Hold the work spindle
still by means of a wooden wedge
between the saw blade teeth and the
guide plate.
Unscrew the tension screw
with the
2.
hexagonal spanner. Remove the
washer  and the spring washer .
3.
Fit the new saw blade by following the
above steps in the reverse order.
The arrow on the saw-blade must point in the same direction as the direction of
rotation arrow.
2
Modifications: Text, diagrams and data are correct at the time of
printing. In the interest of continuous improvement of our
products, technical specifications are subject to alteration without
prior notice.
