Maintenance (Specialist); Uvc Tube Replacement - Helios KWL HygroBox Montage- Und Betriebsvorschrift

Operating and installation instructions

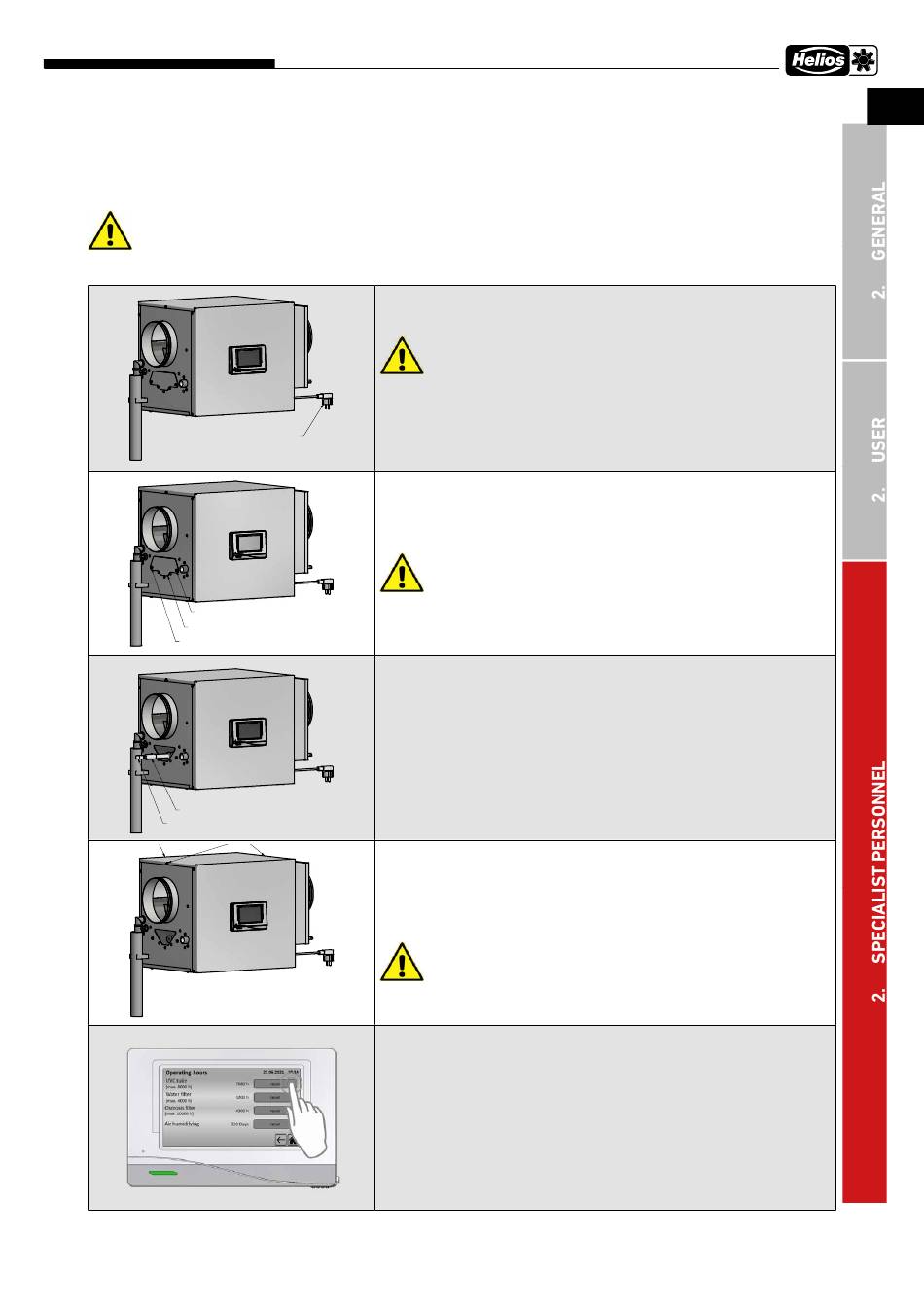

16. Maintenance (specialist)

16.1. UVC tube replacement

Please note! The UVC tube replacement must only be carried out by specialists.
After the display message "UVC – end of service life reached", the following worksteps must be carried out:
Only original spare parts may be used (see Chapter 17).
Innendeckel
Schrauben
stecker
Rotor
Gehäusefront
Verbindungsstecker
Connector
Deckel
Ansicht von oben
Z
Wasserwanne
UVC-Röhre
n
richtige Position
ail Z
Zulaufschlauch
Osmoseeinheit
KWL Hygrobox KWL HBX EH/WW
®
Netzstecker
Mains plug
Screws Schrauben
Abdeckung
Cover
Screws Schrauben
Wasserwanne
UVC-Röhre
UVC tube
UVC-Röhre
Schrauben
richtige Position
Detail Z
Before opening the unit, disconnect the mains plug and protect the
unit against restart!
Never look into the illuminated UVC tube without eye protection!
Schrauben
Abdeckung
Schrauben
Rotor
Remove the two screws of the cover and remove the cover.
Sharp sheet edges (risk of injury).
UVC-Röhre
Verbindungsstecker
Schrauben
Deckel
Ansicht von oben
Z
Draw out the UVC tube with the rubber grommet 5 cm, remove the connecting
plug and dispose of the UVC tube in an environmentally sound fashion.
Detail Z
Insert the new UVC tube into the dip tube, fasten the connecting plug and seal
the dip tube tight again with the rubber grommet. Then fix the cover again and
re-establish the power supply.
Sharp sheet edges (risk of injury).
Zulaufschlauch
Osmoseeinheit Reset the operating time of the UVC tube
(see Chapter 9.4.1).
39
UVC-Röhre
Verbindungsstecker
Schrauben
Deckel
Ansicht von oben
Z
Detail Z
richtige Position
Zulaufschlauch
Osmoseeinheit
EN
D
Zulau
Os
