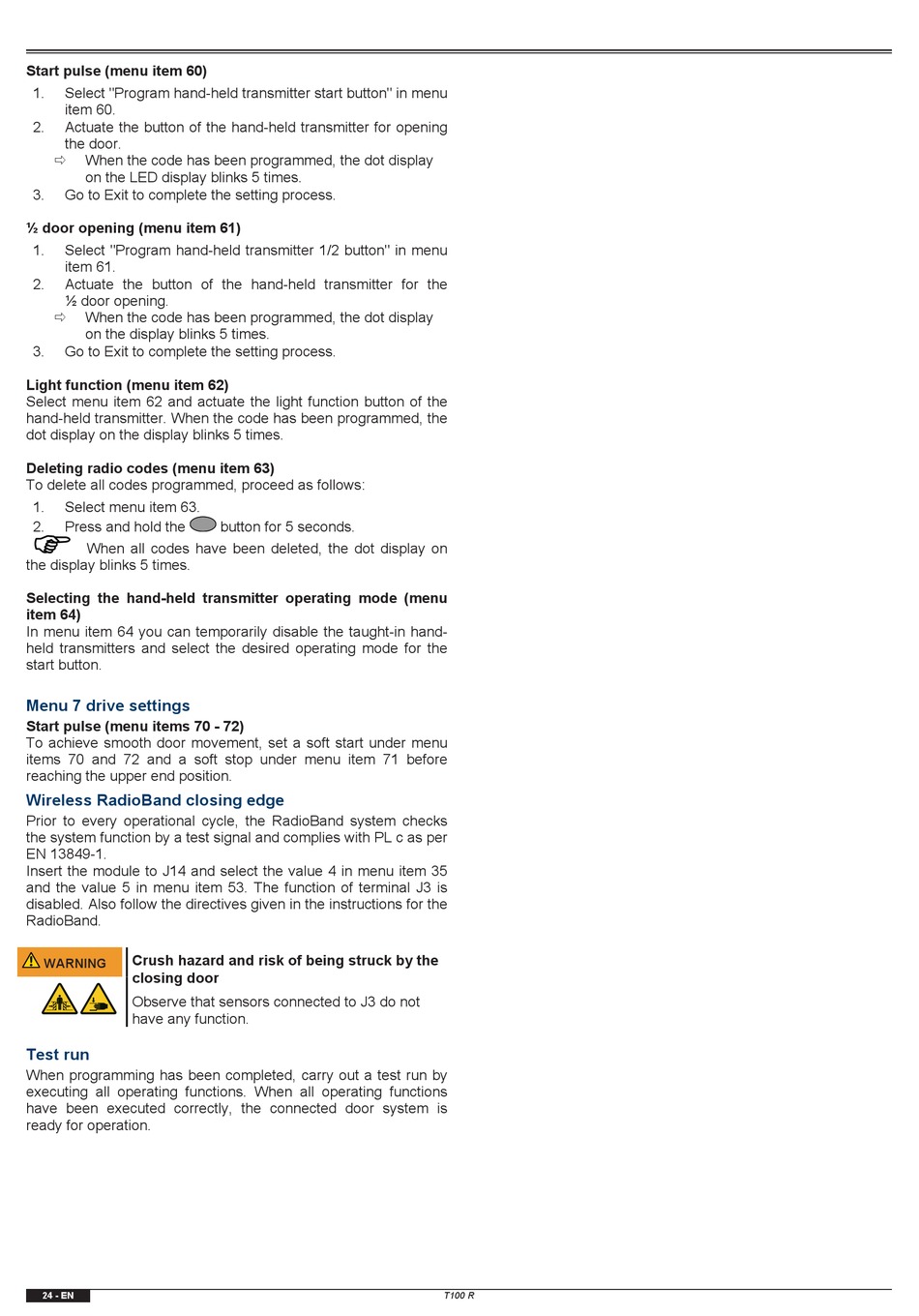

Start pulse (menu item 60)
1. Select "Program hand-held transmitter start button" in menu
item 60.
2. Actuate the button of the hand-held transmitter for opening
the door.
ð
When the code has been programmed, the dot display
on the LED display blinks 5 times.
3. Go to Exit to complete the setting process.
½ door opening (menu item 61)
1. Select "Program hand-held transmitter 1/2 button" in menu
item 61.
2. Actuate the button of the hand-held transmitter for the
½ door opening.
ð When the code has been programmed, the dot display
on the display blinks 5 times.
3. Go to Exit to complete the setting process.
Light function (menu item 62)
Select menu item 62 and actuate the light function button of the
hand-held transmitter. When the code has been programmed, the
dot display on the display blinks 5 times.
Deleting radio codes (menu item 63)
To delete all codes programmed, proceed as follows:
1. Select menu item 63.
2. Press and hold the
When all codes have been deleted, the dot display on
the display blinks 5 times.
Selecting the hand-held transmitter operating mode (menu
item 64)
In menu item 64 you can temporarily disable the taught-in hand-
held transmitters and select the desired operating mode for the
start button.
Menu 7 drive settings
Start pulse (menu items 70 - 72)
To achieve smooth door movement, set a soft start under menu
items 70 and 72 and a soft stop under menu item 71 before
reaching the upper end position.
Wireless RadioBand closing edge
Prior to every operational cycle, the RadioBand system checks
the system function by a test signal and complies with PL c as per
EN 13849-1.
Insert the module to J14 and select the value 4 in menu item 35
and the value 5 in menu item 53. The function of terminal J3 is
disabled. Also follow the directives given in the instructions for the
RadioBand.
Crush hazard and risk of being struck by the
WARNING
closing door
Observe that sensors connected to J3 do not
have any function.
Test run
When programming has been completed, carry out a test run by
executing all operating functions. When all operating functions
have been executed correctly, the connected door system is
ready for operation.
24 - EN
button for 5 seconds.
