1. Setup and use of the Combi Heater

1.1. Assembly of parts

1.1.1. Ball valve

Before installing the ball valve wrap Teflon tape around the nipple's thread to ensure water
proof insulation. When attaching and detaching the ball valve make sure that the valve's
handle is in closed position (see Fig. 1).

1.1.2. Steamer cover

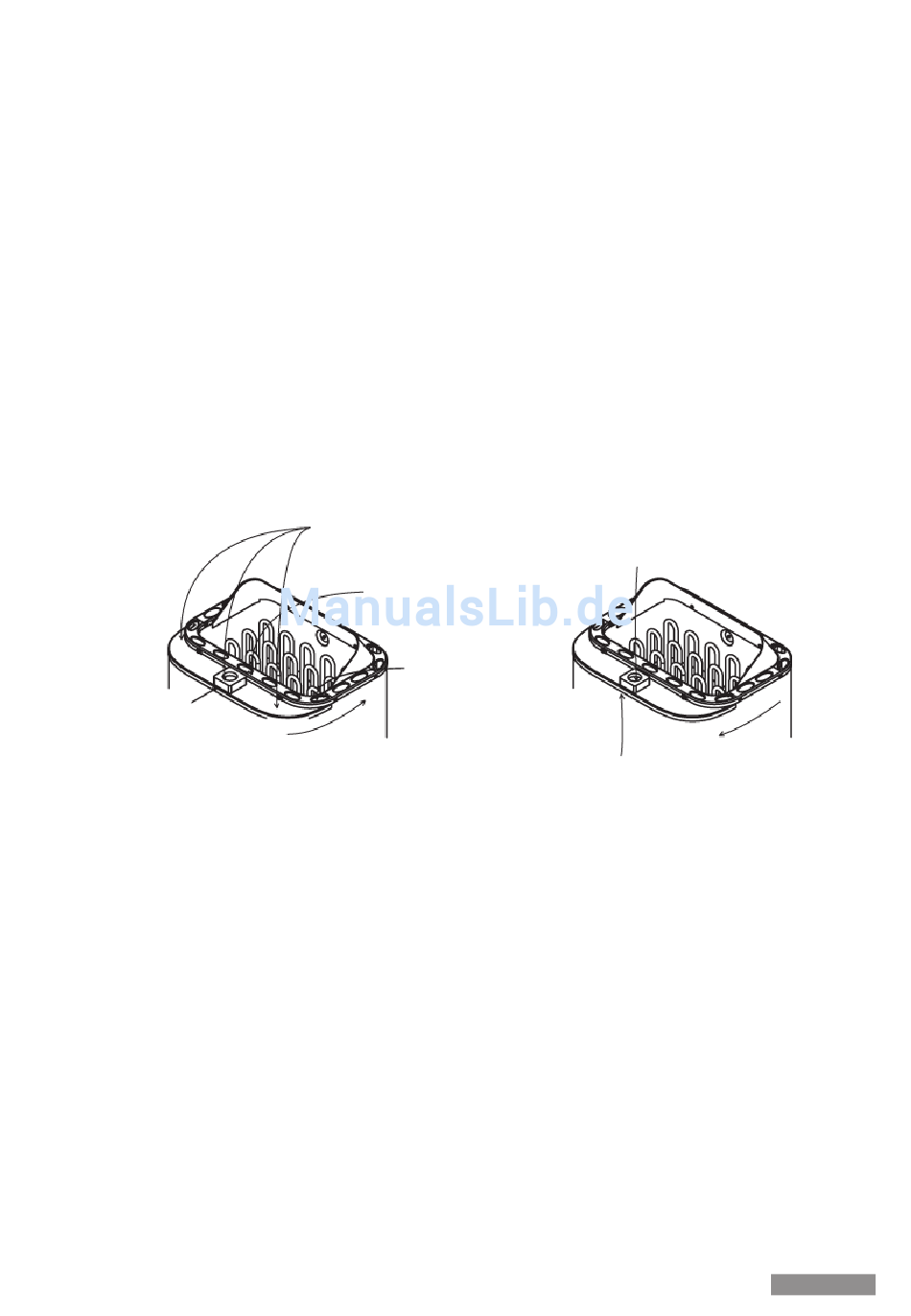

To detach or attach the steamer cover, follow the instruction given in Figure 2.
Montieren Sie die Verdampferabdeckung wie aufgezeigt
Attach the steamer cover as shown
Abb. 2
Fig. 2
1. Drücken (nicht auslassen bis
die Verdampferabdeckung
komplett montiert wurde)
Push (don't release until
steamer cover is fully attached)

1.2. Loading the Combi Heater with stones

The main purpose of the stones in the Combi Heater is to store enough energy to efficiently
vaporize the water thrown on top of the stones to maintain correct humidity in the sauna
room. The stones must be removed at least once a year or every 500 hours which ever occurs
first. All stone crumbles must be removed from the heater then load new stones as described
hereinafter. To verify the required amount of stones, see technical data in Figure 9.
2. Runterdrücken
Push down
Drücken Sie die
Verdampferabdeckung
unter den Rahmen
Push the steamer cover
down below the frame
Rahmen
Frame
4.
Einrasten
Slide inward
Entfermen Sie die Verdampferabdeckung wie aufgez eigt
Remove the steamer cover as shown
2. Runterdrücken
Push down
1. Herausheben
Lift up
3. Herausziehen
Pull out
