3. Installation

3.1.

Mounting the Combi Heater on the wall

It is recommended that the Combi Heater is placed on the wall nearest to the door. The air
circulation created by the door should work together with the hot air generated by the
heater. For safety and convenience, follow the minimum safety distances as provided in Fig. 6.
Do not install the Combi Heater to the floor or wall niche. Install only one heater in a Sauna
Room. The temperature safety sensor has to be mounted above the heater. Check the manual
of the external control unit for further instructions.
Abb. 6
Fig. 6
Be sure to build a strong foundation for the mounting rack (e.g. cross struts in sauna
paneling) or reinforce the wall with a thick board to prevent the heater from collapsing.
Attach the heater to the wall with the aid of the mounting rack. Screws are provided for
fastening of the rack to the wall. To affix the heater to the rack, lift the heater and fit the nuts
that are placed at the back of the heater to the slots on both sides at the top of the rack.
Lock at least one of the side screws to prevent the heater from being accidentally moved.

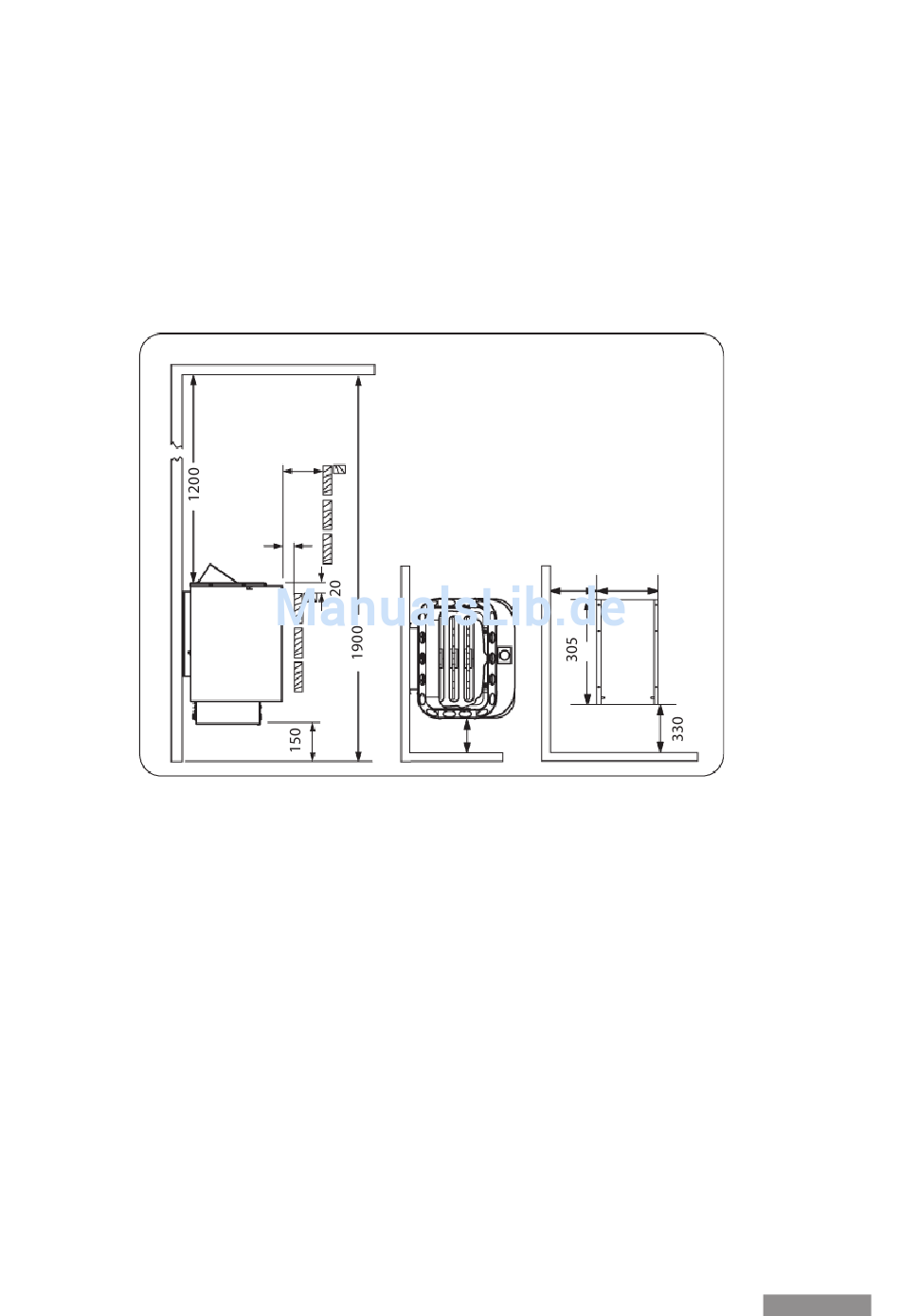

Mindestsicherheitsabstände (mm)
Minimum Safety Distances (mm)
20
Installation Wandmontagegestell
Wall Mounting Rack Installation
5
160 225
80
