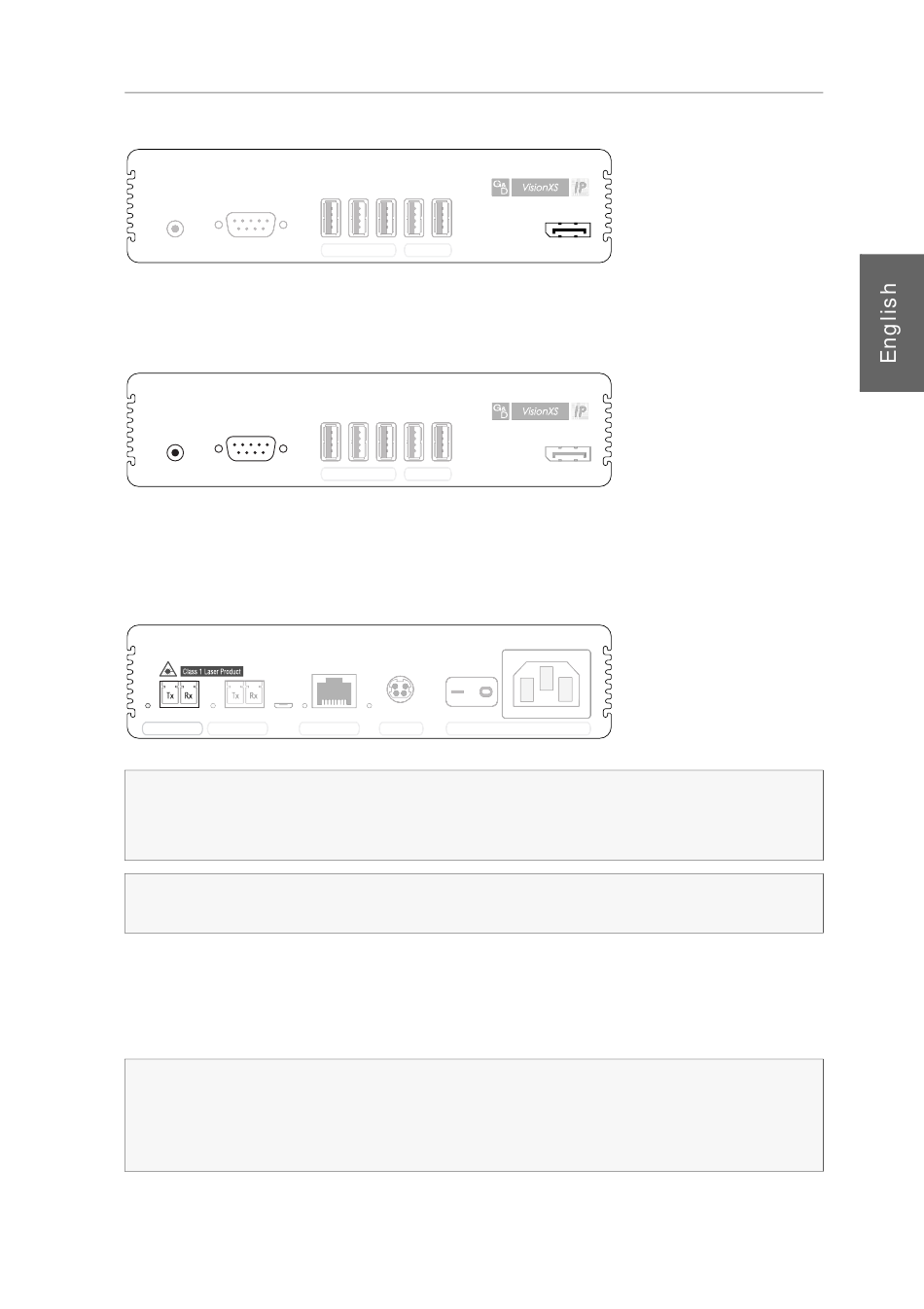

Connecting the console monitor
Line Out Line Out Serial Serial
Connect the console monitor.
DP Out:
Connecting audio and RS232 interfaces (depending on model)
Line Out Serial
Line Out: Connect the speakers or another audio output device.
Serial: Connect the serial end device to this interface.
Establishing a connection to the Gigabit Ethernet
Transmission 1 Transmission 2 Transmission 2 Service Service
IMPORTANT:
The device uses components with laser technology which comply
with laser class 1.
Never stare directly into the beam when wearing optical instruments!
NOTE:
Remove the protection caps from the Transmission interfaces and the cable
plugs.
Transmission 1|Tx: Insert the LC plug of a fibre optic cable, which is available as
accessory, into this interface. Connect the other end to the Gigabit Ethernet.
Transmission 1|Rx: Insert the LC plug of a fibre optic cable, which is available as
accessory, into this interface. Connect the other end to the Gigabit Ethernet.
NOTE:
The activation of the
interface.
Use this interface to establish a redundant transmission connection (link aggregation)
with the Gigabit network.
Generic Generic Keyb./Mouse Keyb./Mouse
Keyb./Mouse Keyb./Mouse
Generic Generic
Network Network Pwr Main Power Pwr Main Power
Transm. Redundancy
DP Out
DP Out DP Out
Red. Power Red. Power
feature activates the
G&D VisionXS-IP-F-DP-UHR · 12
Installation
Transmission 2
