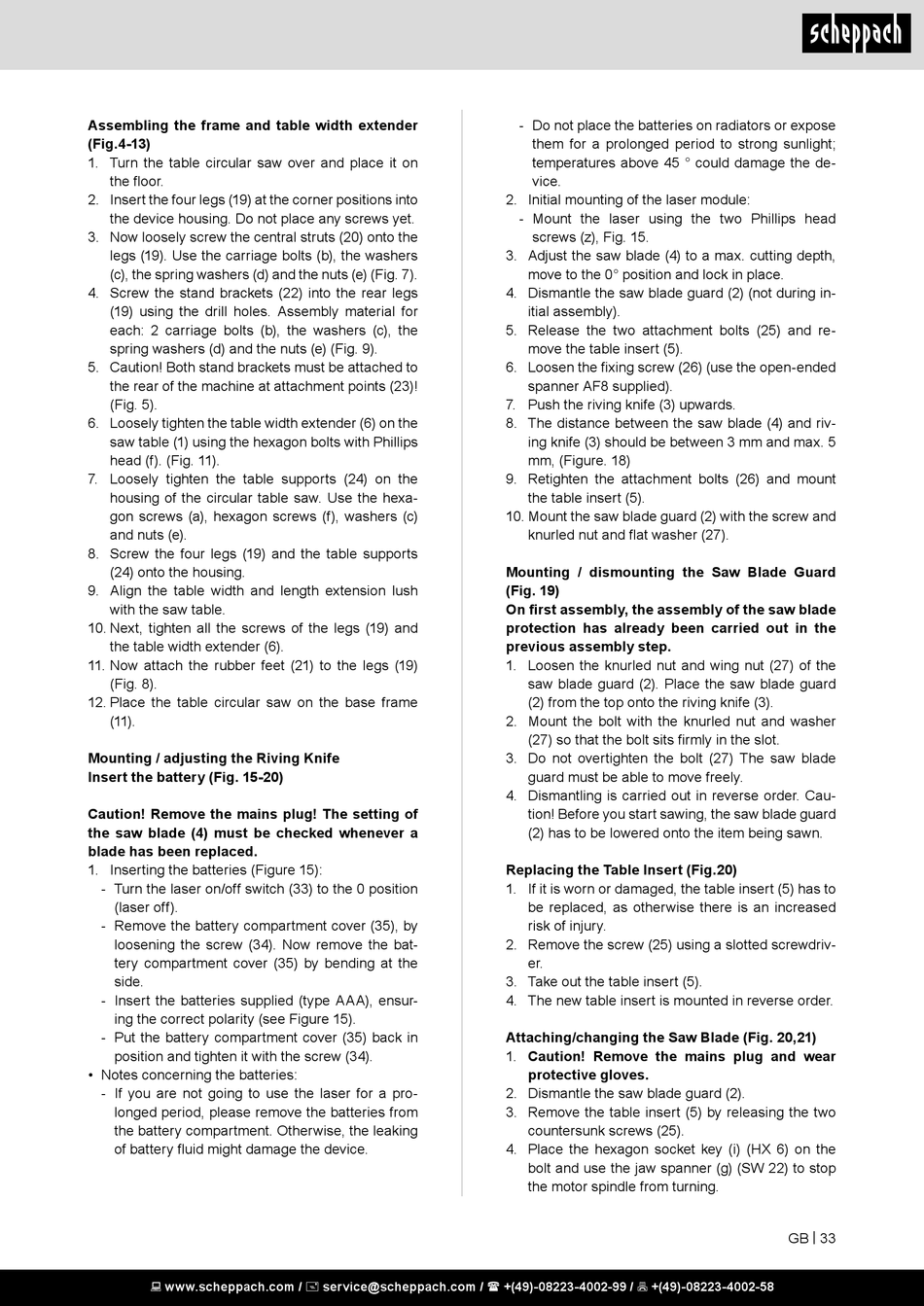

Assembling the frame and table width extender
(Fig.4-13)
1. Turn the table circular saw over and place it on
the floor.
2. Insert the four legs (19) at the corner positions into
the device housing. Do not place any screws yet.
3. Now loosely screw the central struts (20) onto the
legs (19). Use the carriage bolts (b), the washers
(c), the spring washers (d) and the nuts (e) (Fig. 7).
4. Screw the stand brackets (22) into the rear legs
(19) using the drill holes. Assembly material for
each: 2 carriage bolts (b), the washers (c), the
spring washers (d) and the nuts (e) (Fig. 9).
5. Caution! Both stand brackets must be attached to
the rear of the machine at attachment points (23)!
(Fig. 5).
6. Loosely tighten the table width extender (6) on the
saw table (1) using the hexagon bolts with Phillips
head (f). (Fig. 11).
7. Loosely tighten the table supports (24) on the
housing of the circular table saw. Use the hexa-
gon screws (a), hexagon screws (f), washers (c)
and nuts (e).
8. Screw the four legs (19) and the table supports
(24) onto the housing.
9. Align the table width and length extension lush
with the saw table.
10. Next, tighten all the screws of the legs (19) and
the table width extender (6).
11. Now attach the rubber feet (21) to the legs (19)
(Fig. 8).
12. Place the table circular saw on the base frame
(11).
Mounting / adjusting the Riving Knife
Insert the battery (Fig. 15-20)
Caution! Remove the mains plug! The setting of
the saw blade (4) must be checked whenever a
blade has been replaced.
1. Inserting the batteries (Figure 15):
- Turn the laser on/off switch (33) to the 0 position
(laser off).
- Remove the battery compartment cover (35), by
loosening the screw (34). Now remove the bat-
tery compartment cover (35) by bending at the
side.
- Insert the batteries supplied (type AAA), ensur-
ing the correct polarity (see Figure 15).
- Put the battery compartment cover (35) back in
position and tighten it with the screw (34).
• Notes concerning the batteries:
- If you are not going to use the laser for a pro-
longed period, please remove the batteries from
the battery compartment. Otherwise, the leaking
of battery fluid might damage the device.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
- Do not place the batteries on radiators or expose
them for a prolonged period to strong sunlight;
temperatures above 45 ° could damage the de-
vice.
2. Initial mounting of the laser module:
- Mount the laser using the two Phillips head
screws (z), Fig. 15.
3. Adjust the saw blade (4) to a max. cutting depth,
move to the 0° position and lock in place.
4. Dismantle the saw blade guard (2) (not during in-
itial assembly).
5. Release the two attachment bolts (25) and re-
move the table insert (5).
6. Loosen the fixing screw (26) (use the open-ended
spanner AF8 supplied).
7. Push the riving knife (3) upwards.
8. The distance between the saw blade (4) and riv-
ing knife (3) should be between 3 mm and max. 5
mm, (Figure. 18)
9. Retighten the attachment bolts (26) and mount
the table insert (5).
10. Mount the saw blade guard (2) with the screw and
knurled nut and flat washer (27).
Mounting / dismounting the Saw Blade Guard
(Fig. 19)
On first assembly, the assembly of the saw blade
protection has already been carried out in the
previous assembly step.
1. Loosen the knurled nut and wing nut (27) of the
saw blade guard (2). Place the saw blade guard
(2) from the top onto the riving knife (3).
2. Mount the bolt with the knurled nut and washer
(27) so that the bolt sits firmly in the slot.
3. Do not overtighten the bolt (27) The saw blade
guard must be able to move freely.
4. Dismantling is carried out in reverse order. Cau-
tion! Before you start sawing, the saw blade guard
(2) has to be lowered onto the item being sawn.
Replacing the Table Insert (Fig.20)
1. If it is worn or damaged, the table insert (5) has to
be replaced, as otherwise there is an increased
risk of injury.
2. Remove the screw (25) using a slotted screwdriv-
er.
3. Take out the table insert (5).
4. The new table insert is mounted in reverse order.
Attaching/changing the Saw Blade (Fig. 20,21)
1. Caution! Remove the mains plug and wear
protective gloves.
2. Dismantle the saw blade guard (2).
3. Remove the table insert (5) by releasing the two
countersunk screws (25).
4. Place the hexagon socket key (i) (HX 6) on the
bolt and use the jaw spanner (g) (SW 22) to stop
the motor spindle from turning.
