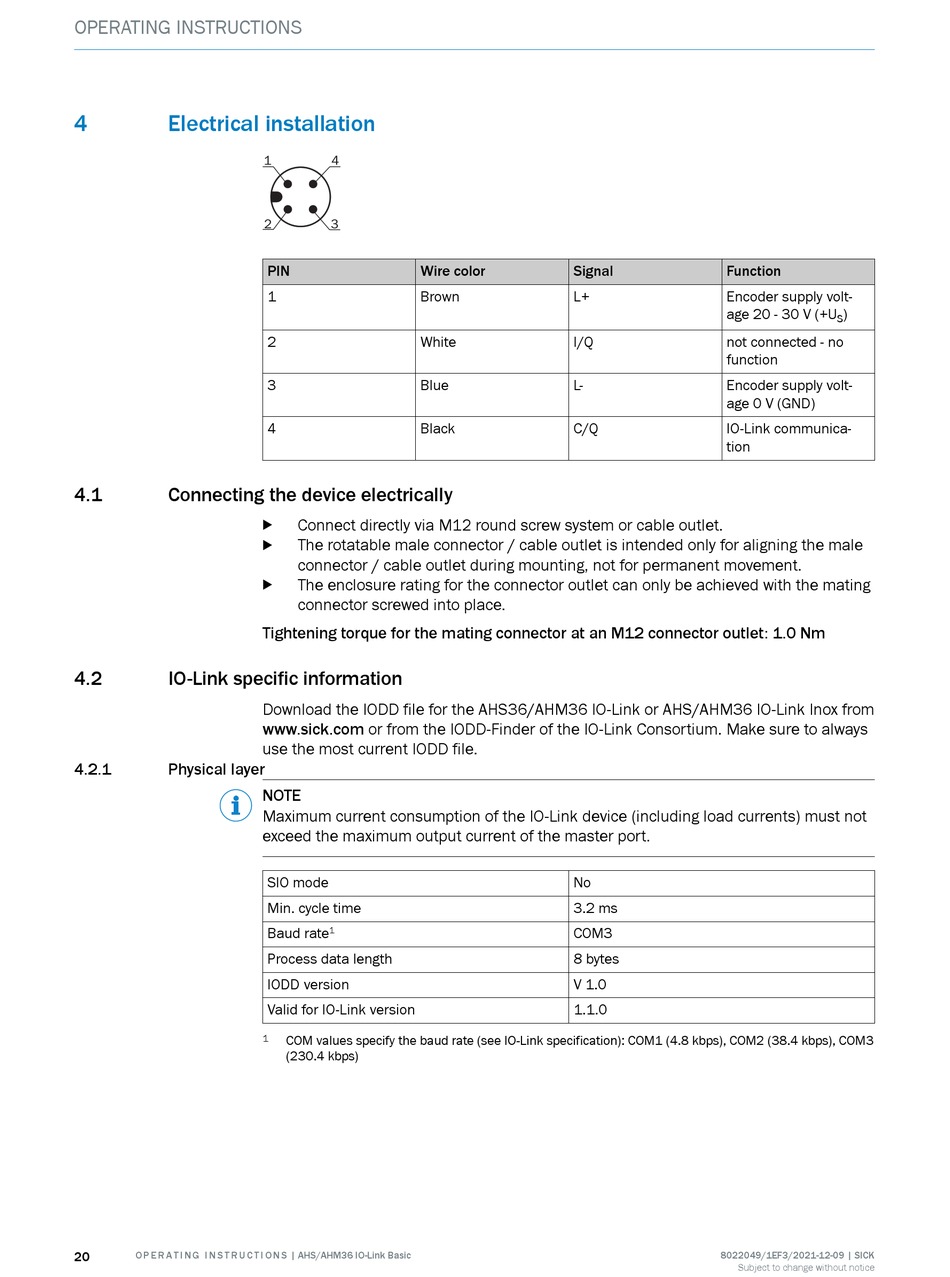

Electrical installation

4.1 Connecting the device electrically
4.2 IO-Link specific information
4.2.1 Physical layer
20 O P E R A T I N G I N S T R U C T I O N S | AHS/AHM36 IO-Link Basic
1 4
2 3
PIN Wire color
1 Brown
2 White
3 Blue
4 Black
Connect directly via M12 round screw system or cable outlet.
b
The rotatable male connector / cable outlet is intended only for aligning the male
b
connector / cable outlet during mounting, not for permanent movement.
The enclosure rating for the connector outlet can only be achieved with the mating
b
connector screwed into place.
Tightening torque for the mating connector at an M12 connector outlet: 1.0 Nm
Download the IODD file for the AHS36/AHM36 IO-Link or AHS/AHM36 IO-Link Inox from
www.sick.com or from the IODD-Finder of the IO-Link Consortium. Make sure to always
use the most current IODD file.
NOTE
Maximum current consumption of the IO-Link device (including load currents) must not
exceed the maximum output current of the master port.
SIO mode
Min. cycle time
Baud rate
1
Process data length
IODD version
Valid for IO-Link version
1 COM values specify the baud rate (see IO-Link specification): COM1 (4.8 kbps), COM2 (38.4 kbps), COM3
(230.4 kbps)
Signal Function
L+ Encoder supply volt‐
age 20 - 30 V (+U
I/Q not connected - no
function
L- Encoder supply volt‐
age 0 V (GND)
C/Q IO-Link communica‐
tion
No
3.2 ms
COM3
8 bytes
V 1.0
1.1.0
