OPERATING INSTRUCTIONS
18 O P E R A T I N G I N S T R U C T I O N S | AHS/AHM36 IO-Link Basic
3
1

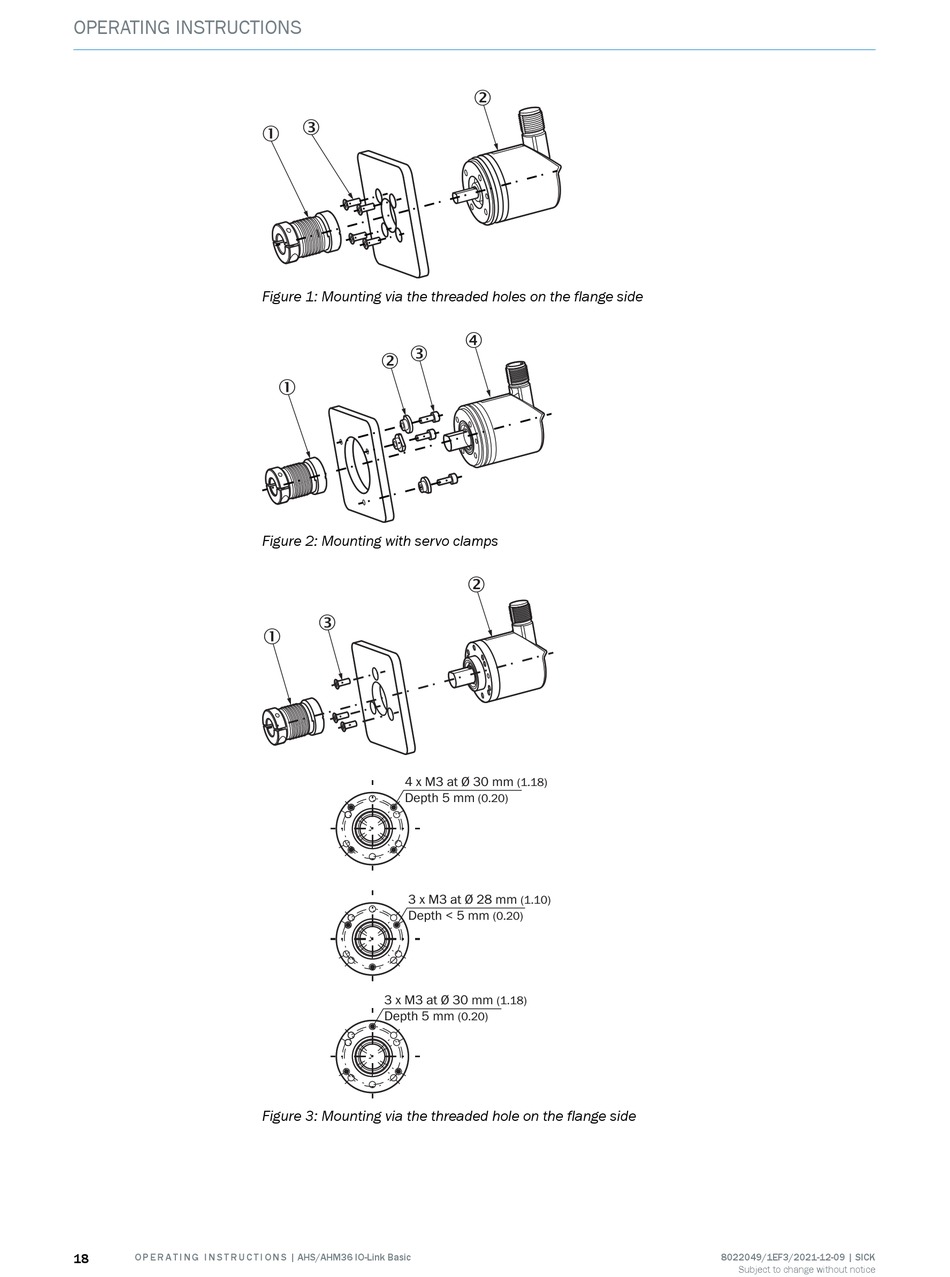

Figure 1: Mounting via the threaded holes on the flange side
3
2
1
Figure 2: Mounting with servo clamps
3
1
4 x M3 at Ø 30 mm
Depth 5 mm
3 x M3 at Ø 28 mm
Depth < 5 mm
3 x M3 at Ø 30 mm
Depth 5 mm
Figure 3: Mounting via the threaded hole on the flange side
2
4
2
(1.18)
(0.20)
(1.10)
(0.20)
(1.18)
(0.20)
