Hydraulic Plan - Nussbaum SPRINTER MOBIL 2500 Betriebsanleitung Und Prüfbuch

11

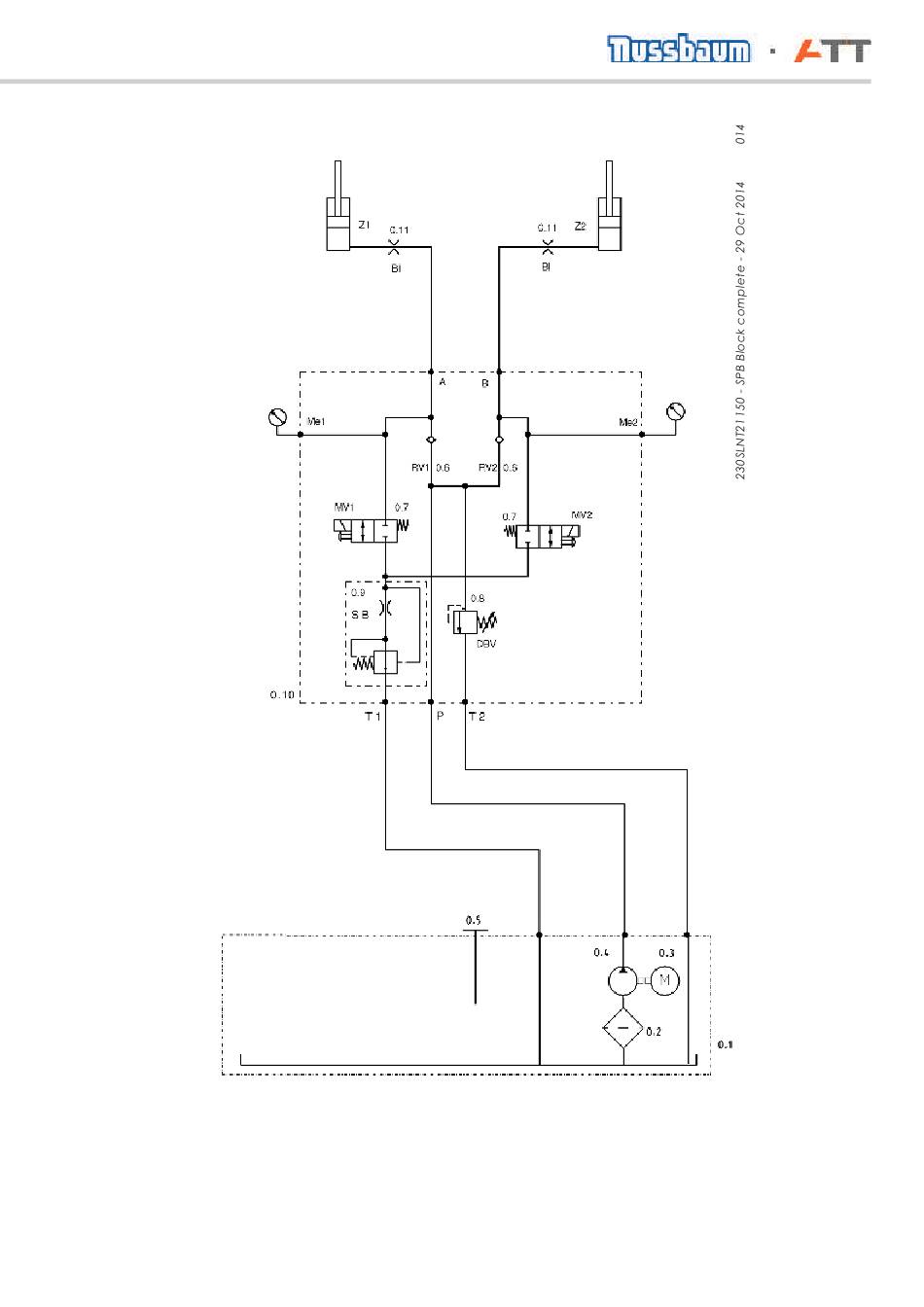

Hydraulic plan

No. Designation:
0.1 Oil container
0.2 Suction ilter
0.3 Mechanical pump
0.4 Motor
0.5 Oil dipstick
0.6 Check valve
20110005 OPI 08.12.2015
All manuals and user guides at all-guides.com
Drawing number
130053
SPRINTER MOBIL - HYMAX PRO
0.7 Double-acting valve
0.8 Pressure relief valve
0.9 Lowering brake 10 l ⅜"
0.10 Hydraulic block
0.11 Bezel 1.2 mm
980853
155211
981063
230SLNT21150
