Nussbaum SPRINTER MOBIL 2500 Betriebsanleitung Und Prüfbuch Seite 26

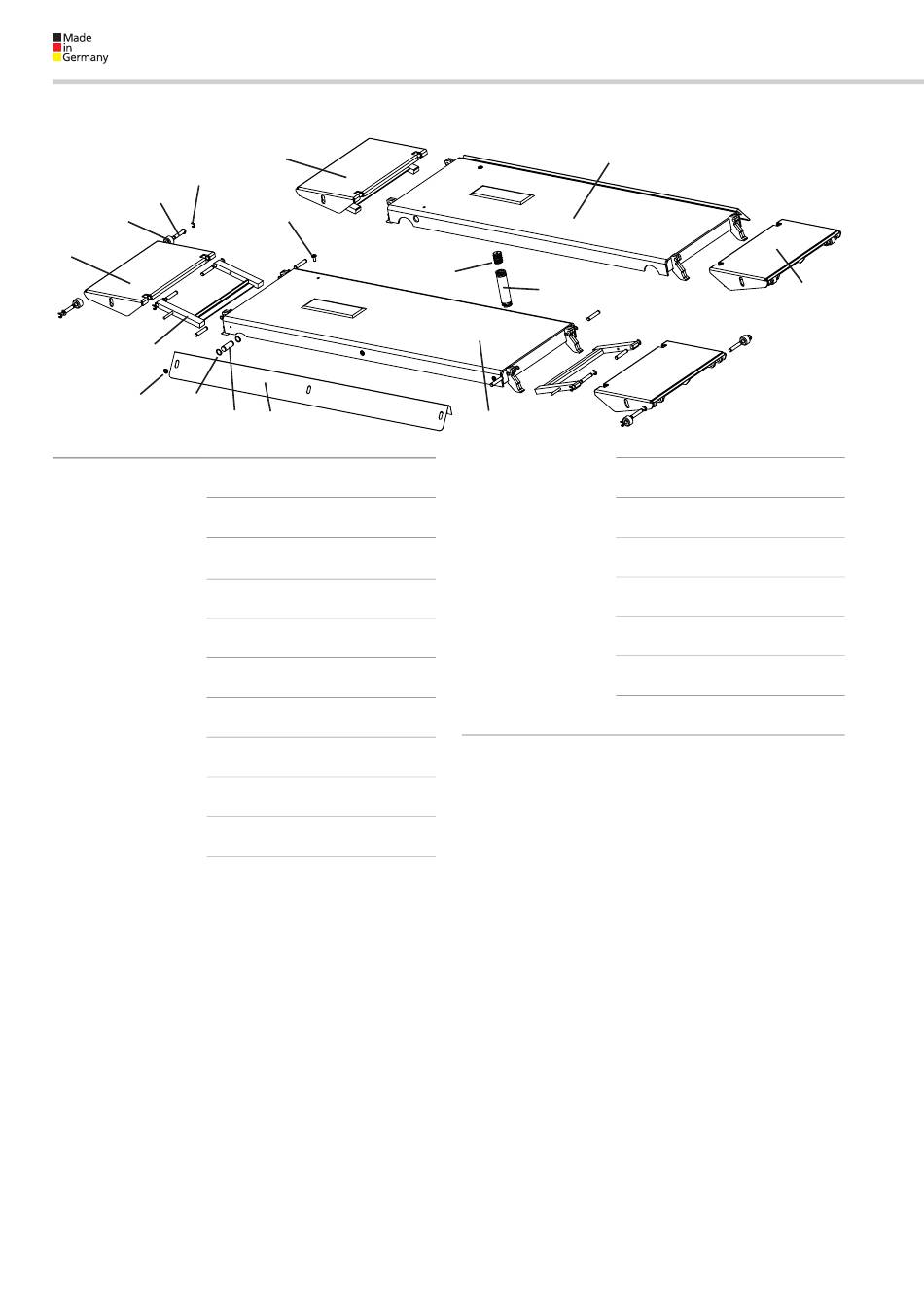

50.xx Rails
9
16
17
4
1
14 7
11
.1 025SPB68618 LEVER COMPLETE
.2 025SPB68719 RAMP COMPLETE 300 MM
.3 025SPB68729 RAMP COMPLETE 300 MM
.4 025SPB68720 RAMP, WELD PART
.5 025SPB78117 RAIL ON DOWNSTREAM SIDE,
WELD PART
.6 025SPB78017 RAIL ON COMMAND SIDE,
WELD PART
.7 9471-20X1_2 SAFETY RING
.8 9471-11X1 -
.9 96799-10 LOCKING WASHER
.10 025SPB29115 GUARD
26
All manuals and user guides at all-guides.com
3
15
13
10
6
12
5
.11 025SPB68117 TOP BOLT
.12 9DFD-357A2ZN PRESSURE SPRING
.13 025SPB06165 SPRING HOLDER
.14 9SEM08X008ZN FLANGED BUTTON HEAD SCREW
.15 9SEM08X020ZN FLANGED BUTTON HEAD SCREW
.16 025SPB68627 BOLTS
.17 025SPB68628 ROLLER
SPRINTER MOBIL - HYMAX PRO
2
20150413 025spb68123_et
08.12.2015 20110005 OPI
