5.1

Lifting the vehicle

!
Warning! The hydraulic lines may not be driven
over. This can lead to damage and, if leaks re-
sult, even to the lift sinking.
!

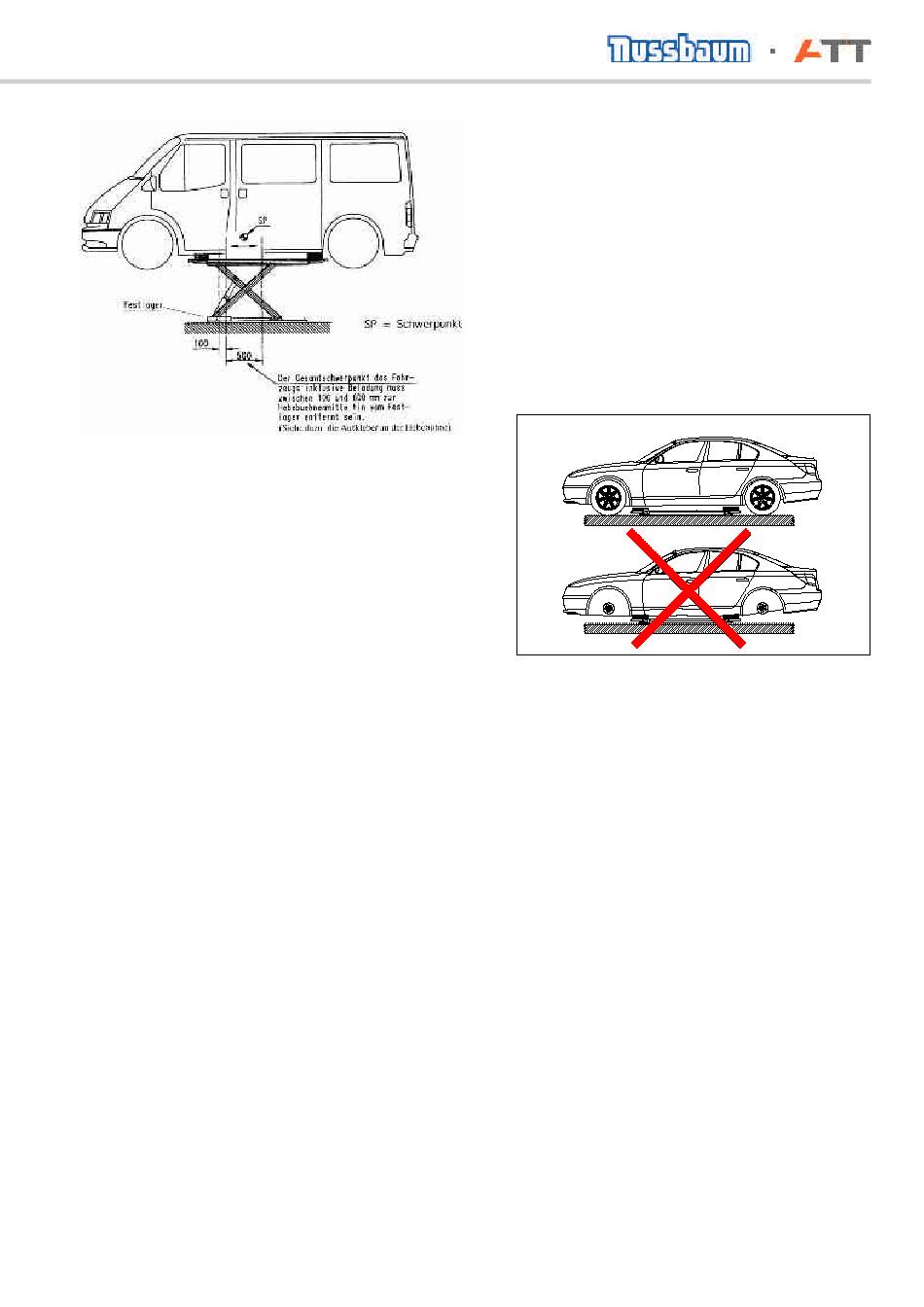

The total centre of mass must be considered.
i
If required, use the ramps for safe acceptance
of the vehicle.
• Secure the vehicle against rolling; pull the hand
brake, engage the gears.
• Inspect the hazardous area.
No person or object may stand in the working
area of the lift, or on the lift.
• Switch on controls. Turn the main switch (2) to
position „1" (see igure 007).
• Position polymer overlays below the points spe-
ciied by the vehicle manufacturer. The polymer
overlays may not be placed on edge, otherwise
the vehicle could fall.
• Lift the vehicle. Push the „LIFT" (3) button.
• If the wheels are not blocked, interrupt the lifting
process and check for proper seating of the po-
lymer overlays.
• Raise the vehicle to the desired working height.
• Then position the operating unit in such a way
that the lexible hose package (protective and
hydraulic hose) cannot be damaged by external
inluences (such as being driven over by the load).
20110005 OPI 08.12.2015
All manuals and user guides at all-guides.com
010
SPRINTER MOBIL - HYMAX PRO
5.2

Lowering the vehicle

!
Warning! The hydraulic lines may not be driven
over. This can lead to damage and, if leaks re-
sult, even to the lift sinking.
• Inspect the hazardous area. No person or object
may stand in the working area of the lift, or on the
lift.
!
The vehicles cannot be lowered into the lowest
position without wheels. Otherwise the lift can-
not raise the load using its own force. The vehi-
cle could be damaged.
• Lower the vehicle to the desired working height.
Push the „LOWER" button (4) (see igure 007).
• The system is equipped with an optional CE-STOP
During „LOWER" (4) to the lowest position, the
system stops at a height of 300 mm.
To allow the system to lower further, it is necessa-
ry to release the „LOWER" button (4) and press it
again.
A signal tone sounds until the system has rea-
ched the lowest position.
• The entire lowering process must be observed.
• If the lift is in the detectable lowest position, re-
move the polymer overlays and drive the vehicle
from the lift.
015
