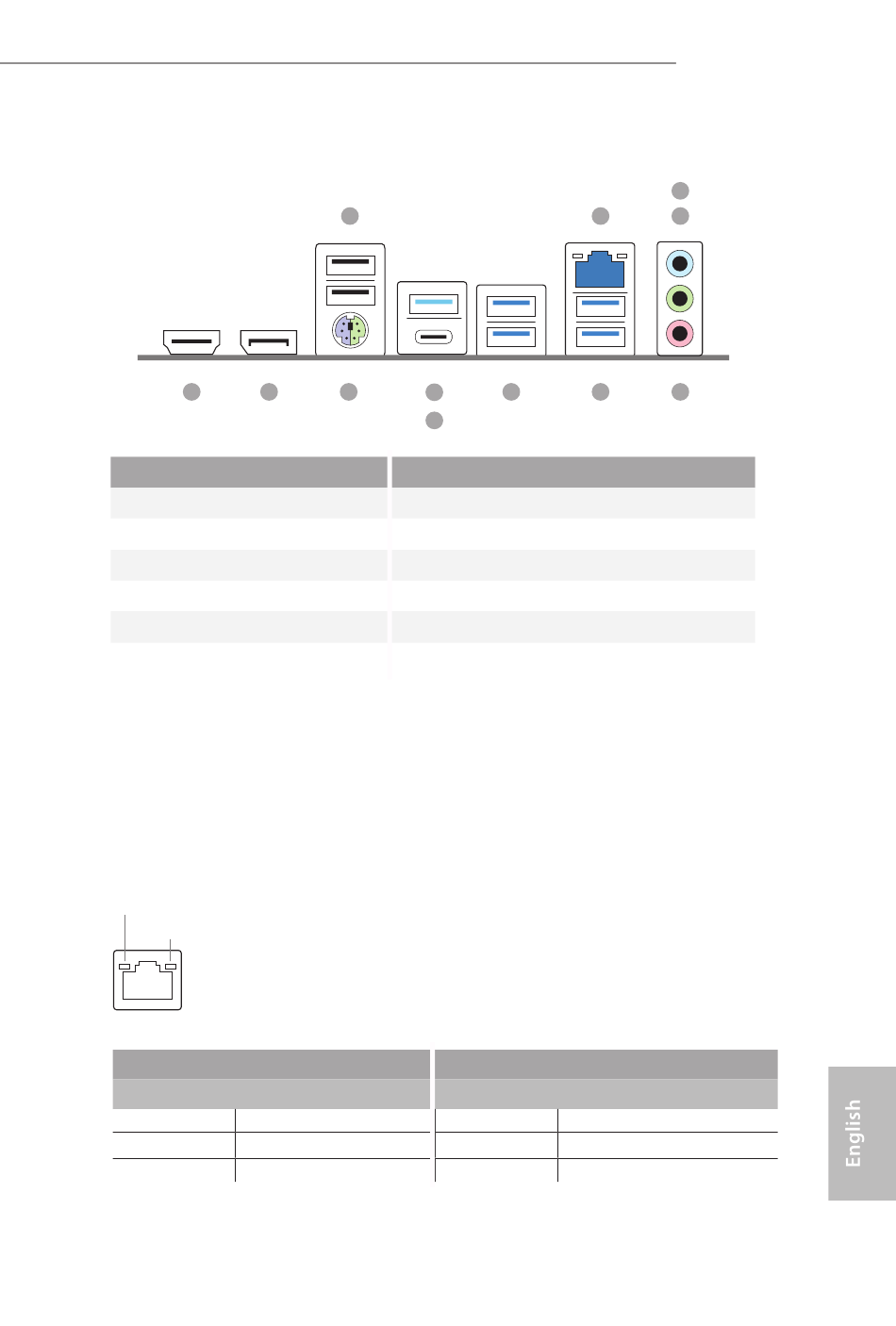

I/O Panel
12 11
No. Description
1 USB 2.0 Ports (USB12)*
2 2.5G LAN RJ-45 Port**
3 Line In (Light Blue)***
4 Front Speaker (Lime)***
5 Microphone (Pink)***
6 USB 3.2 Gen1 Ports (USB3_34)
* Please note that the USB1 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL Power
(+5VDUAL). The USB1 is optimal for connecting the USB Type speaker and headset.
USB12 are the Lightning Gaming Ports.
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
1
10 7
8
9
No. Description
7 USB 3.2 Gen1 Ports (USB3_12)
8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
10 PS/2 Mouse/Keyboard Port
11 DisplayPort 1.4
12 HDMI Port
Speed LED
Status
Off
Orange
Green
B550M PG Riptide
3
2 4
6 5
Description
10Mbps connection
100Mbps/1Gbps connection
2.5Gbps connection
3
