2.8 M.2 WiFi/BT PCIe WiFi Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key
E) supports type 2230 WiFi/BT PCIe WiFi module.
* The M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module
PCB Length: 3cm
Module Type: Type2230
A

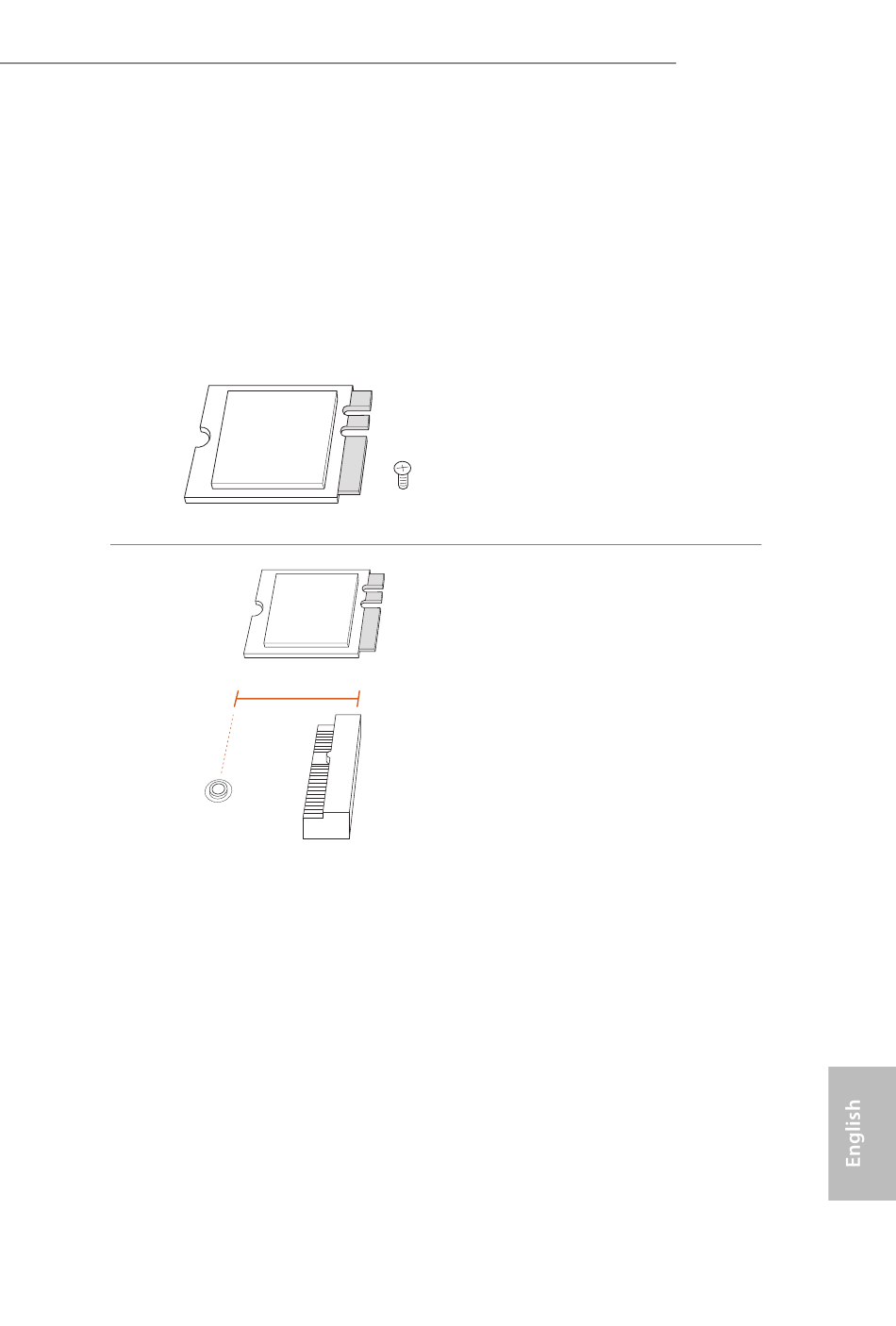

Step 1
Prepare a type 2230 WiFi/BT PCIe
WiFi module and the screw.
Step 2
Find the nut location to be used.
