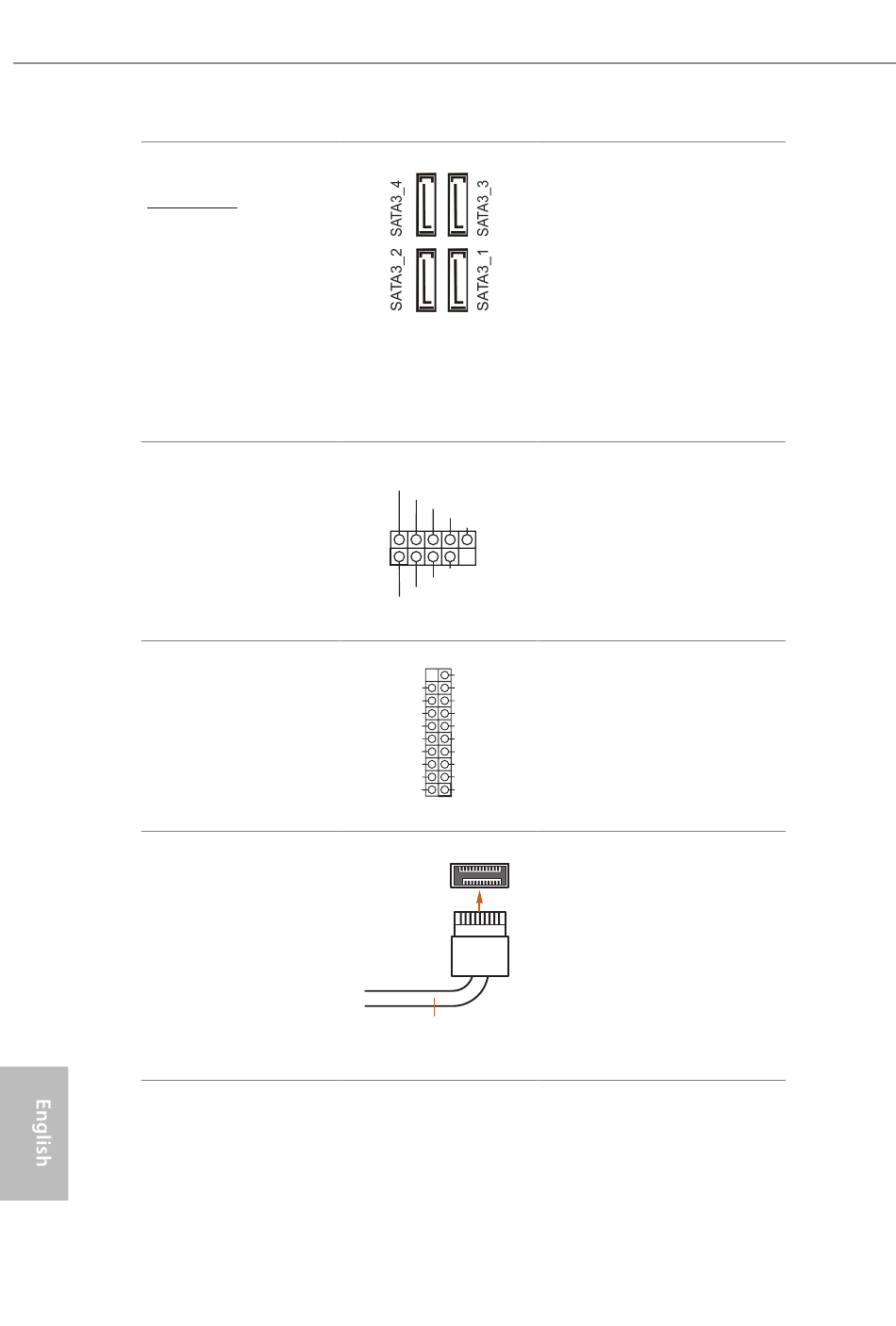

Serial ATA3 Connectors
Right Angle:
(SATA3_4:
see p.1, No. 12) (Upper)
(SATA3_3:
see p.1, No. 12) (Lower)
(SATA3_2:
see p.1, No. 13) (Upper)
(SATA3_1:
see p.1, No. 13) (Lower)
USB 2.0 Headers
(9-pin USB_3_4)
(see p.1, No. 18)
(9-pin USB_5_6)
(see p.1, No. 19)
USB 3.2 Gen1 Header
(19-pin F_USB3_1_2)
(see p.1, No. 10)
Front Panel Type C USB
3.2 Gen1 Header
(20-pin F_USB3_TC_1)
(see p.1, No. 9)
30
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PA_SSRX+ GND
IntA_PB_SSTX-
GND
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND IntA_PB_D-
IntA_PA_D- IntA_PB_D+
IntA_PA_D+ Dummy
1
USB Type-C Cable
These four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
There are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
There is one header on
this motherboard. This
USB 3.2 Gen1 header can
support two ports.
There is one Front
Panel Type C USB 3.2
Gen1 Header on this
motherboard. This header
is used for connecting a
USB 3.2 Gen1 module for
additional USB 3.2 Gen1
ports.
