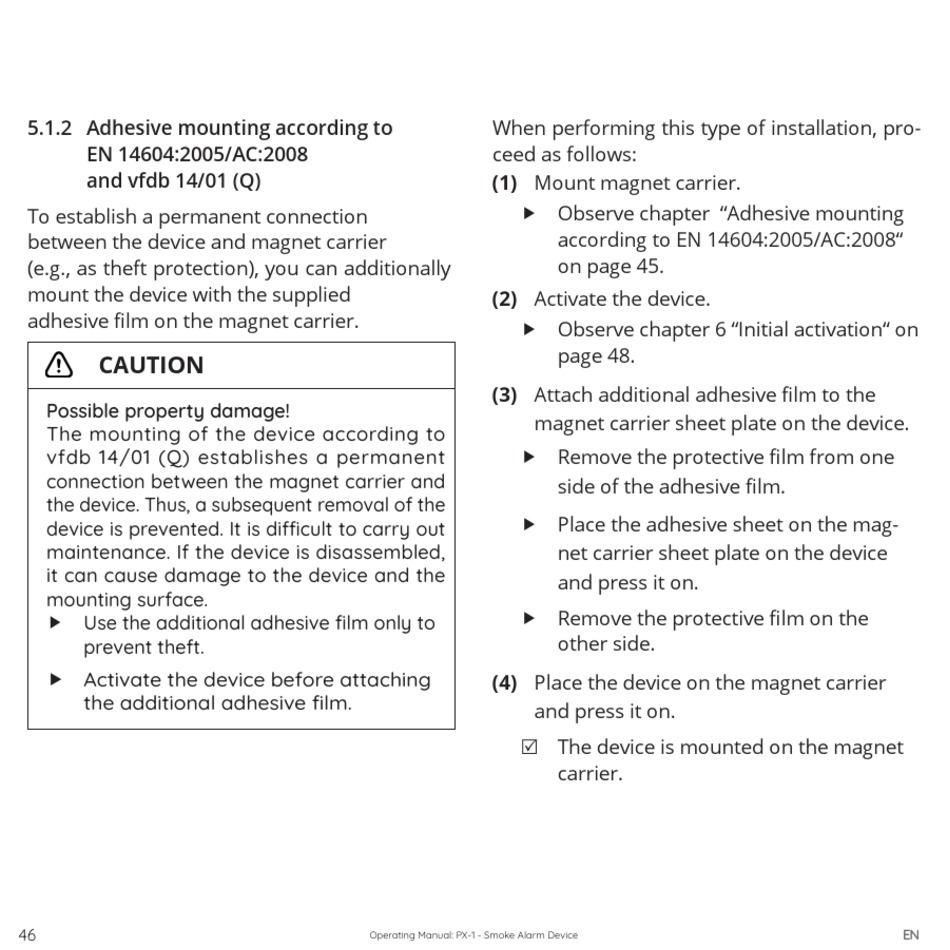

5.1.2 Adhesive mounting according to 5.1.2 Adhesive mounting according to
EN 14604:2005/AC:2008 EN 14604:2005/AC:2008
and vfdb 14/01 (Q) and vfdb 14/01 (Q)
To establish a permanent connection
between the device and magnet carrier
(e.g., as theft protection), you can additionally
mount the device with the supplied
adhesive film on the magnet carrier.
CAUTION
Possible property damage!
The mounting of the device according to
vfdb 14/01 (Q) establishes a permanent
connection between the magnet carrier and
the device. Thus, a subsequent removal of the
device is prevented. It is difficult to carry out
maintenance. If the device is disassembled,
it can cause damage to the device and the
mounting surface.
f Use the additional adhesive film only to
prevent theft.
f Activate the device before attaching
the additional adhesive film.
46
When performing this type of installation, pro-
ceed as follows:
(1) Mount magnet carrier.
f Observe chapter "Adhesive mounting
(2) Activate the device.
f Observe chapter 6 "Initial activation" on
(3) Attach additional adhesive film to the
magnet carrier sheet plate on the device.
f Remove the protective film from one
f Place the adhesive sheet on the mag-
f Remove the protective film on the
(4) Place the device on the magnet carrier
and press it on.
5 The device is mounted on the magnet
Operating Manual: PX-1 - Smoke Alarm Device
according to EN 14604:2005/AC:2008"
on page 45.
page 48.
side of the adhesive film.
net carrier sheet plate on the device
and press it on.
other side.
carrier.
