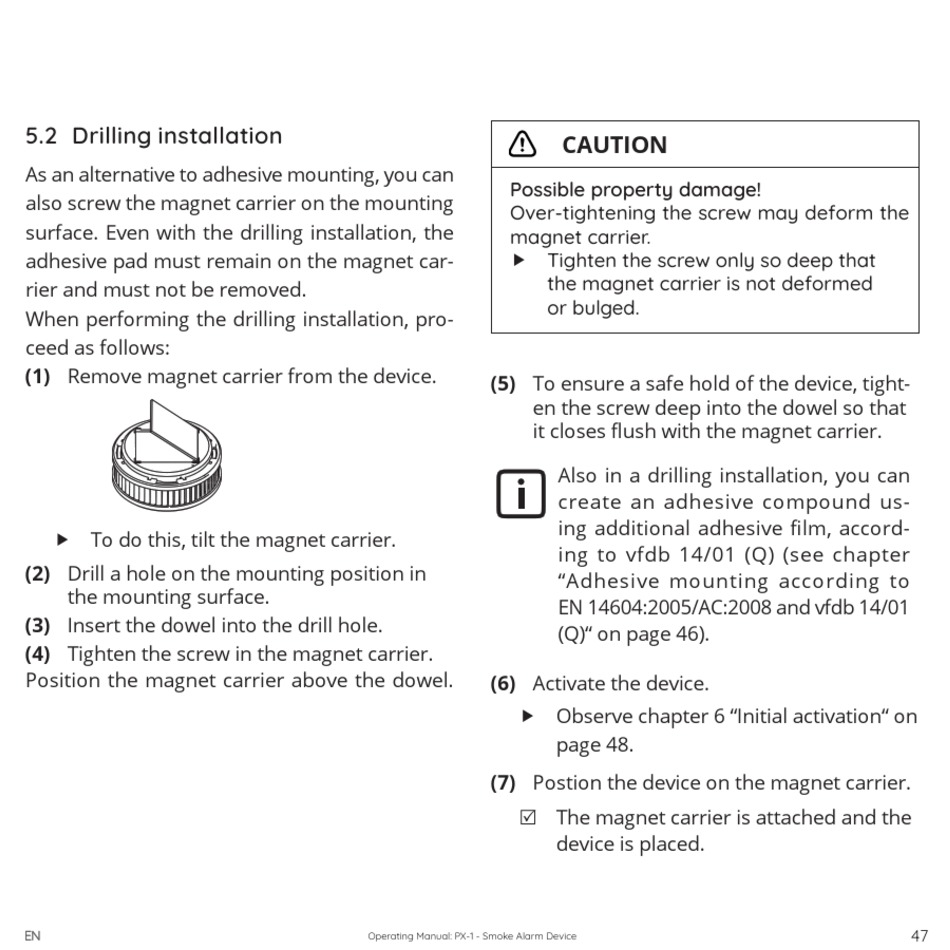

5.2 Drilling installation
As an alternative to adhesive mounting, you can
also screw the magnet carrier on the mounting
surface. Even with the drilling installation, the
adhesive pad must remain on the magnet car-
rier and must not be removed.
When performing the drilling installation, pro-
ceed as follows:
(1) Remove magnet carrier from the device.
f To do this, tilt the magnet carrier.
(2) Drill a hole on the mounting position in
the mounting surface.
(3) Insert the dowel into the drill hole.
(4) Tighten the screw in the magnet carrier.
Position the magnet carrier above the dowel.
Possible property damage!
Over-tightening the screw may deform the
magnet carrier.
f Tighten the screw only so deep that
the magnet carrier is not deformed
or bulged.
(5) To ensure a safe hold of the device, tight-
en the screw deep into the dowel so that
it closes flush with the magnet carrier.
(6) Activate the device.
f Observe chapter 6 "Initial activation" on
(7) Postion the device on the magnet carrier.
5 The magnet carrier is attached and the
Operating Manual: PX-1 - Smoke Alarm Device
CAUTION
Also in a drilling installation, you can
create an adhesive compound us-
ing additional adhesive film, accord-
ing to vfdb 14/01 (Q) (see chapter
"Adhesive mounting according to
EN 14604:2005/AC:2008 and vfdb 14/01
(Q)" on page 46).
page 48.
device is placed.
