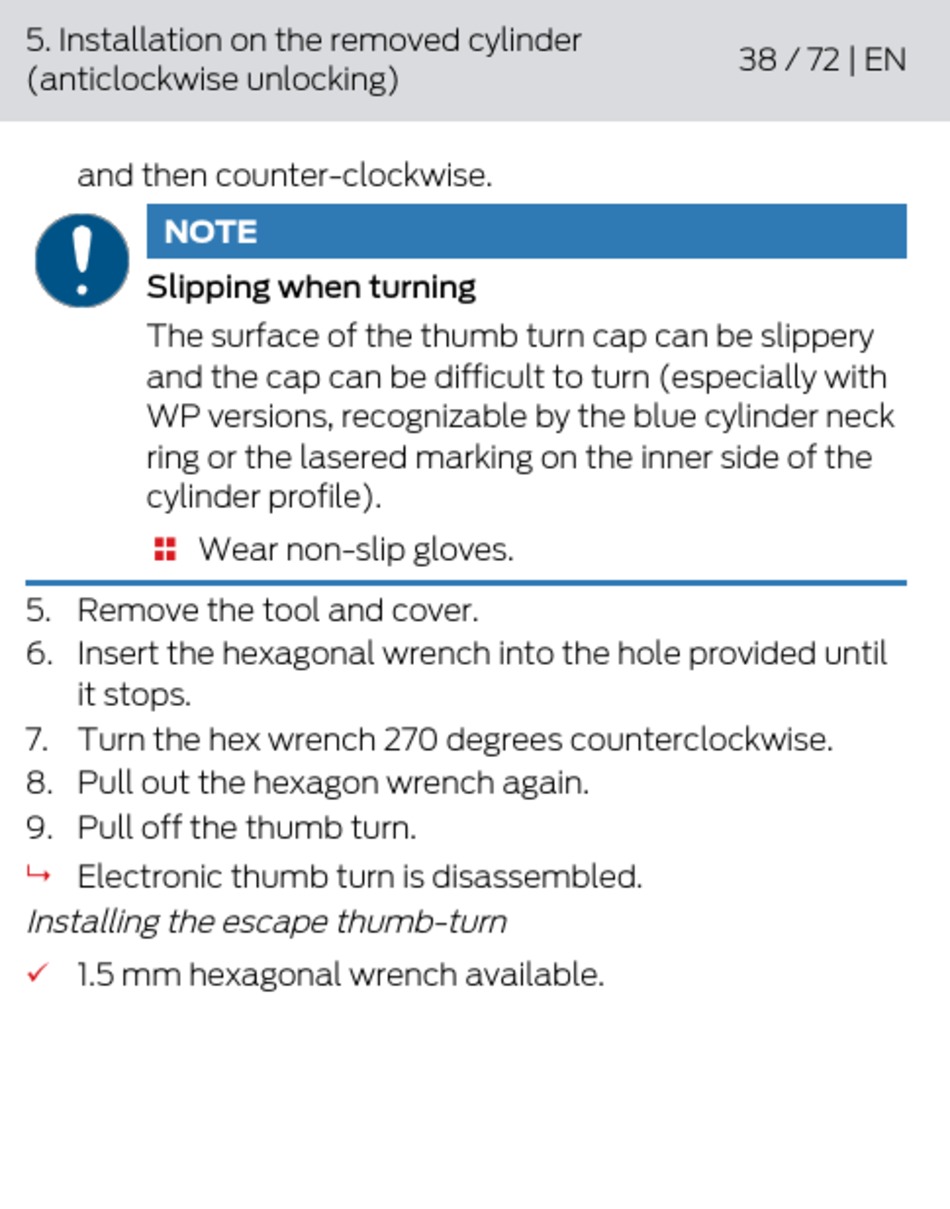

5. Installation on the removed cylinder
(anticlockwise unlocking)
and then counter-clockwise.
NOTE
Slipping when turning
The surface of the thumb turn cap can be slippery
and the cap can be difficult to turn (especially with
WP versions, recognizable by the blue cylinder neck
ring or the lasered marking on the inner side of the
cylinder profile).
Wear non-slip gloves.

5. Remove the tool and cover.
6. Insert the hexagonal wrench into the hole provided until
it stops.
7. Turn the hex wrench 270 degrees counterclockwise.
8. Pull out the hexagon wrench again.
9. Pull off the thumb turn.
Electronic thumb turn is disassembled.
9
Installing the escape thumb-turn
1.5 mm hexagonal wrench available.
ü
