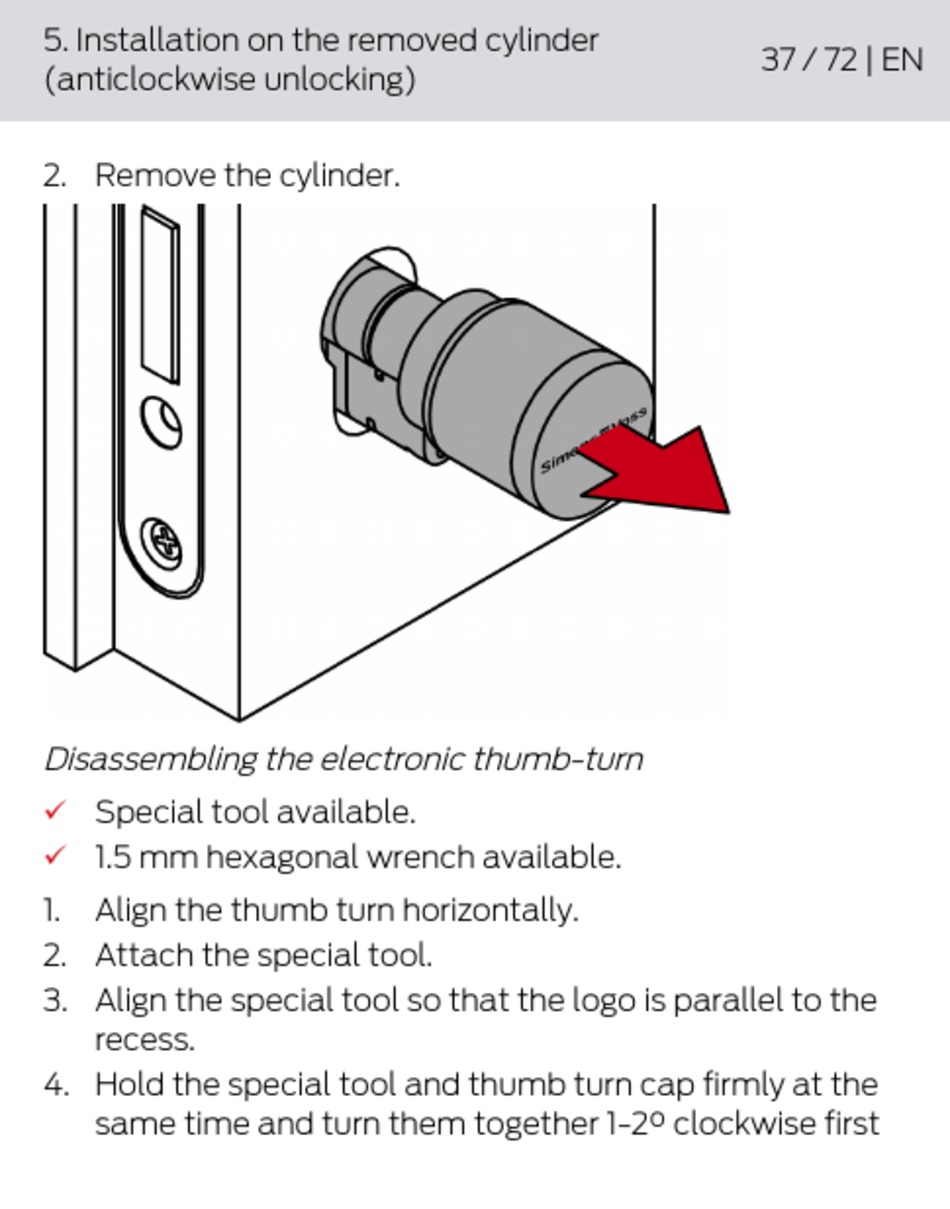

5. Installation on the removed cylinder
(anticlockwise unlocking)
2. Remove the cylinder.
Disassembling the electronic thumb-turn
Special tool available.
ü
1.5 mm hexagonal wrench available.
ü
1. Align the thumb turn horizontally.
2. Attach the special tool.
3. Align the special tool so that the logo is parallel to the
recess.
4. Hold the special tool and thumb turn cap firmly at the
same time and turn them together 1-2° clockwise first
37 / 72 | EN
