7. Interfaces

The RS232/RS485 serial interface is accessible on the rear of the unit (9 pin Sub-D
socket). See "Connections/terminal layout".
Attention
• Please take note that all pins not used on the socket must not be wired up.
• RS232 and RS485 cannot be used simultaneously.
After the device has been configured and connected to the PC network, a connection
to one of the PCs in the network can be established.
The following steps are required for this:

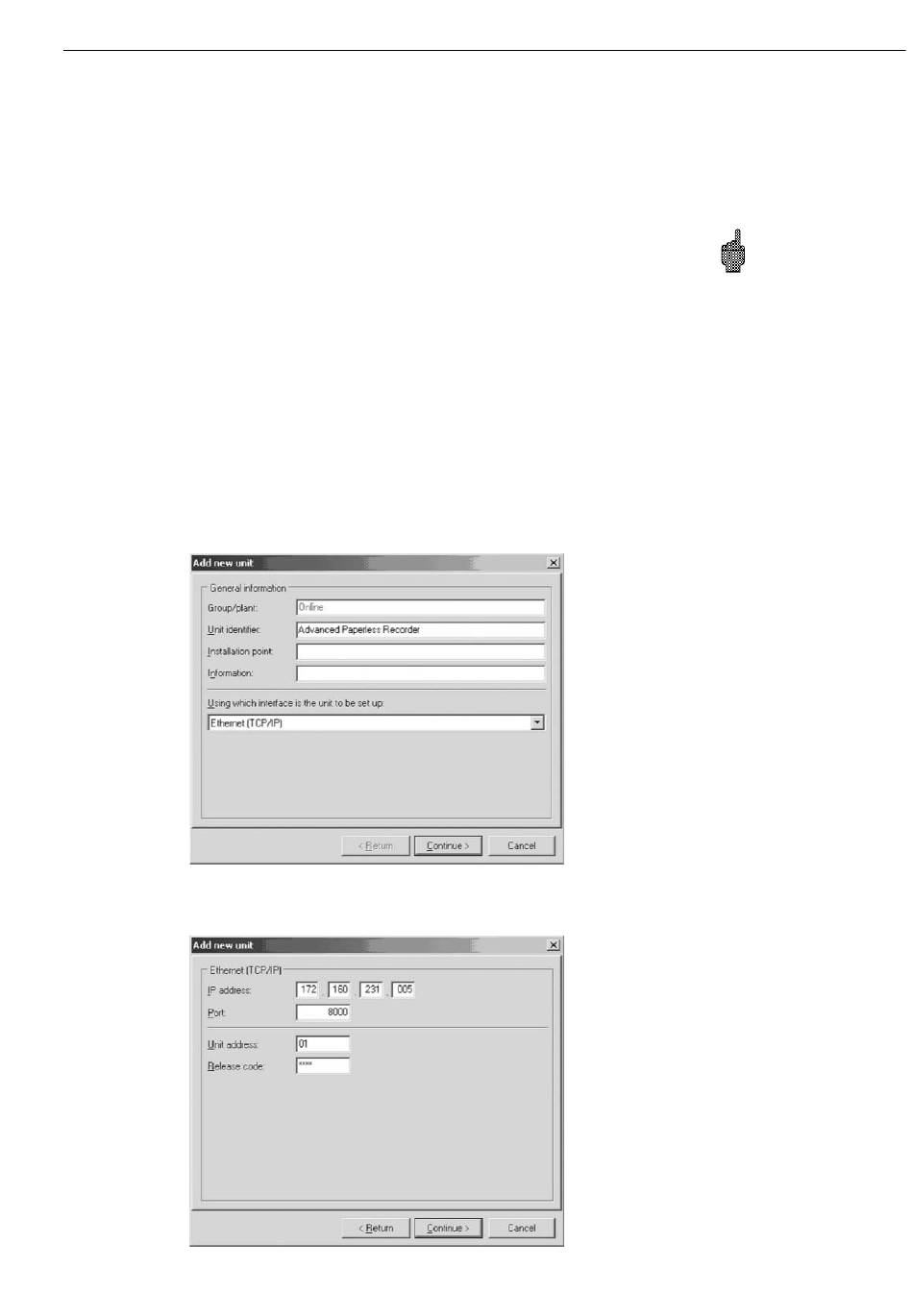

1. Install the supplied PC software on the PC via which communication is to take
place.
2. A new device now has to be registered in the database.
After the device description has been input, select how the device settings are to be
transferred. In this case, select Ethernet (TCP/IP):
3.Now enter the IP address. The port address is 8000.
Entering the device address and the release code is optional.
7. Interfaces
7.1 Serial interfaces
RS232/RS485 (only with
the digital I/O option)
7.2 Ethernet
communication in the
PC-network (option)
75
